EZ M.2 Clip II
Screw-free M.2 installation.

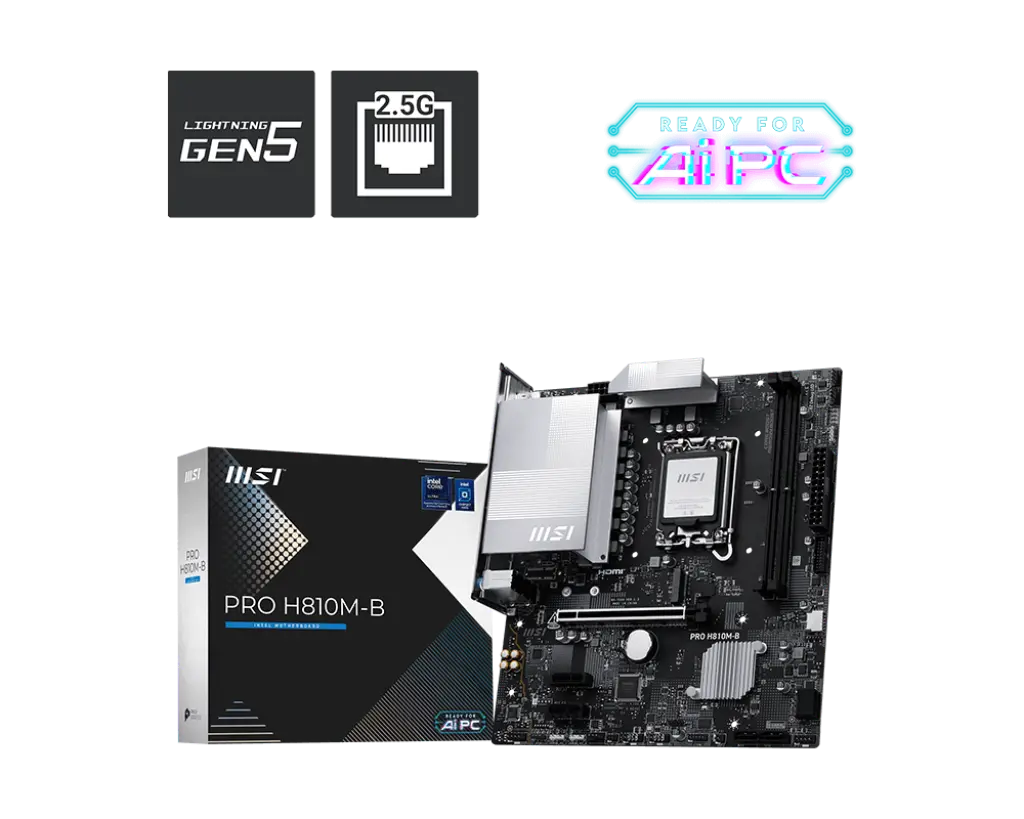

Motherboard MSI PRO H810M-B
msi
PRO H810M-B
INTEL H810 / LGA 1851
INTEL H810 / LGA 1851
MSI PRO SERIES
A silver finish. A modern Intel foundation.
LGA 1851
CORE ULTRA SERIES 2
DDR5
UP TO 128GB
PCIe 5.0
GRAPHICS EXPANSION
2.5G LAN
WIRED CONNECTIVITY
EZ DIY
Direct 6 phases
One-click optimisation
Frozr Design
2.5G LAN
Click BIOS X
BUSINESS ELEGANCE
Built for your
next chapter.
A coordinated design for white or black builds.
PRO H810M-B
Business elegance.
Pre-installed I/O
Extended heatsink
2.5G LAN
PCIe 5.0
DDR5
EZ PCIe Clip II
A smarter setup.
AI Engine
Application-based optimisation.
AI LAN Manager
Prioritise network traffic.
Frozr AI Cooling
Temperature-based fan control.
MSI Center
Compatible system tools.
EZ DIY
Clip II Remover
Reposition the M.2 clip.
EZ PCIe Clip II
One-finger graphics card release.
Pre-installed I/O
Simpler case installation.
EZ Mounting
Marked mounting zones.
Driver Installer
Detect compatible drivers online.
EZ Debug LEDs
Identify boot and memory issues.
EZ Identify
Clearer header and connection markings.
EZ Optimisation
Compatible MSI Center tools.
ULTRA PERFORMANCE
Core Boost
Optimised CPU power delivery.
Load-line Calibration
Voltage control for system tuning.
Overvoltage Protection
Protection for key components.
DDR5 Memory
Two DDR5 slots with Memory Boost.
Memory Extension Mode
Preset memory parameter tuning.
HARDWARE PROTECTION
TVS
Transient-voltage suppression.
Solid Pin Design
Solid-pin power connectors.
Stainless Steel I/O
Corrosion-resistant I/O shielding.
Overcurrent Protection
Protection for important circuits.
Grounding Structure
Power-phase grounding design.
FROZR DESIGN
Cooling Overview
Extended and VRM heatsinks with thermal pads.
System Cooling
One CPU fan and two system fan headers.
Cooling Profiles
Save fan profiles.
Smart / Manual Fan
Adjust fan behaviour.
User Scenarios
Choose compatible cooling settings.
Frozr AI Cooling
Respond to CPU and GPU temperatures.
Auto Detect Fan
Automatic DC/PWM detection.
TRILINK
2.5G LAN
Realtek 8125 wired networking.
AI LAN Manager
Manage application bandwidth priorities.
M.2 Storage
One PCIe 4.0 x4 M.2 slot.
Lightning Gen 5
PCIe 5.0 x16 graphics slot.
Front USB Type-C
10Gbps through the front-panel header.
EXPERIENCE
AUDIO BOOST
Audio Processor
Realtek ALC897, 7.1-channel HD audio.
Audio Capacitors
Audio Jacks
Isolated Signal
De-pop Protection
Audio Connector Structure
Illustrative MSI audio design.
MYSTIC LIGHT
Addressable RGB
Compatible 5V addressable RGB devices.
RGB
Compatible 12V RGB devices.
Ambient Link
Compatible lighting synchronisation.
CLICK BIOS X
EZ Mode
Advanced Mode
XMP
Hardware Monitor
M-Flash
U-Key
Profile
Favorites
Search
MSI CENTER & UTILITIES
AI Engine
Mystic Light
True Color
User Scenario
Hardware Monitoring
Cooling Wizard
System Diagnosis
AIDA64
Norton 360
Software offers and availability may vary.
REAR CONNECTIONS
Connect your workspace.
DisplayPort
HDMI
USB 5Gbps
USB 2.0
2.5G LAN
Audio
PRO H810M-B
Technical specifications.
Platform & memory
- Chipset / socket
- Intel H810 / LGA 1851
- CPU support
- Intel Core Ultra processors (Series 2)
- Memory
- 2 × DDR5 UDIMM / up to 128GB / dual channel
- Memory speed
- DDR5 4800–7200 MT/s; CPU and configuration dependent
- Memory features
- XMP 3.0 / CUDIMM support / non-ECC unbuffered
Expansion & storage
- Expansion slots
- 1 × PCIe 5.0 x16 / 2 × PCIe 4.0 x1
- M.2
- 1 × PCIe 4.0 x4 / 2260 and 2280 SSDs
- SATA
- 4 × SATA 6Gb/s
Connectivity & audio
- LAN
- Realtek 8125 / 2.5Gbps Ethernet
- Rear USB
- 2 × USB-A 5Gbps / 4 × USB 2.0
- Front USB support
- 1 × USB-C 10Gbps / 2 × USB-A 5Gbps / 4 × USB 2.0
- Video outputs
- HDMI 2.1 / DisplayPort 1.4 / up to 4K 60Hz*
- Audio
- Realtek ALC897 / 7.1-channel HD audio
Internal connections
- Power
- 1 × ATX power / 1 × CPU power
- Front panel
- 2 × JFP / 1 × front audio / 1 × chassis intrusion
- Other headers
- 1 × tuning controller (JDASH) / 1 × TPM, supporting TPM 2.0
Board details
- Form factor
- Micro-ATX / 220 × 243.84mm
- Fan headers
- 1 CPU / 2 system
- Lighting headers
- 3 addressable V2 RGB / 1 RGB
- Diagnostics
- 4 EZ Debug LEDs / 1 EZ Memory Detection LED
- Operating system
- Windows 11 64-bit
*Display outputs require a CPU with integrated graphics. Memory support and speed depend on the processor, modules and BIOS. Technology illustrations and software screens may show other MSI platforms; they demonstrate the features presented on MSI’s overview.
