See the detail.
4K HDMI output with simultaneous HDMI and VGA display support.

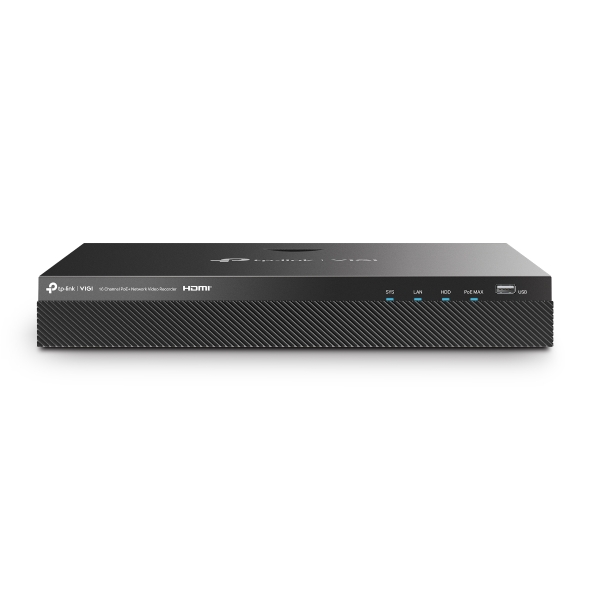

TP-Link 16 Channel PoE+ Network Video Recorder VIGI NVR2016H-16P(UN)
VIGI
by TP-Link
PROFESSIONAL VIDEO SURVEILLANCE
16 CHANNEL PoE+ NETWORK VIDEO RECORDER
VIGI
NVR2016H-16P
More coverage.
One recording hub.
Bring camera power, live viewing and recording together in one system.
%5D%20TP-Link%2016%20Channel%20PoE+%20Network%20Video%20Recorder%20VIGI%20NVR2016H-16P(UN)?unique=f253bc9)
?unique=a5c671a)
?unique=a5c671a)
16
CAMERA INPUT CHANNELS
90W
TOTAL PoE BUDGET
4K
HDMI OUTPUT
H.265+
VIDEO COMPRESSION
A WIDER VIEW OF YOUR BUSINESS
Keep your spaces
in sight.
Connect up to sixteen IP cameras and bring your surveillance feeds together in one recording system. View live footage locally or access your system remotely.
Make space for more.
H.265+ compression and two SATA interfaces for local video storage.
Find what matters.
Review recordings with regular, event and tag playback modes.
POWER + VIDEO
One cable.
A simpler connection.
Sixteen PoE+ ports supply compatible cameras with data and power. Share a total 90W power budget, with up to 30W available per port.
16 × PoE+ / IEEE 802.3af/at
CONNECTIONS, CONSIDERED
Built for
your setup.
Dedicated camera ports, HDMI and VGA display outputs, audio connections and Gigabit Ethernet bring the essentials together in one compact recorder.
LOCAL OR REMOTE
Stay connected
to your cameras.
Access your system through the VIGI app or client, with ONVIF Profile S support for compatible cameras.
VIGI App
Android & iOS
VIGI Client
Remote monitoring
ONVIF Profile S
Compatible IP cameras
Two-way audio
Compatible audio equipment required
TECHNICAL DETAILS
VIGI NVR2016H-16P
Video & recording
- IP camera inputs
- 16 channels
- Bandwidth
- 160Mbps incoming / 160Mbps outgoing
- Video compression
- H.265+ / H.265 / H.264+ / H.264
- HDMI output
- Up to 3840 × 2160 at 30Hz
- VGA output
- Up to 1920 × 1080 at 60Hz
- Display outputs
- Simultaneous HDMI and VGA
- Playback
- Up to 16 simultaneous channels*
- Decoding
- 10 × 1080p at 25fps; 2 × 8MP, 4 × 5MP, 5 × 4MP or 6 × 3MP at 30fps
- Recording modes
- Manual / scheduled / motion detection
PoE, storage & interfaces
- PoE camera ports
- 16 × 10/100Mbps RJ45
- PoE standards
- IEEE 802.3af/at
- Total PoE budget
- 90W
- Maximum power per port
- 30W, within the total 90W budget
- Storage
- 2 × SATA interfaces / up to 16TB per HDD; drives sold separately
- Network uplink
- 1 × Gigabit RJ45 Ethernet
- USB
- Front USB 2.0 / rear USB 3.0
- Audio
- 1 × RCA input / 1 × RCA output
- Other connections
- HDMI / VGA / eSATA / 6 alarm inputs / 4 alarm outputs
Physical details
- Dimensions
- 330 × 285 × 45mm
- Power supply
- 53.5V DC / 2.43A
- Operating temperature
- NVR: −10°C to 55°C / power adapter: 0°C to 40°C
Specifications shown follow hardware V2 of the official product page. V1 bandwidth, decoding, USB and storage limits differ; confirm the hardware revision on your unit. *Simultaneous playback depends on total decoding load; fewer channels may play when combined resolution exceeds 16MP. HDDs are not included. Audio and alarm functions require compatible equipment.
