RESOLUTION
See the smaller details.
Capture video at up to 2304 × 1296 resolution.

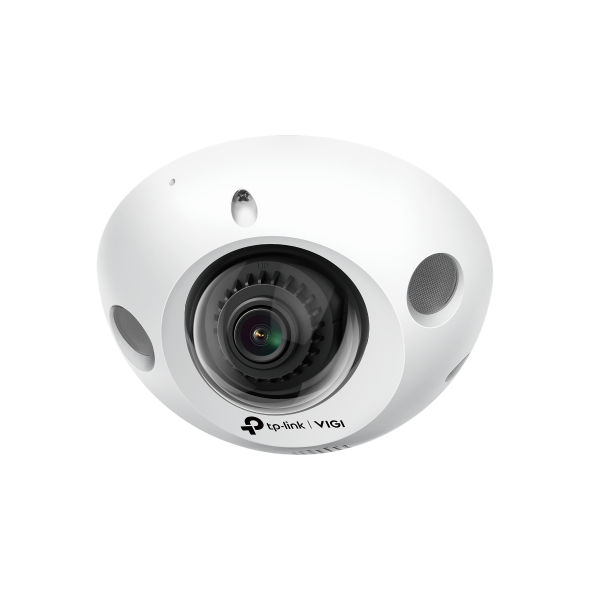

TP-Link 3MP Mini Dome Network Camera VIGI C230I Mini(2.8mm)(UN)
VIGI
by TP-Link
PROFESSIONAL VIDEO SURVEILLANCE
3MP IR MINI DOME NETWORK CAMERA
Compact camera.
A wider perspective.
VIGI C230I Mini
2.8mm · UN
Discreet monitoring for the spaces that matter.
(UN)%5D%20TP-Link%203MP%20Mini%20Dome%20Network%20Camera%20VIGI%20C230I%20Mini(2.8mm)(UN)?unique=1a019f0)
-MIini-1.0_02_normal_20221104085926w%20(1).webp?unique=3dff510)
3MP
2304 × 1296
2.8mm
FIXED LENS
30m
MAXIMUM IR RANGE
IK08
IMPACT RESISTANCE
SMALL FOOTPRINT
Designed to blend in.
Built to keep watch.
A compact dome for corridors, lifts, shops and small warehouses.
Wide-angle view
Smart detection
ONVIF
-MIini-1.0_01_normal_20221104085901e.webp?unique=3dff510)
A CLEARER PICTURE
More detail. A broader view.
-MIini-1.0_06_normal_20221104090455d.webp?unique=3dff510)
2.8mm FIXED LENS
Cover more of your space.
106.9° horizontal and 127.9° diagonal field of view.
-MIini-1.0_09_normal_20221104090616x.webp?unique=3dff510)
EFFICIENT RECORDING
Make storage go further.
H.265+ helps reduce storage and bandwidth requirements. Savings vary with recording conditions.
INTELLIGENT MONITORING
Focus on what matters.
HUMAN & VEHICLE
More relevant alerts.
Distinguish people and vehicles from other objects.
SMART DETECTION
Watch your boundaries.
Monitor motion, intrusion, line crossing, tampering and abandoned or removed objects.
-MIini-1.0_05_normal_20221104090440c.webp?unique=3dff510)
LISTEN + RESPOND
A voice when needed.
A built-in microphone and speaker support two-way audio.
-MIini-1.0_07_normal_20221104090510p.webp?unique=3dff510)
-MIini-1.0_08_normal_20221104090525e.webp?unique=3dff510)
IK08 RATED
Protection around
the lens.
An impact-resistant dome helps protect the camera in accessible installation locations.
CONNECTED SECURITY
Manage your view.
Choose your storage.
Access through VIGI software or a compatible NVR. Record locally to a microSD card.
VIGI App
Remote access
Security Manager
PC management
microSD
Up to 512GB; sold separately
ONVIF Profile S
Compatible systems
TECHNICAL DETAILS
VIGI C230I Mini · 2.8mm
Camera & lens
- Sensor
- 1/2.8″ progressive scan CMOS
- Resolution
- 3MP / 2304 × 1296
- Lens
- 2.8mm fixed / F1.6
- Field of view
- 106.9° horizontal / 56.9° vertical / 127.9° diagonal
- Infrared range
- Up to 30m
- Day/night
- IR-cut filter
Video & audio
- Main-stream compression
- H.265+ / H.265 / H.264+ / H.264
- Frame rate
- Up to 25fps at 50Hz / 30fps at 60Hz
- Rotated video
- 90°/270° rotation: up to 20fps
- Image enhancement
- DWDR / 3D DNR / BLC / HLC / Smart IR
- Audio
- Built-in microphone and speaker / two-way audio
- Corridor mode
- 9:16 image orientation
Network, power & storage
- Ethernet
- 1 × 10/100Mbps RJ45
- Power
- 12V DC ±5% / PoE 802.3af/at
- Maximum consumption
- 7.5W DC / 8.5W PoE
- Storage
- microSD up to 512GB; card sold separately
- Compatibility
- ONVIF Profile S
- Reset button
- Yes
Physical details
- Impact protection
- IK08
- Dimensions
- 114 × 58 × 114mm
- Net weight
- 0.23kg
- Operating temperature
- −30°C to 60°C
- Included
- Camera / mounting accessories / quick start guide
Features may vary by hardware revision and firmware. IR performance depends on installation and surroundings. Network access is required for remote monitoring.
VIGI
by TP-Link
PROFESSIONAL VIDEO SURVEILLANCE
3MP IR MINI DOME NETWORK CAMERA
Compact camera.
A wider perspective.
VIGI C230I Mini
2.8mm · UN
Discreet monitoring for the spaces that matter.
3MP
2304 × 1296
2.8mm
FIXED LENS
30m
MAXIMUM IR RANGE
IK08
IMPACT RESISTANCE
SMALL FOOTPRINT
Designed to blend in.
Built to keep watch.
A compact dome for corridors, lifts, shops and small warehouses.
Wide-angle view
Smart detection
ONVIF
A CLEARER PICTURE
More detail. A broader view.
RESOLUTION
See the smaller details.
Capture video at up to 2304 × 1296 resolution.
2.8mm FIXED LENS
Cover more of your space.
106.9° horizontal and 127.9° diagonal field of view.
EFFICIENT RECORDING
Make storage go further.
H.265+ helps reduce storage and bandwidth requirements. Savings vary with recording conditions.
INTELLIGENT MONITORING
Focus on what matters.
HUMAN & VEHICLE
More relevant alerts.
Distinguish people and vehicles from other objects.
SMART DETECTION
Watch your boundaries.
Monitor motion, intrusion, line crossing, tampering and abandoned or removed objects.
LISTEN + RESPOND
A voice when needed.
A built-in microphone and speaker support two-way audio.
IK08 RATED
Protection around
the lens.
An impact-resistant dome helps protect the camera in accessible installation locations.
CONNECTED SECURITY
Manage your view.
Choose your storage.
Access through VIGI software or a compatible NVR. Record locally to a microSD card.
VIGI App
Remote access
Security Manager
PC management
microSD
Up to 512GB; sold separately
ONVIF Profile S
Compatible systems
TECHNICAL DETAILS
VIGI C230I Mini · 2.8mm
Camera & lens
- Sensor
- 1/2.8″ progressive scan CMOS
- Resolution
- 3MP / 2304 × 1296
- Lens
- 2.8mm fixed / F1.6
- Field of view
- 106.9° horizontal / 56.9° vertical / 127.9° diagonal
- Infrared range
- Up to 30m
- Day/night
- IR-cut filter
Video & audio
- Main-stream compression
- H.265+ / H.265 / H.264+ / H.264
- Frame rate
- Up to 25fps at 50Hz / 30fps at 60Hz
- Rotated video
- 90°/270° rotation: up to 20fps
- Image enhancement
- DWDR / 3D DNR / BLC / HLC / Smart IR
- Audio
- Built-in microphone and speaker / two-way audio
- Corridor mode
- 9:16 image orientation
Network, power & storage
- Ethernet
- 1 × 10/100Mbps RJ45
- Power
- 12V DC ±5% / PoE 802.3af/at
- Maximum consumption
- 7.5W DC / 8.5W PoE
- Storage
- microSD up to 512GB; card sold separately
- Compatibility
- ONVIF Profile S
- Reset button
- Yes
Physical details
- Impact protection
- IK08
- Dimensions
- 114 × 58 × 114mm
- Net weight
- 0.23kg
- Operating temperature
- −30°C to 60°C
- Included
- Camera / mounting accessories / quick start guide
Features may vary by hardware revision and firmware. IR performance depends on installation and surroundings. Network access is required for remote monitoring.
