NVMe 1.4 and Host Memory Buffer support responsive storage access.
Compact storage80mm
Small footprint. More possibilities.
M.2 2280 format for compatible PCIe-equipped computers.
Behind the performance
Considered at every step.
3D NAND, SLC caching, LDPC error correction and end-to-end data protection.
SP ToolBox
Know your drive.
View drive information, temperature, usage and diagnostics.
Technical specifications
The details.

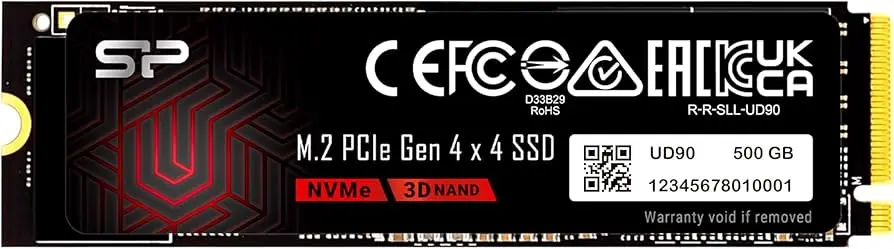

Model
Silicon Power UD90 500GB
Part number
SP500GBP44UD9005
Capacity
500GB
Interface / protocol
PCIe Gen4 x4 / NVMe 1.4
Form factor
M.2 2280
Maximum sequential read
5000MB/s
Maximum sequential write
2700MB/s
Dimensions
22 × 80 × 3.5mm
Weight
8g
Operating temperature
0–70°C
Actual performance depends on hardware, software and interface mode.
Requires a PCIe-compatible M.2 slot and NVMe-capable operating system.
Product imagery represents the UD90 series.
SILICON POWER
UD90
500GB
M.2 2280 · PCIe Gen4 x4 · NVMe
500GBCapacity
5000MB/sRead up to
2700MB/sWrite up to
Gen4 x4PCIe interface
Keep your momentum
Ready for your next idea.
NVMe 1.4 and Host Memory Buffer support responsive storage access.
Compact storage80mm
Small footprint. More possibilities.
M.2 2280 format for compatible PCIe-equipped computers.
Behind the performance
Considered at every step.
3D NAND, SLC caching, LDPC error correction and end-to-end data protection.
SP ToolBox
Know your drive.
View drive information, temperature, usage and diagnostics.
Technical specifications
The details.
Model
Silicon Power UD90 500GB
Part number
SP500GBP44UD9005
Capacity
500GB
Interface / protocol
PCIe Gen4 x4 / NVMe 1.4
Form factor
M.2 2280
Maximum sequential read
5000MB/s
Maximum sequential write
2700MB/s
Dimensions
22 × 80 × 3.5mm
Weight
8g
Operating temperature
0–70°C
Actual performance depends on hardware, software and interface mode.
Requires a PCIe-compatible M.2 slot and NVMe-capable operating system.
Product imagery represents the UD90 series.
