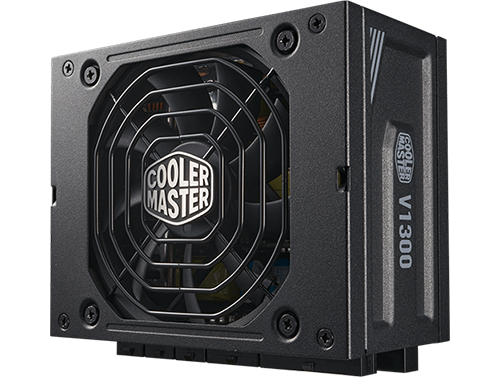

Power Supply Cooler Master V SFX 1300W Platinium (MPZ-D001-SFBP-BUK)
V SFX Platinum 1300
Cooler Master V SFX Platinum 1300 (MPZ-D001-SFBP-BUK) delivers extraordinary 1300-watt power density from a compact SFX enclosure. ATX 3.0 support, 80 PLUS Platinum EU 230V efficiency, fully modular cabling, 100% Japanese capacitors, advanced full-bridge LLC thermal engineering and a 92mm Fluid Dynamic Bearing fan create a powerful platform for enthusiast small-form-factor systems.
Industry-leading power density for compact enthusiast systems
Delivers an exceptional 1300 watts from a compact SFX enclosure.
Measures only 100 × 125 × 63.5mm for high-density compact builds.
Designed around modern ATX 3.0 power requirements for high-performance hardware.
Platinum-rated 230V efficiency helps minimize energy loss and excess heat.
Cooler Master specifies at least 94% efficiency at typical load.
Includes a dedicated 12+4-pin 12VHPWR connection for modern graphics hardware.
Use only the cables required by the build for cleaner routing.
Uses high-quality Japanese capacitors to improve efficiency and ripple control.
Fluid Dynamic Bearing cooling supports reliable operation in the compact chassis.
Designed for operation across an ambient range reaching up to 50°C.
Advanced full-bridge LLC engineering supports efficient compact power conversion.
Includes OPP, OVP, OTP, OCP, SCP, UVP, surge and inrush protection.
1300 watts of Platinum-rated performance packed into a true SFX enclosure with ATX 3.0 support, 12VHPWR connectivity and advanced thermal engineering.
V SFX Platinum 1300 pushes power density to an extreme level for compact enthusiast systems. Cooler Master uses component miniaturization, flat copper wire on the DC-DC choke, flat transformer piling, an aluminum dissipation structure around the full-bridge LLC stage and EMI-inhibited amorphous metal materials to maintain thermal performance inside the 100 × 125 × 63.5mm enclosure. Fully modular cabling and modern GPU power connectivity make the PSU suitable for powerful small-form-factor builds without giving up high output.
Cooler Master V SFX Platinum 1300
The Cooler Master V SFX Platinum 1300 (MPZ-D001-SFBP-BUK) is a 1300W fully modular SFX power supply from the V SFX Series. The manufacturer lists the ATX 3.0 platform under the MPZ-D001-SFBP-B** family and specifies SFX 12V Version 3.42, Active PFC, a 200–240V AC input range, 7.7A maximum input current and 50–60Hz input frequency. Efficiency is rated at ≥94% under typical load with an 80 PLUS Platinum EU 230V rating. Cooling is handled by a 92mm Fluid Dynamic Bearing fan. The enclosure measures 100 × 125 × 63.5mm, operating temperature is 0–50°C, hold-up time is ≥16ms at 60% load, and MTBF exceeds 100,000 hours. The modular connector system includes motherboard, dual CPU, PCIe, 12VHPWR, SATA and peripheral connectivity.
