- Power Supply Cooler Master SFX 750W Gold (MPY-7501-SFHAGV-EU)
Power Supply Cooler Master SFX 750W Gold (MPY-7501-SFHAGV-EU)
https://www.compuspeed.mu/shop/ps-cm-sfx-750w-7501-sfhagv-eu-power-supply-cooler-master-sfx-750w-gold-mpy-7501-sfhagv-eu-3290 https://www.compuspeed.mu/web/image/product.template/3290/image_1920?unique=c950c36Terms and Conditions
Shipping: 2-6 Business Days
V750 SFX Gold
750W Full-Modular 80 PLUS Gold SFX Power Supply

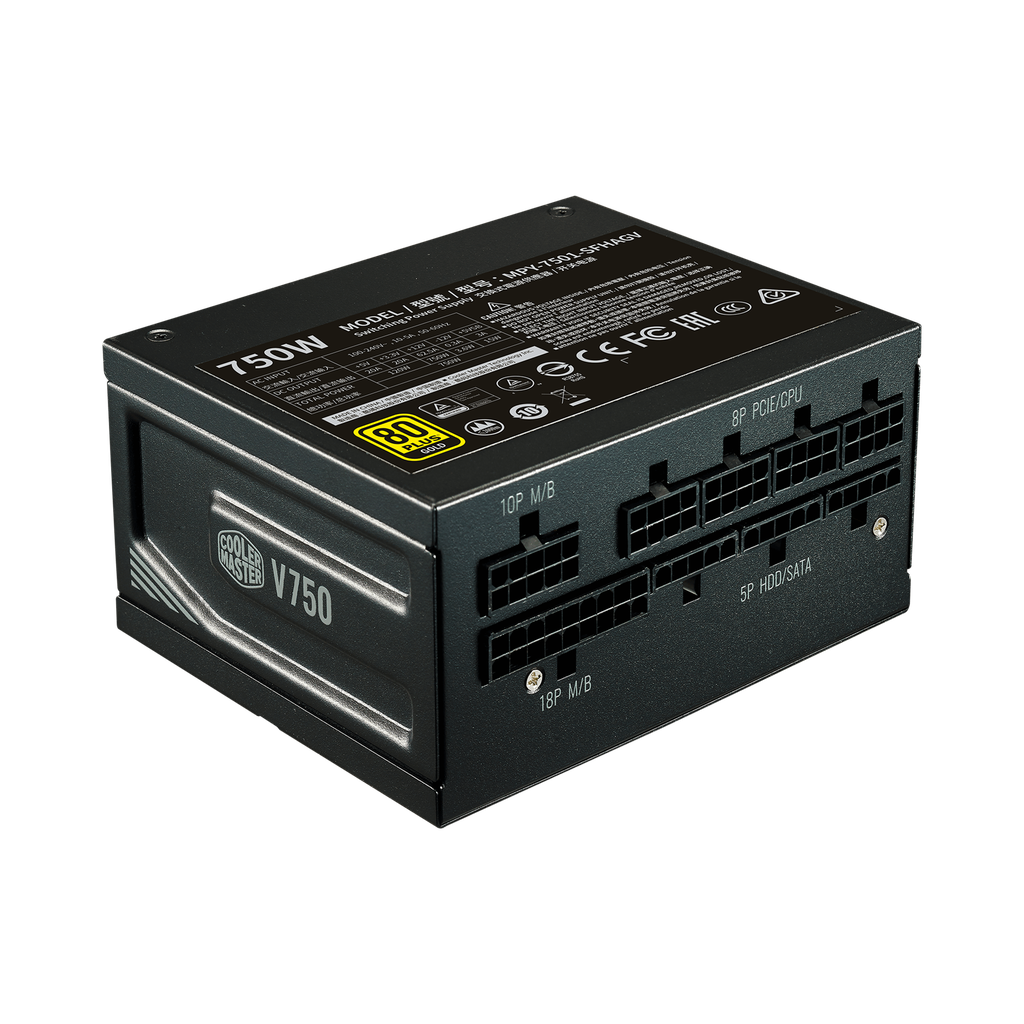

Deliver high-end desktop power in a compact form factor with the Cooler Master V750 SFX Gold. Designed for small-form-factor and Mini-ITX systems, this 750 W SFX power supply combines 80 PLUS Gold efficiency, fully modular cabling, a quiet 92 mm Fluid Dynamic Bearing fan, high-current PCIe cabling and comprehensive electrical protection. The compact chassis measures only 100 × 125 × 63.5 mm, while the included SFX-to-ATX mounting bracket expands compatibility to larger ATX-style PC cases.
V750 SFX GOLD · FULL MODULAR
92MM FDB FAN · MODULAR CONNECTIONS
INCLUDED SFX-TO-ATX BRACKET
750W · 80 PLUS GOLD · SFX
750 watts of power in a true SFX chassis.
Desktop-class output for compact gaming systems.
The V750 SFX Gold provides 750 W continuous rated output in a chassis designed for compact SFX-compatible cases. Its powerful +12 V rail is rated for 62.5 A / 750 W, supporting demanding CPUs and graphics cards.
High efficiency means less wasted energy and heat.
Approximately 90% efficiency at typical load.
80 PLUS Gold certification helps reduce wasted electrical energy, lowering heat generation and reducing the workload placed on the cooling fan.
Designed specifically for compact PC builds.
Use the compact power supply in larger cases too.
Expand compatibility beyond Mini-ITX.
Cooler Master includes an SFX-to-ATX mounting bracket so the V750 SFX Gold can be installed in compatible cases designed for standard ATX power supplies.
Connect only the cables your system actually needs.
Less cable clutter means more room for airflow.

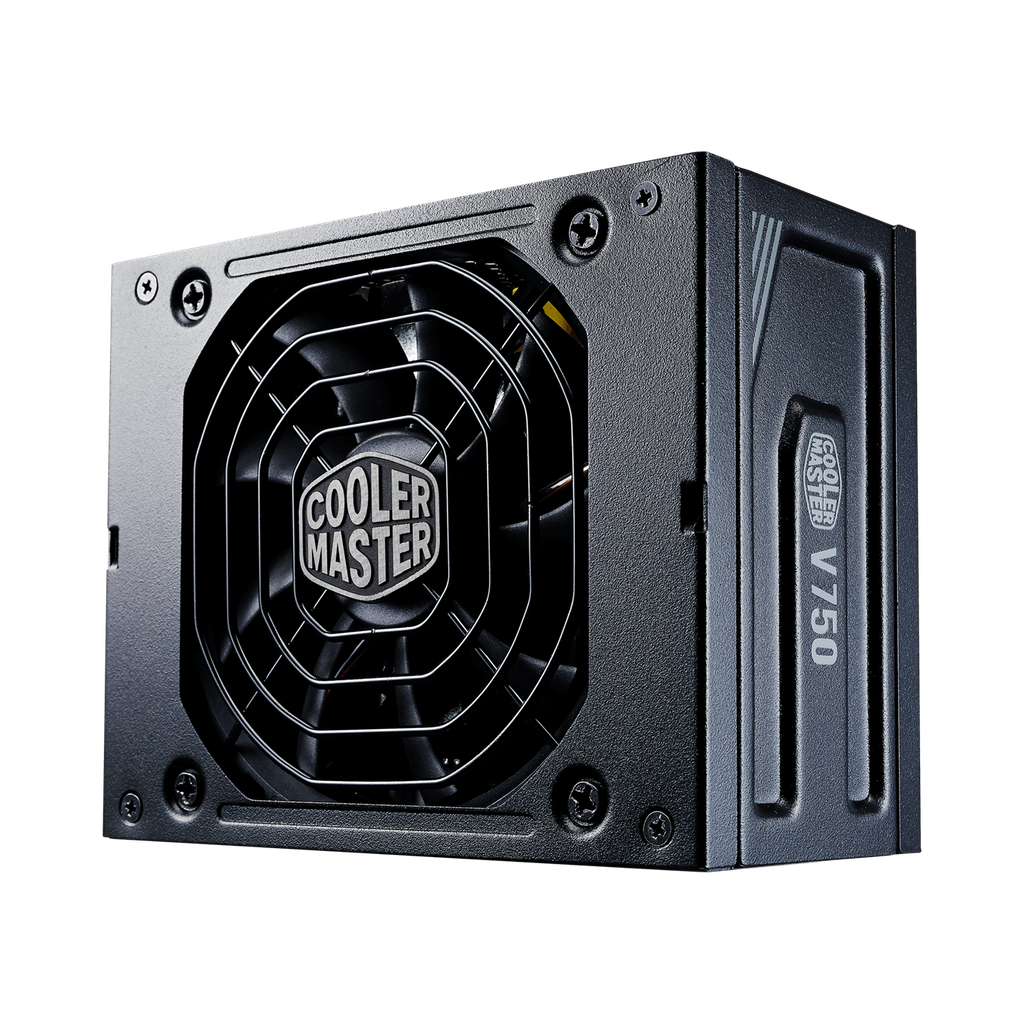

92 mm Fluid Dynamic Bearing fan.
Efficient cooling for the compact PSU enclosure.
A 92 mm Fluid Dynamic Bearing fan provides cooling while maintaining low noise and long-term bearing durability.
Reduce fan noise during light workloads.
Built with 100% Japanese capacitors.
Components chosen for reliability and stability.
Cooler Master specifies Japanese capacitors throughout the V SFX Gold platform to support dependable long-term power delivery.
Nearly the full PSU capacity is available on +12 V.
Stable outputs for motherboard and peripheral loads.
Four PCIe 6+2-pin connectors.
Two EPS connections for compatible motherboards.
Plenty of connectors for drives and accessories.
Efficient AC power handling across a wide input range.
Multiple safeguards protect the system and PSU.
Rated for operation up to 50°C.
Designed for stable transient power behavior.
Backed by a 10-year manufacturer warranty.
Exact European retail variant.
Cooler Master V750 SFX Gold EU details.
PRODUCT
- Product Name
- V750 SFX Gold
- EU Model
- MPY-7501-SFHAGV-EU
- Base Model
- MPY-7501-SFHAGV
- Series
- V SFX Gold
- Form Factor
- SFX
POWER
- Total Rated Power
- 750 W
- ATX / SFX Version
- SFX 12V Ver. 3.42
- PFC
- Active PFC
- ErP 2014 Lot 3
- Yes
AC INPUT
- Product Sheet Voltage
- 90–264 V AC
- Label / Nominal Voltage
- 100–240 V AC
- Input Current
- 10–5 A
- Input Frequency
- 47–63 Hz
DC OUTPUT
- +3.3 V
- 20 A
- +5 V
- 20 A
- +3.3 V + +5 V Combined
- 120 W
- +12 V
- 62.5 A / 750 W
- -12 V
- 0.3 A
- +5 VSB
- 3 A
EFFICIENCY
- 80 PLUS Rating
- 80 PLUS Gold
- Typical Efficiency
- 90%
- Legacy ETA Rating
- A*
- Legacy LAMBDA Rating
- A*
COOLING
- Fan Size
- 92 mm
- Fan Bearing
- FDB
- Fan Mode
- Semi-Fanless*
CABLING
- Modular Design
- Fully Modular
- ATX 24-Pin
- 1×
- EPS 4+4-Pin
- 1×
- EPS 8-Pin
- 1×
- PCIe 6+2-Pin
- 4×
- SATA
- 8×
- Peripheral 4-Pin
- 4×
CABLE LENGTHS
- ATX 24-Pin
- 300 mm
- EPS 4+4-Pin
- 450 mm
- EPS 8-Pin
- 450 mm
- SATA
- 400 + 120 mm
- PCIe / Peripheral
- Revision Cable Layout*
PROTECTIONS
- OVP
- Yes
- OPP
- Yes
- SCP
- Yes
- OCP
- Yes
- UVP
- Yes
- OTP
- Yes
- Surge Protection
- Yes
- Inrush Protection
- Yes
POWER TIMING
- Hold-Up Time
- 16 ms
- Power Good Signal
- 100–500 ms
- MTBF
- >100,000 Hours
PHYSICAL
- Dimensions
- 100 × 125 × 63.5 mm
- Net Weight
- 1.761 kg
- Gross Weight
- 2.061 kg
- Package Size
- 260 × 190 × 100 mm
ENVIRONMENT
- Operating Temperature
- 0°C to 50°C
REGULATORY
- CE
- Yes
- TUV / cTUVus
- Yes
- FCC
- Yes
- CB
- Yes
- RCM / EAC / KCC
- Yes
EU IDENTIFICATION
- SKU
- MPY-7501-SFHAGV-EU
- EAN
- 4719512098561
- UPC
- 884102070860
PACKAGE CONTENTS
- V750 SFX Gold PSU
- 1×
- Modular Cable Set
- Included
- SFX-to-ATX Bracket
- Included
- AC Power Cable
- Included
- Mounting Hardware
- Included
WARRANTY
- Manufacturer Warranty
- 10 Years
