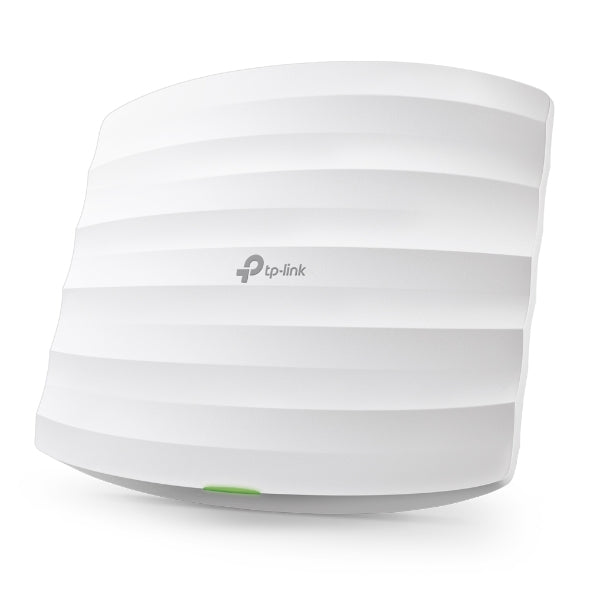

TP-Link Wireless Access Point Dual Band Ceiling Mount 1350Mbps (EAP225)

Price:

Rs 4,390.00


Toner Original HP 150A
Toner Original HP 150A
Rs 3,323.50
Rs 3,323.50

TP-Link Wireless Access Point Dual Band Ceiling Mount 1350Mbps (EAP225)

https://www.compuspeed.mu/web/image/product.template/3098/image_1920?unique=82f7dd4

Rs 4,390.00 4390.0 MUR Rs 4,390.00

Not Available For Sale


This combination does not exist.

Terms and Conditions
Shipping: 2-6 Business Days

AC1350 WIRELESS MU-MIMO GIGABIT CEILING MOUNT ACCESS POINT EAP225
AC1350 DUAL-BAND MU-MIMO GIGABIT
CONNECT · COVER · ROAM · MANAGE

EAP225

AC1350 Wireless MU-MIMO Gigabit Ceiling Mount Access Point

AC1350 867 MBPS 5 GHz 450 MBPS 2.4 GHz GIGABIT POE

Deliver fast, reliable business Wi-Fi with the TP-Link Omada EAP225. This AC1350 ceiling-mount access point combines up to 867 Mbps on 5 GHz with up to 450 Mbps on 2.4 GHz, providing dual-band Wi-Fi 5 performance for offices, hotels, schools, cafés and other indoor environments. MU-MIMO, Beamforming and Band Steering help improve wireless efficiency, while a Gigabit Ethernet PoE port provides a high-speed wired uplink. Omada centralized management, Mesh and seamless roaming make the EAP225 suitable for scalable multi-access-point deployments.

5 GHz 867 Mbps
2.4 GHz 450 Mbps
ETHERNET 1× Gigabit
CLIENT CAPACITY 220+*
1350
MBPS CLASS Dual-Band Wi-Fi 5
867
MBPS 5 GHz Band
450
MBPS 2.4 GHz Band
1G
ETHERNET Gigabit PoE Uplink
01
AC1350 DUAL-BAND WI-FI

Fast Wi-Fi 5 connectivity across two wireless bands.

5 GHz 867 Mbps
2.4 GHz 450 Mbps
02
DUAL-BAND CONNECTIVITY

Balance compatibility and performance across 2.4 GHz and 5 GHz.

LONGER REACH 2.4 GHz UP TO 450 MBPS

Ideal for general connectivity and devices that benefit from wider indoor coverage.

HIGHER SPEED 5 GHz UP TO 867 MBPS

Provides faster wireless performance and greater capacity for compatible Wi-Fi 5 clients.

03
MU-MIMO TECHNOLOGY

Serve multiple compatible wireless clients more efficiently.

EAP225
CLIENT 01 CLIENT 02 CLIENT 03
04
BEAMFORMING

Direct wireless energy toward connected devices.

AP
CLIENT
05
BAND STEERING

Guide capable clients toward the less congested 5 GHz band.

CLIENT DUAL-BAND
→
PREFERRED BAND 5 GHz
06
GIGABIT WIRED UPLINK

A Gigabit Ethernet port helps avoid a Fast Ethernet bottleneck.

ETHERNET LINK 1000 Mbps
1× GIGABIT RJ45

High-speed wired connectivity for the access point.

EAP225 includes a 10/100/1000 Mbps Gigabit Ethernet port for connection to a compatible switch, router or PoE source.

07
FLEXIBLE POWER

802.3af PoE and 24V Passive PoE support.

⚡
802.3af STANDARD POE
24V
PASSIVE POE FLEXIBLE INSTALLATION
08
INTERNAL ANTENNA SYSTEM

Optimized antennas for both wireless bands.

2.4 GHz 3× 4 dBi INTERNAL OMNI
5 GHz 2× 5 dBi INTERNAL OMNI
09
MULTI-CLIENT ENVIRONMENTS

Designed for environments with many connected wireless devices.

CONNECTED CLIENTS 220+ LAB-RATED CAPACITY*
OFFICE BUSINESS DEVICES
HOTEL GUEST WI-FI
CLASS EDUCATION
CAFÉ PUBLIC WI-FI
10
INDOOR COVERAGE

Designed to cover professional indoor spaces from the ceiling.

EAP225
LAB COVERAGE Up to 1,250 ft² / 115 m²*

Actual coverage depends on walls, interference, placement, client capability and building layout.

11
PROFESSIONAL MOUNTING

Install on ceilings or walls for discreet Wi-Fi coverage.

CEILING LOW-PROFILE INSTALLATION
WALL FLEXIBLE PLACEMENT
12
MULTIPLE WIRELESS NETWORKS

Create separate SSIDs for employees, guests and devices.

STAFF BUSINESS NETWORK
GUEST VISITOR ACCESS
IOT DEVICE NETWORK
16 MAX BSSIDs*
13
SSID / VLAN SEGMENTATION

Separate wireless traffic for cleaner network design.

SSID
VLAN
LAN
14
GUEST AUTHENTICATION

Provide controlled guest access with Captive Portal.

LOGIN
GUEST NETWORK Captive Portal

Supported Omada configurations can provide guest authentication using password, voucher, local user, RADIUS and other controller-supported portal methods.

15
OMADA MESH

Extend compatible Omada wireless networks without Ethernet everywhere.

EAP
EAP225
EAP
16
SEAMLESS ROAMING

Help compatible clients move between access points smoothly.

802.11k NEIGHBOR INFORMATION
802.11v NETWORK ASSISTANCE
802.11r FAST TRANSITION
17
AIRTIME FAIRNESS

Reduce the impact of slower wireless clients.

FAST MORE EFFICIENT AIRTIME
FAIR BALANCED ACCESS
18
LOAD BALANCING

Distribute clients across compatible managed access points.

AP 01
USER USER USER
AP 02
19
WIRELESS QoS

Control wireless traffic and client bandwidth.

WMM WI-FI MULTIMEDIA
RATE SSID / CLIENT LIMIT
U-APSD POWER SAVE DELIVERY
20
WIRELESS SECURITY

Business-focused authentication and wireless protection.

WPA2 PERSONAL / ENTERPRISE
WPA3 SUPPORTED*
802.1X AUTHENTICATION
MAC FILTERING
21
ROGUE AP DETECTION

Identify nearby wireless networks that may require investigation.

AP
NETWORK SECURITY Rogue AP Detection

Rogue AP detection helps administrators identify surrounding wireless access points and investigate potentially unauthorized networks.

22
CENTRALIZED MANAGEMENT

Control EAP225 through the Omada ecosystem.

OMADA SDN
CLOUD
APP
CONTROLLER
WEB
23
ADMINISTRATION

Multiple methods for local and centralized management.

APP OMADA APP
SSH REMOTE MANAGEMENT
SNMP v1 / v2c / v3
WEB STANDALONE
24
POWER CONSUMPTION

Efficient PoE-powered operation.

EU POE FIGURE 9.7 W
US POE FIGURE 12.6 W
POWER INPUT PoE
25
PHYSICAL DESIGN

Low-profile enclosure for ceiling and wall mounting.

205.4 mm 181.6 mm
WIDTH 205.4 mm
DEPTH 181.6 mm
HEIGHT 37.1 mm
WEIGHT 0.36 kg
26
PACKAGE CONTENTS

Essential hardware for installation.

1× EAP225
1× Power Adapter
1× Mounting Kit
1× Installation Guide
27
TECHNICAL SPECIFICATIONS

TP-Link Omada EAP225 technical details.

01

WIRELESS

Wi-Fi Class
AC1350
Wi-Fi Generation
Wi-Fi 5
5 GHz Speed
Up to 867 Mbps
2.4 GHz Speed
Up to 450 Mbps
02

WIRELESS STANDARDS

5 GHz
802.11a/n/ac
2.4 GHz
802.11b/g/n
5 GHz Width
20 / 40 / 80 MHz
2.4 GHz Width
20 / 40 MHz
03

MIMO

2.4 GHz
3×3 MIMO
5 GHz
2×2 MU-MIMO
Beamforming
Supported
Band Steering
Supported
04

ANTENNAS

2.4 GHz
3× 4 dBi Internal Omni
5 GHz
2× 5 dBi Internal Omni
05

ETHERNET

Port
1× RJ45
Link Speed
10/100/1000 Mbps
PoE Input
Supported
06

POWER

802.3af PoE
Supported
24V Passive PoE
Supported
EU Power Consumption
Approx. 9.7 W
US Power Consumption
Up to 12.6 W
07

WIRELESS FEATURES

Band Steering
Supported
Airtime Fairness
Supported
Automatic Channel
Supported
Transmit Power Control
Supported
Rate Limiting
SSID / Client
Load Balancing
Supported
08

ROAMING & MESH

Omada Mesh
Supported
802.11k
Supported
802.11v
Supported
802.11r
Supported
09

NETWORK CAPACITY

Maximum BSSIDs
16 / 8 per Band
Maximum Associated STAs
228
Marketing Client Capacity
220+*
Lab Coverage
Up to 115 m²*
10

QoS

WMM
Supported
U-APSD
Supported
SSID Rate Limit
Supported
Client Rate Limit
Supported
11

SECURITY

WPA / WPA2 Personal
Supported
WPA / WPA2 Enterprise
Supported
WPA3
Supported*
802.1X Authentication
Supported
MAC Filtering
Supported
Rogue AP Detection
Supported
12

GUEST ACCESS

Guest Network
Supported
Captive Portal
Supported
Voucher
Controller Dependent
RADIUS Portal
Supported
13

MANAGEMENT

Omada Controller
Supported
Omada App
Supported
Standalone Management
Supported
Standalone Mesh
Supported
14

MANAGEMENT PROTOCOLS

SSH
Supported
SNMP
v1 / v2c / v3
System Log
Supported
NTP
Supported
Email Alerts
Supported
15

PROTECTION

Ethernet Surge Protection
±4 kV
Air ESD
±8 kV
Contact ESD
±4 kV
16

PHYSICAL

Dimensions
205.4 × 181.6 × 37.1 mm
Unit Weight
Approx. 0.36 kg
Mounting
Ceiling / Wall
Reset Button
Supported
17

ENVIRONMENT

Operating Temperature
0°C – 40°C
Storage Temperature
-40°C – 70°C
Operating Humidity
10% – 90%
Storage Humidity
5% – 90%
18

PACKAGE CONTENTS

EAP225
1×
Power Adapter
1×
Mounting Kit
1×
Installation Guide
1×
AC1350 WIRELESS MU-MIMO GIGABIT CEILING MOUNT ACCESS POINT TP-Link Omada EAP225
Maximum wireless rates are theoretical physical rates based on IEEE 802.11 specifications. Actual throughput, coverage and client capacity depend on client hardware, network traffic, interference, building materials, access-point placement and environmental conditions. The 1,250 ft² / 115 m² coverage figure and 220+ client figure are laboratory-based reference values and are not guaranteed in every installation. Power consumption, PoE behavior, supported frequencies, transmit power and some software features can vary by hardware revision, firmware and region. This embed primarily follows TP-Link's current EAP225 V4.20 documentation.
