A considered foundation.
Digital power and reinforced expansion.
Digital PWM
PCIe Steel Armor
6-layer PCB

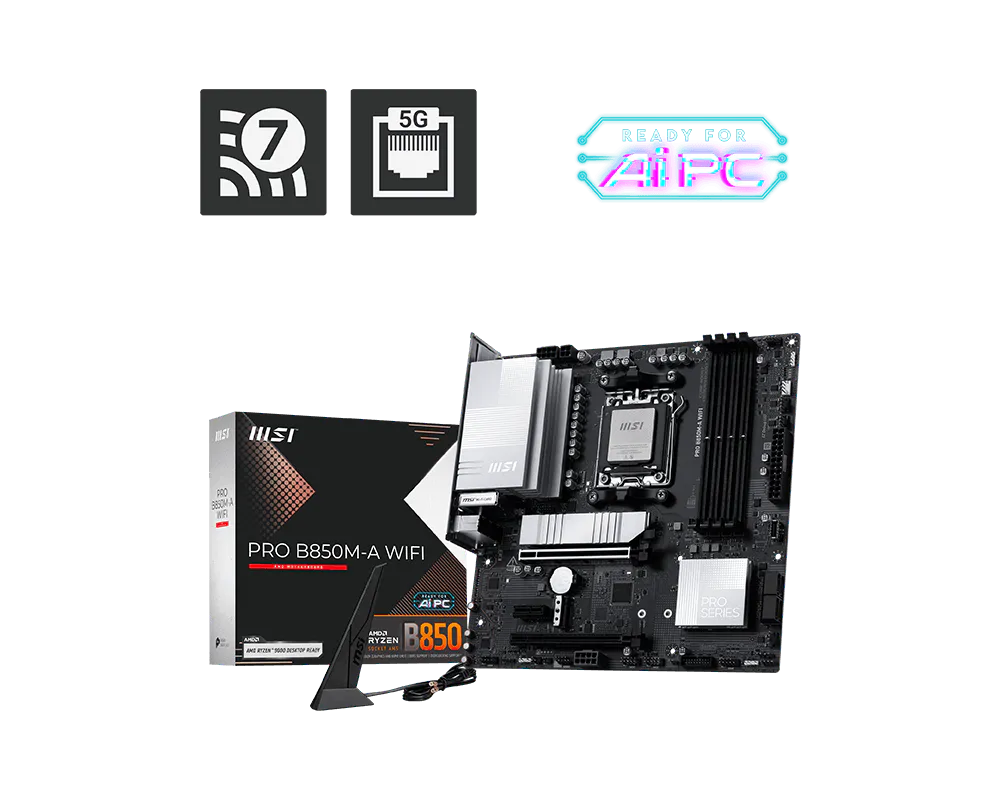

Motherboard MSI B850-A-WIFI
msi
PRO B850M-A WIFI
AMD B850 / AM5
AMD B850 / AM5
MSI PRO SERIES
PRO B850M-AWIFI
A silver finish. A versatile AM5 foundation.
AM5
RYZEN 9000 / 8000 / 7000
DDR5
4 MEMORY SLOTS
PCIe 5.0
GRAPHICS & M.2
Wi-Fi 7
WITH 5G LAN
BUSINESS ELEGANCE
Designed for your
next chapter.
A coordinated silver design for white or black builds.
PRO SERIES OVERVIEW
Explore the motherboard.
Built to connect.
DDR5, Wi-Fi 7 and 5G LAN.
DDR5
Wi-Fi 7
5G LAN
Cooling where it matters.
Heatsinks and thermal pads support key components.
Extended heatsink
M.2 Shield Frozr
7W/mK pads
EZ DIY
Tool-free M.2 cooling.
Install or release the heatsink with one finger.
EZ M.2 Shield Frozr II
Press. Lock. Done.
Secure compatible M.2 drives without screws.
EZ M.2 Clip II
A simpler connection.
Attach antenna fasteners without twisting.
EZ Antenna
Ready for assembly.
The rear I/O shield is pre-installed.
Integrated I/O shield
ULTRA PERFORMANCE
Direct 8+2+1 power.
60A smart power stages with 8+4-pin CPU power.
8+2+1 phases
60A SPS
Strength in every layer.
Six PCB layers and 2oz thickened copper.
6-layer PCB
2oz copper
A faster foundation.
DDR5 support with MSI Memory Boost.
4 DDR5 DIMMs
AMD EXPO
FROZR DESIGN
A complete thermal approach.
Heatsinks and pads support sustained workloads.
VRM
M.2
Chipset
Connect your cooling.
Headers support CPU, system and liquid cooling.
CPU fan
Combo fan
System fans
Respond to the workload.
System fan control follows CPU and GPU temperatures.
Automatic fan tuning
TRILINK
Fast, wired or wireless.
Wi-Fi 7 and 5G Ethernet connectivity.
Wi-Fi 7
5G LAN
Two paths to fast storage.
One Gen5 x4 and one Gen4 x4 M.2 slot.
Gen5 M.2
Gen4 M.2
Support your expansion.
An additional 8-pin connector supplies supplemental PCIe power.
Supplemental power
EXPERIENCE MORE
A clearer starting point.
Essential settings in MSI Click BIOS X.
Click BIOS X
Go deeper into your setup.
Access detailed system configuration.
Advanced controls
Make it yours.
Control compatible RGB accessories through MSI Center.
Compatible RGB devices
REAR CONNECTIONS
Connect your workspace.
HDMI
DisplayPort
USB Type-C
5G LAN
Wi-Fi / Bluetooth
Flash BIOS
Clear CMOS
PRO B850M-A WIFI
Technical specifications.
Platform & memory
- Chipset / socket
- AMD B850 / AM5
- CPU support
- AMD Ryzen 9000, 8000 and 7000 desktop processors
- Memory
- 4 × DDR5 UDIMM / up to 256GB / dual channel
- Memory tuning
- Up to 8200+ MT/s OC / AMD EXPO
- Form factor
- Micro-ATX / 243.84 × 243.84mm
Expansion & storage
- Expansion
- PCIe 5.0 x16 / PCIe 4.0 x4 / PCIe 3.0 x1
- M.2 slots
- 1 × Gen5 x4 / 1 × Gen4 x4
- SATA
- 4 × SATA 6Gb/s
Connectivity & audio
- Networking
- Realtek 8126VB 5G LAN / Wi-Fi 7 / Bluetooth 5.4
- Rear USB
- 3 × USB-A 10Gbps / 2 × USB-C 10Gbps / 3 × USB-A 5Gbps
- Front USB support
- 1 × USB-C 10Gbps / 2 × USB-A 5Gbps / 4 × USB 2.0
- Display outputs
- HDMI 2.1 / DisplayPort 1.4 / up to 4K 60Hz*
- Audio
- Realtek ALC897 / 7.1-channel HD audio
*Display outputs require a processor with integrated graphics. PCIe lanes, storage speeds and memory support vary by CPU and configuration. Wi-Fi 7 and Bluetooth 5.4 require Windows 11 24H2; 6GHz access depends on local regulations and compatible equipment. Shared technology illustrations are representative.
msi
PRO B850M-A WIFI
AMD B850 / AM5
AMD B850 / AM5
MSI PRO SERIES
PRO B850M-AWIFI
A silver finish. A versatile AM5 foundation.
AM5
RYZEN 9000 / 8000 / 7000
DDR5
4 MEMORY SLOTS
PCIe 5.0
GRAPHICS & M.2
Wi-Fi 7
WITH 5G LAN
BUSINESS ELEGANCE
Designed for your
next chapter.
A coordinated silver design for white or black builds.
PRO SERIES OVERVIEW
Explore the motherboard.
A considered foundation.
Digital power and reinforced expansion.
Digital PWM
PCIe Steel Armor
6-layer PCB
Built to connect.
DDR5, Wi-Fi 7 and 5G LAN.
DDR5
Wi-Fi 7
5G LAN
Cooling where it matters.
Heatsinks and thermal pads support key components.
Extended heatsink
M.2 Shield Frozr
7W/mK pads
EZ DIY
Tool-free M.2 cooling.
Install or release the heatsink with one finger.
EZ M.2 Shield Frozr II
Press. Lock. Done.
Secure compatible M.2 drives without screws.
EZ M.2 Clip II
A simpler connection.
Attach antenna fasteners without twisting.
EZ Antenna
Ready for assembly.
The rear I/O shield is pre-installed.
Integrated I/O shield
ULTRA PERFORMANCE
Direct 8+2+1 power.
60A smart power stages with 8+4-pin CPU power.
8+2+1 phases
60A SPS
Strength in every layer.
Six PCB layers and 2oz thickened copper.
6-layer PCB
2oz copper
A faster foundation.
DDR5 support with MSI Memory Boost.
4 DDR5 DIMMs
AMD EXPO
FROZR DESIGN
A complete thermal approach.
Heatsinks and pads support sustained workloads.
VRM
M.2
Chipset
Connect your cooling.
Headers support CPU, system and liquid cooling.
CPU fan
Combo fan
System fans
Respond to the workload.
System fan control follows CPU and GPU temperatures.
Automatic fan tuning
TRILINK
Fast, wired or wireless.
Wi-Fi 7 and 5G Ethernet connectivity.
Wi-Fi 7
5G LAN
Two paths to fast storage.
One Gen5 x4 and one Gen4 x4 M.2 slot.
Gen5 M.2
Gen4 M.2
Support your expansion.
An additional 8-pin connector supplies supplemental PCIe power.
Supplemental power
EXPERIENCE MORE
A clearer starting point.
Essential settings in MSI Click BIOS X.
Click BIOS X
Go deeper into your setup.
Access detailed system configuration.
Advanced controls
Make it yours.
Control compatible RGB accessories through MSI Center.
Compatible RGB devices
REAR CONNECTIONS
Connect your workspace.
HDMI
DisplayPort
USB Type-C
5G LAN
Wi-Fi / Bluetooth
Flash BIOS
Clear CMOS
PRO B850M-A WIFI
Technical specifications.
Platform & memory
- Chipset / socket
- AMD B850 / AM5
- CPU support
- AMD Ryzen 9000, 8000 and 7000 desktop processors
- Memory
- 4 × DDR5 UDIMM / up to 256GB / dual channel
- Memory tuning
- Up to 8200+ MT/s OC / AMD EXPO
- Form factor
- Micro-ATX / 243.84 × 243.84mm
Expansion & storage
- Expansion
- PCIe 5.0 x16 / PCIe 4.0 x4 / PCIe 3.0 x1
- M.2 slots
- 1 × Gen5 x4 / 1 × Gen4 x4
- SATA
- 4 × SATA 6Gb/s
Connectivity & audio
- Networking
- Realtek 8126VB 5G LAN / Wi-Fi 7 / Bluetooth 5.4
- Rear USB
- 3 × USB-A 10Gbps / 2 × USB-C 10Gbps / 3 × USB-A 5Gbps
- Front USB support
- 1 × USB-C 10Gbps / 2 × USB-A 5Gbps / 4 × USB 2.0
- Display outputs
- HDMI 2.1 / DisplayPort 1.4 / up to 4K 60Hz*
- Audio
- Realtek ALC897 / 7.1-channel HD audio
*Display outputs require a processor with integrated graphics. PCIe lanes, storage speeds and memory support vary by CPU and configuration. Wi-Fi 7 and Bluetooth 5.4 require Windows 11 24H2; 6GHz access depends on local regulations and compatible equipment. Shared technology illustrations are representative.
