Cooling System Cooler Master PL240 Flux
MasterLiquid PL240 Flux
Cooler Master MasterLiquid PL240 Flux (MLY-D24M-A23PZ-R1) combines a compact low-profile 240mm aluminum radiator with two redesigned Flux Series 120mm fans, a premium dual-chamber pump and dual-loop Addressable Gen 2 RGB lighting. The platform is tuned for high airflow, strong static pressure and efficient heat exchange in performance-focused builds.
Fine-tuned cooling performance in a compact 240mm format
The aluminum radiator measures 277 × 119.6 × 27.2mm for a compact dual-fan layout.
The 240mm radiator uses two redesigned Flux Series 120mm cooling fans.
Interconnecting fan blades and an angled inner frame improve stability and intake.
PWM fan operation ranges from zero to 2300 RPM with ±10% tolerance.
Each Flux Series fan delivers up to 72.37 CFM maximum airflow.
Strong static pressure helps move air through the dense radiator fins.
The compact pump uses Cooler Master's premium dual-chamber architecture.
A high-speed motor and ceramic bearing impeller promote balanced coolant flow.
High fin density and a low-profile design support rapid heat dissipation.
Independent dual-loop Addressable RGB lighting highlights the pump housing.
Individually addressable lighting enables detailed colors and effects.
The included Gen 2 controller supports software-based lighting customization.
A compact 240mm AIO combining a premium dual-chamber pump, redesigned high-pressure Flux fans and independently customizable Gen 2 ARGB lighting.
MasterLiquid PL240 Flux is designed around efficient heat exchange from pump to radiator. Its premium dual-chamber pump uses a high-speed motor and ceramic-bearing impeller to maintain balanced coolant flow, while the low-profile aluminum radiator and two redesigned Flux Series fans provide concentrated airflow and static pressure. Addressable Gen 2 RGB extends across the fans and dual-loop pump lighting for extensive visual customization.
Cooler Master MasterLiquid PL240 Flux

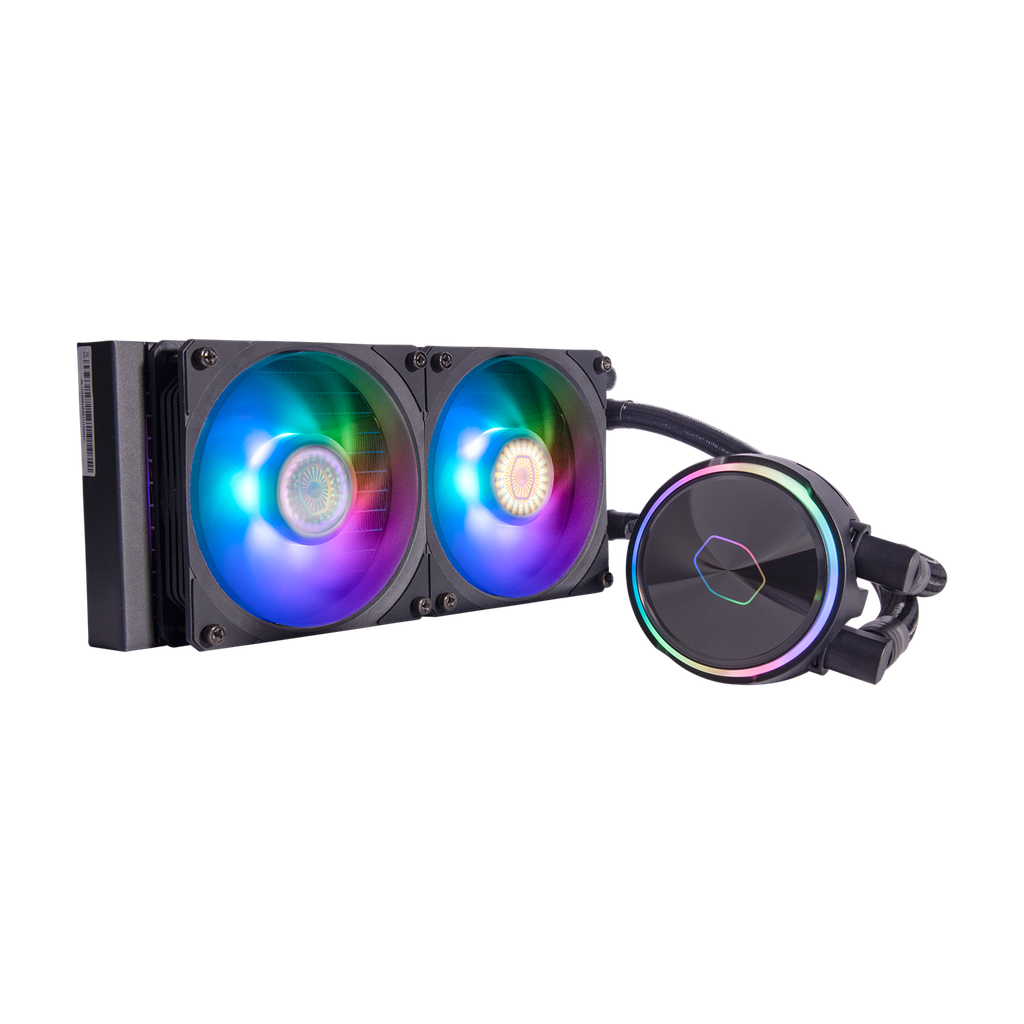

The Cooler Master MasterLiquid PL240 Flux (MLY-D24M-A23PZ-R1) is a black 240mm all-in-one liquid CPU cooler featuring a 277 × 119.6 × 27.2mm aluminum radiator, an 89 × 75 × 40mm premium dual-chamber pump and two 120 × 120 × 25mm Addressable Gen 2 RGB fans. Fan speed ranges from 0 to 2300 RPM ±10%, with maximum airflow of 72.37 CFM, maximum static pressure of 2.96 mmH₂O and maximum noise output of 32 dBA. The fans use an Oil Reflow Bearing System, while the pump is rated at 15 dBA maximum and uses a 4-pin power connection. The included Addressable Gen 2 RGB controller works with Cooler Master MasterPlus+ software.
Product information
MasterLiquid PL240 Flux
Cooler Master MasterLiquid PL240 Flux (MLY-D24M-A23PZ-R1) combines a compact low-profile 240mm aluminum radiator with two redesigned Flux Series 120mm fans, a premium dual-chamber pump and dual-loop Addressable Gen 2 RGB lighting. The platform is tuned for high airflow, strong static pressure and efficient heat exchange in performance-focused builds.
Fine-tuned cooling performance in a compact 240mm format
The aluminum radiator measures 277 × 119.6 × 27.2mm for a compact dual-fan layout.
The 240mm radiator uses two redesigned Flux Series 120mm cooling fans.
Interconnecting fan blades and an angled inner frame improve stability and intake.
PWM fan operation ranges from zero to 2300 RPM with ±10% tolerance.
Each Flux Series fan delivers up to 72.37 CFM maximum airflow.
Strong static pressure helps move air through the dense radiator fins.
The compact pump uses Cooler Master's premium dual-chamber architecture.
A high-speed motor and ceramic bearing impeller promote balanced coolant flow.
High fin density and a low-profile design support rapid heat dissipation.
Independent dual-loop Addressable RGB lighting highlights the pump housing.
Individually addressable lighting enables detailed colors and effects.
The included Gen 2 controller supports software-based lighting customization.
A compact 240mm AIO combining a premium dual-chamber pump, redesigned high-pressure Flux fans and independently customizable Gen 2 ARGB lighting.
MasterLiquid PL240 Flux is designed around efficient heat exchange from pump to radiator. Its premium dual-chamber pump uses a high-speed motor and ceramic-bearing impeller to maintain balanced coolant flow, while the low-profile aluminum radiator and two redesigned Flux Series fans provide concentrated airflow and static pressure. Addressable Gen 2 RGB extends across the fans and dual-loop pump lighting for extensive visual customization.
Cooler Master MasterLiquid PL240 Flux
The Cooler Master MasterLiquid PL240 Flux (MLY-D24M-A23PZ-R1) is a black 240mm all-in-one liquid CPU cooler featuring a 277 × 119.6 × 27.2mm aluminum radiator, an 89 × 75 × 40mm premium dual-chamber pump and two 120 × 120 × 25mm Addressable Gen 2 RGB fans. Fan speed ranges from 0 to 2300 RPM ±10%, with maximum airflow of 72.37 CFM, maximum static pressure of 2.96 mmH₂O and maximum noise output of 32 dBA. The fans use an Oil Reflow Bearing System, while the pump is rated at 15 dBA maximum and uses a 4-pin power connection. The included Addressable Gen 2 RGB controller works with Cooler Master MasterPlus+ software.
Product information
| Brand | Cooler Master |
