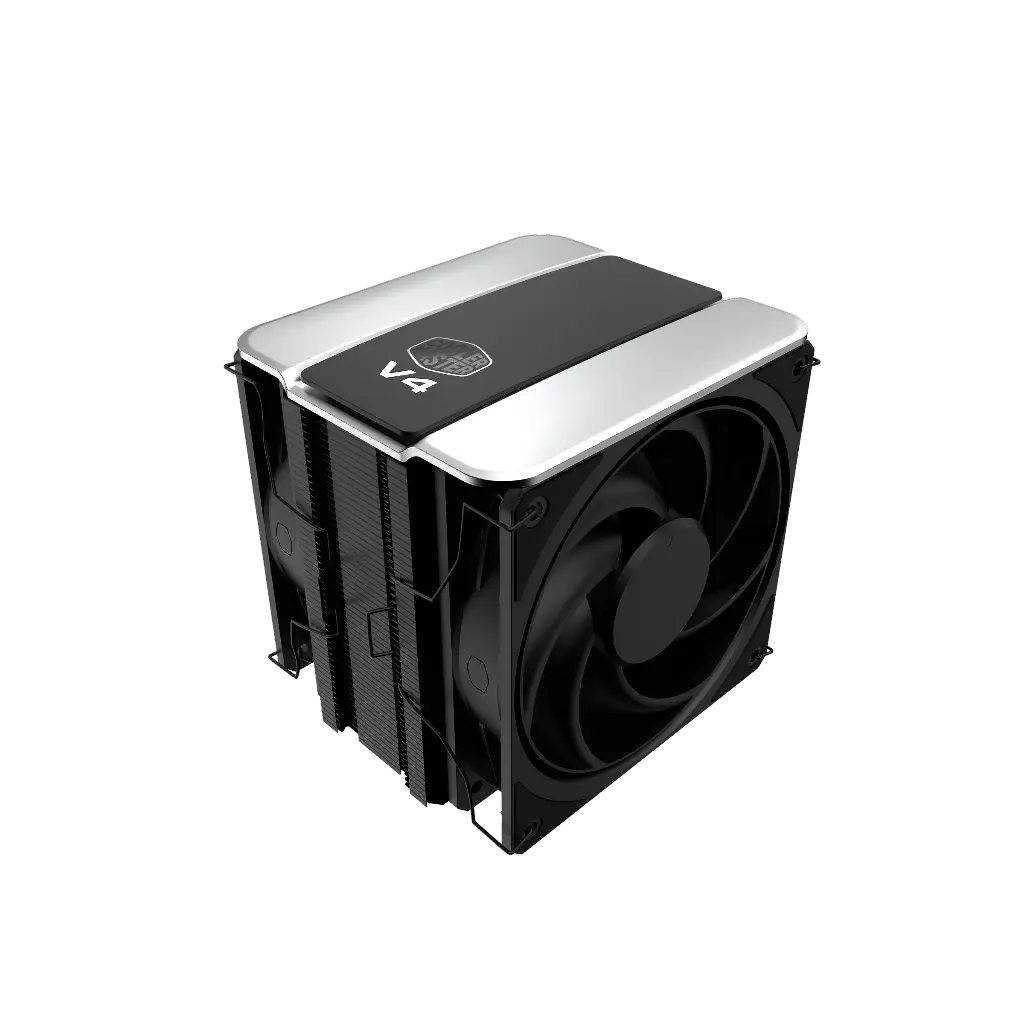

Cooling System Cooler Master V4 Alpha 3DHP Black (MAZ-T2HP-217PK-R1)
V4 Alpha 3DHP Black
Cooler Master V4 Alpha 3DHP Black (MAZ-T2HP-217PK-R1) uses Cooler Master's proprietary 3DHP heat-transfer technology with a solid copper base, aluminum fin stack and two pre-installed 120mm ring-blade fans. The dual-fan front-and-rear layout is designed to combine strong airflow with efficient thermal transfer in a distinctive V-inspired tower cooler.
Advanced 3DHP cooling with a dual-fan tower layout
Cooler Master's three-dimensional heat-pipe architecture targets the dead zone of conventional U-shaped designs.
The heatsink uses two widened proprietary 3DHP heat pipes with aluminum cooling fins.
A large solid copper contact surface transfers processor heat into the 3DHP cooling structure.
The distinctive tower design takes visual inspiration from a classic V-style engine.
One front and one rear 120mm fan are pre-installed for push-pull airflow.
The front 120mm fan operates from 0 to 2050 RPM with ±10% tolerance.
The rear 120mm fan operates from 0 to 1850 RPM with ±10% tolerance.
Ring-blade fan construction is designed for stable airflow and reduced high-frequency noise.
The front fan delivers up to 63.1 CFM of airflow.
Front fan static pressure reaches 2.69 mmH₂O for heatsink airflow.
Both cooling fans use Loop Dynamic Bearings with an MTTF above 200,000 hours.
Overall cooler dimensions are 133 × 114 × 161mm for a substantial tower layout.
Two proprietary 3DHP heat pipes, a solid copper base and dual 120mm ring-blade fans engineered into a distinctive V-inspired tower cooler.
V4 Alpha 3DHP Black uses Cooler Master's proprietary three-dimensional heat-pipe architecture to improve thermal transfer with fewer heat pipes. A large solid copper base transfers heat into two widened 3DHP pipes and an aluminum fin array, while front and rear 120mm fans create a push-pull airflow path through the heatsink. The result combines a compact heat-pipe layout with high airflow, strong static pressure and broad modern CPU compatibility.
Cooler Master V4 Alpha 3DHP Black
The Cooler Master V4 Alpha 3DHP Black (MAZ-T2HP-217PK-R1) is a high-performance CPU air cooler measuring 133 × 114 × 161mm. Its heatsink combines two proprietary 3DHP heat pipes, a solid copper CPU contact base and aluminum fins. Two non-LED 120 × 120 × 25mm fans are installed in a front-and-rear configuration. The front fan operates from 0 to 2050 RPM ±10% and delivers up to 63.1 CFM with 2.69 mmH₂O static pressure, while the rear fan operates from 0 to 1850 RPM ±10% and provides up to 50.5 CFM with 1.77 mmH₂O pressure. Both fans use Loop Dynamic Bearings and 4-pin PWM connections. The cooler supports Intel LGA1851, LGA1700, LGA1200 and LGA115x sockets alongside AMD AM5 and AM4.
Product information
V4 Alpha 3DHP Black
Cooler Master V4 Alpha 3DHP Black (MAZ-T2HP-217PK-R1) uses Cooler Master's proprietary 3DHP heat-transfer technology with a solid copper base, aluminum fin stack and two pre-installed 120mm ring-blade fans. The dual-fan front-and-rear layout is designed to combine strong airflow with efficient thermal transfer in a distinctive V-inspired tower cooler.
Advanced 3DHP cooling with a dual-fan tower layout
Cooler Master's three-dimensional heat-pipe architecture targets the dead zone of conventional U-shaped designs.
The heatsink uses two widened proprietary 3DHP heat pipes with aluminum cooling fins.
A large solid copper contact surface transfers processor heat into the 3DHP cooling structure.
The distinctive tower design takes visual inspiration from a classic V-style engine.
One front and one rear 120mm fan are pre-installed for push-pull airflow.
The front 120mm fan operates from 0 to 2050 RPM with ±10% tolerance.
The rear 120mm fan operates from 0 to 1850 RPM with ±10% tolerance.
Ring-blade fan construction is designed for stable airflow and reduced high-frequency noise.
The front fan delivers up to 63.1 CFM of airflow.
Front fan static pressure reaches 2.69 mmH₂O for heatsink airflow.
Both cooling fans use Loop Dynamic Bearings with an MTTF above 200,000 hours.
Overall cooler dimensions are 133 × 114 × 161mm for a substantial tower layout.
Two proprietary 3DHP heat pipes, a solid copper base and dual 120mm ring-blade fans engineered into a distinctive V-inspired tower cooler.
V4 Alpha 3DHP Black uses Cooler Master's proprietary three-dimensional heat-pipe architecture to improve thermal transfer with fewer heat pipes. A large solid copper base transfers heat into two widened 3DHP pipes and an aluminum fin array, while front and rear 120mm fans create a push-pull airflow path through the heatsink. The result combines a compact heat-pipe layout with high airflow, strong static pressure and broad modern CPU compatibility.
Cooler Master V4 Alpha 3DHP Black
The Cooler Master V4 Alpha 3DHP Black (MAZ-T2HP-217PK-R1) is a high-performance CPU air cooler measuring 133 × 114 × 161mm. Its heatsink combines two proprietary 3DHP heat pipes, a solid copper CPU contact base and aluminum fins. Two non-LED 120 × 120 × 25mm fans are installed in a front-and-rear configuration. The front fan operates from 0 to 2050 RPM ±10% and delivers up to 63.1 CFM with 2.69 mmH₂O static pressure, while the rear fan operates from 0 to 1850 RPM ±10% and provides up to 50.5 CFM with 1.77 mmH₂O pressure. Both fans use Loop Dynamic Bearings and 4-pin PWM connections. The cooler supports Intel LGA1851, LGA1700, LGA1200 and LGA115x sockets alongside AMD AM5 and AM4.
Product information
| Brand | Cooler Master |
