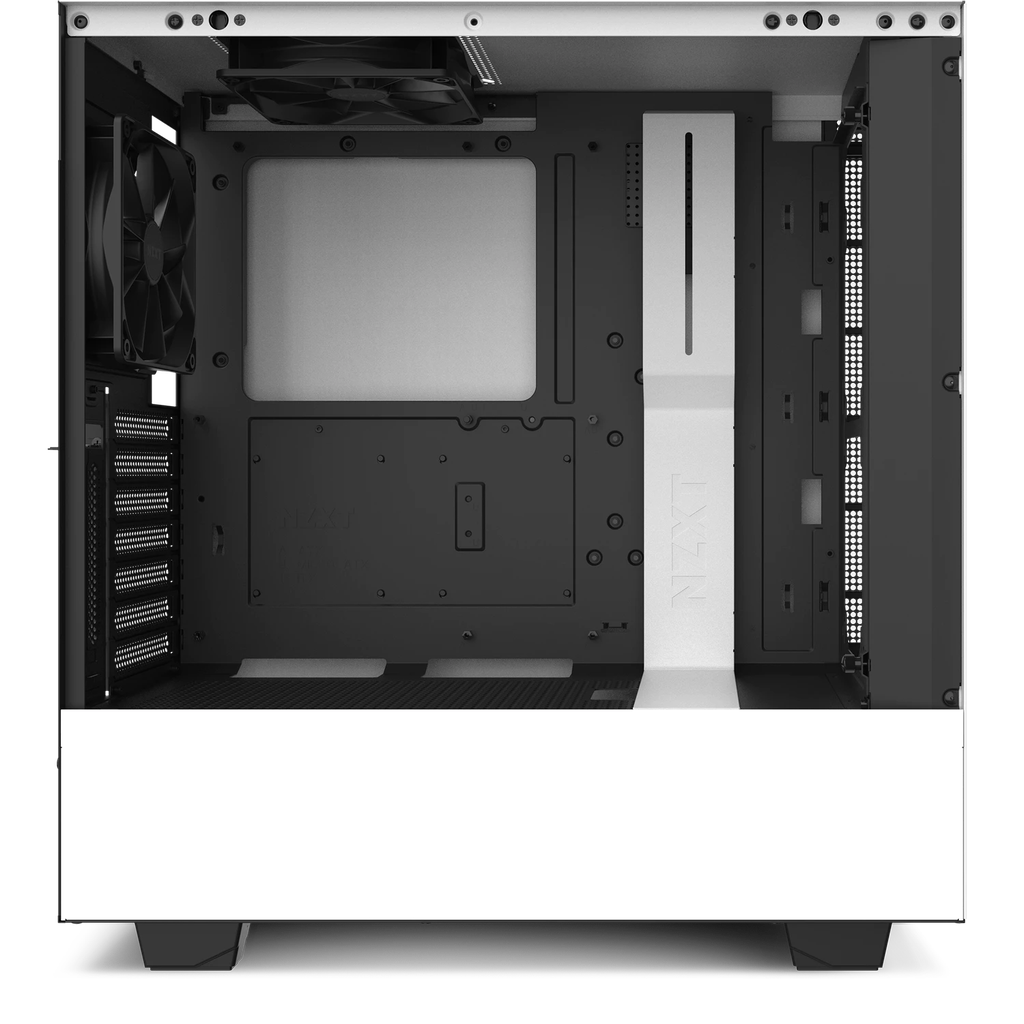

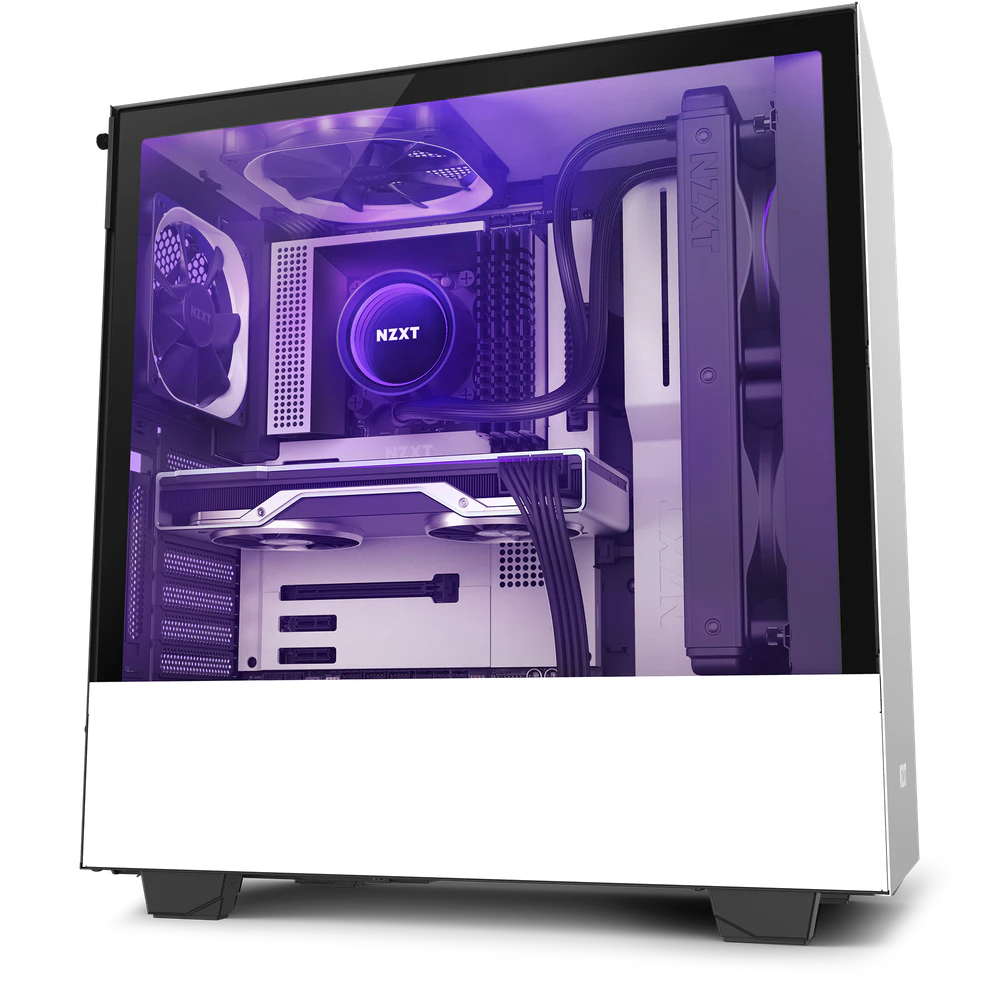

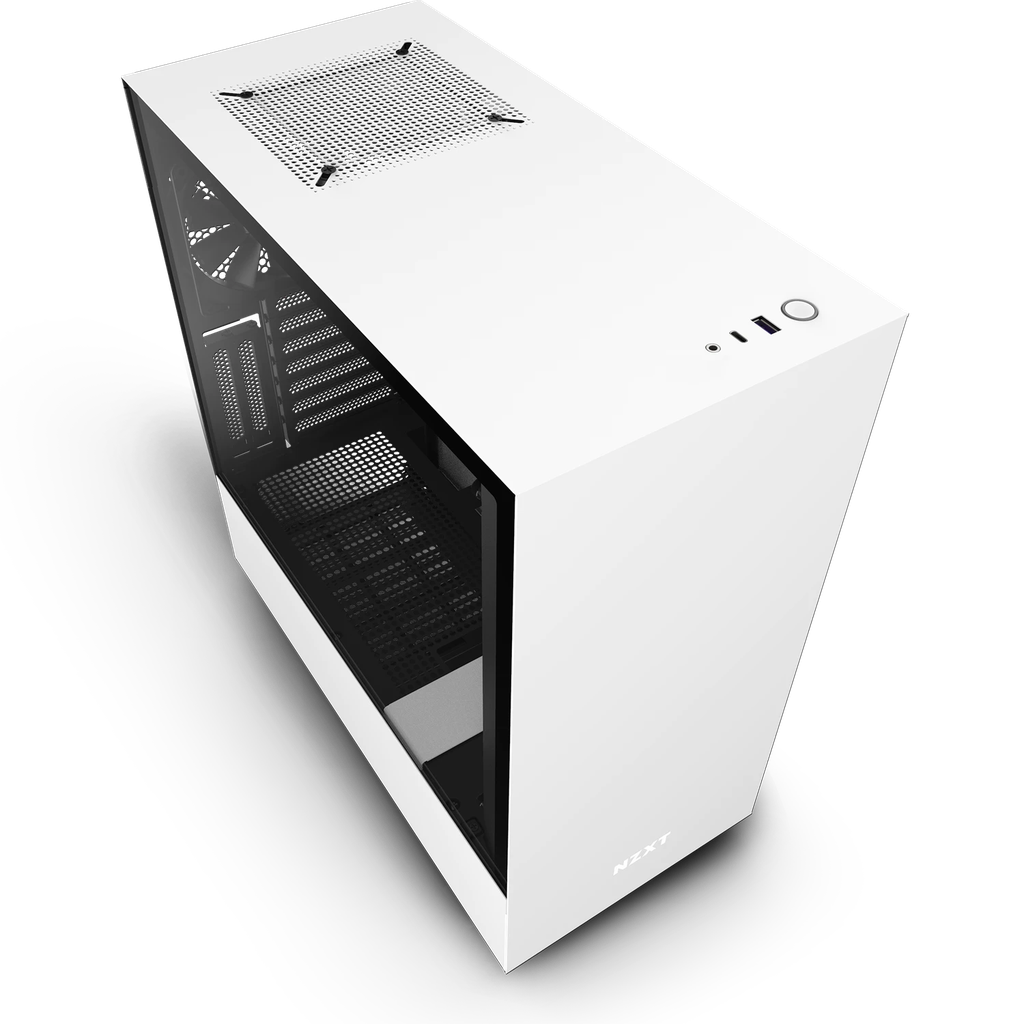

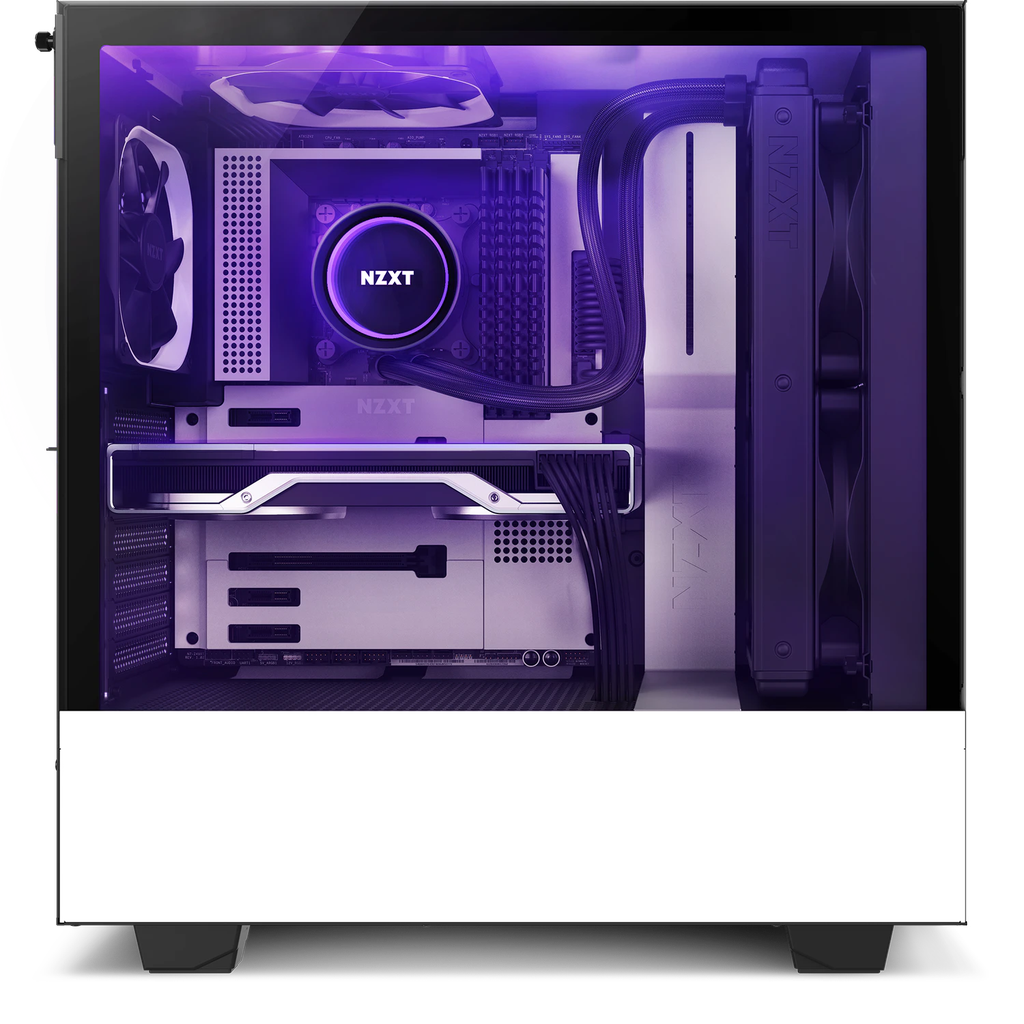

Casing NZXT H510i Matte White

Taking it a step up from the H510, the H510i brings even more features to the H Series.

Pre-installed RGB LED Strip
Built-in mounting bracket for installing your GPU vertically
Lighting and fan control supported by CAM Smart Device V2
Cable routing kit with pre-installed channels and straps
USB 3.1 Gen2-compatible USB-C connector on the front panel
The clean, modern design, iconic cable management bar, and uninterrupted tempered-glass side panel showcase your stunning build.
Two Aer F120mm fans and removable filter on PSU intake.
Removable bracket designed for radiators up to 280mm

KEY SPECS
Motherboard Support:Mini-ITX, MicroATX, ATX
Enclosure Type:Compact Mid-Tower
Case Material:SGCC Steel, Tempered Glass

DIMENSIONS
Height:460mm / 18.11 inches
Width:210mm / 8.27 inches
Depth:428mm / 16.85 inches
Weight:6.8 kg / 15lbs

COMPATIBILITY & CLEARANCE
Max CPU Cooler Clearance:165mm
Max GPU Clearance:321 - 381mm
Front Fan & Radiator Clearance:60mm
Vertical GPU Clearance:50.8mm
Cable Management:19 - 23mm

FRONT I/O PORTS
USB 3.2 Gen 2 Type-A:1
USB 3.2 Gen 1 Type-C:1
Headset Audio Jack:1

SMART DEVICE
Fan Channels:3 (10W max per channel)
NZXT RGB Connector:2 (Support up to 40 LEDs)

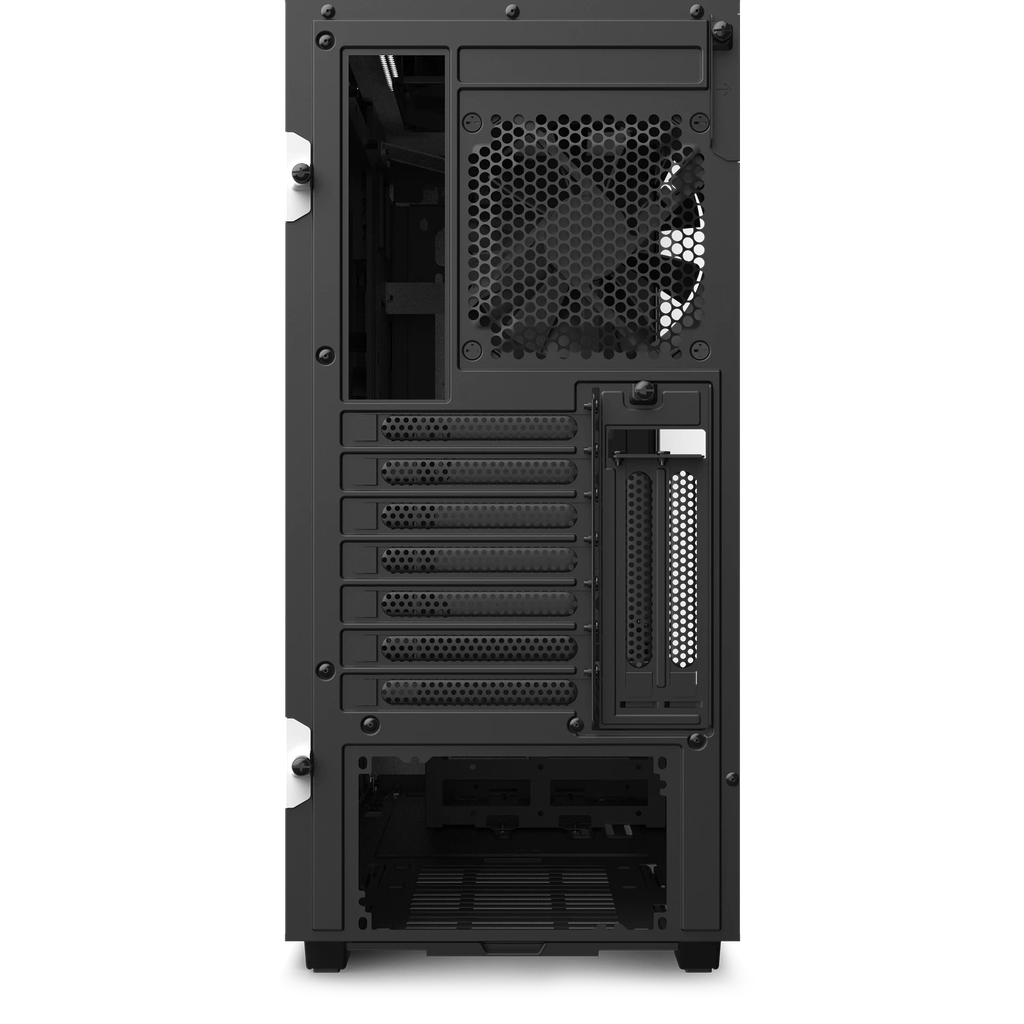

EXPANSION SLOTS
Standard:7
Vertical:2

DRIVE BAYS
2.5":2 + 1
3.5":2 + 1

FAN SUPPORT
Front:2 x 120mm / 2 x 140mm
Top:1 x 120mm / 1 x 140mm
Rear:1 x 120mm
Filters:All air intakes

RADIATOR SUPPORT
Front:280mm
Top:-
Rear:120mm

FAN SPECS
Model:Aer P 120mm (Case Version)
Speed:1,200 ± 200RPM
Airflow:50.42 CFM
Noise:28 dBA
Fan Connector:3-pin
