Let your
hardware speak.

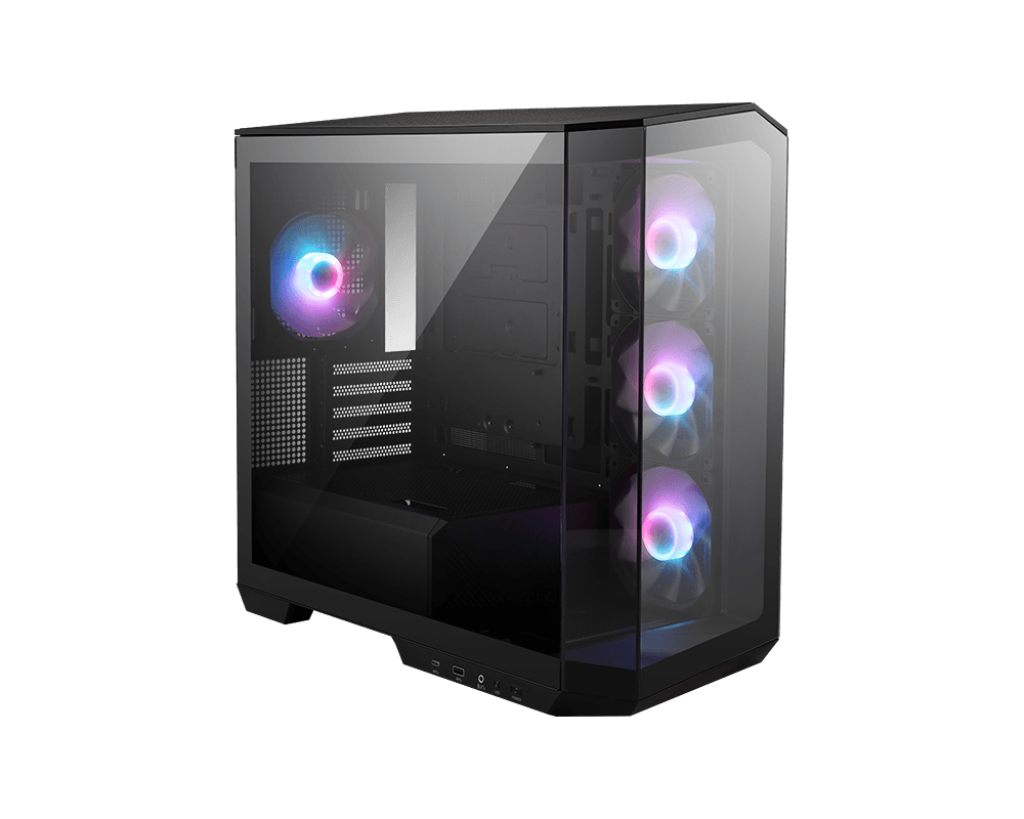

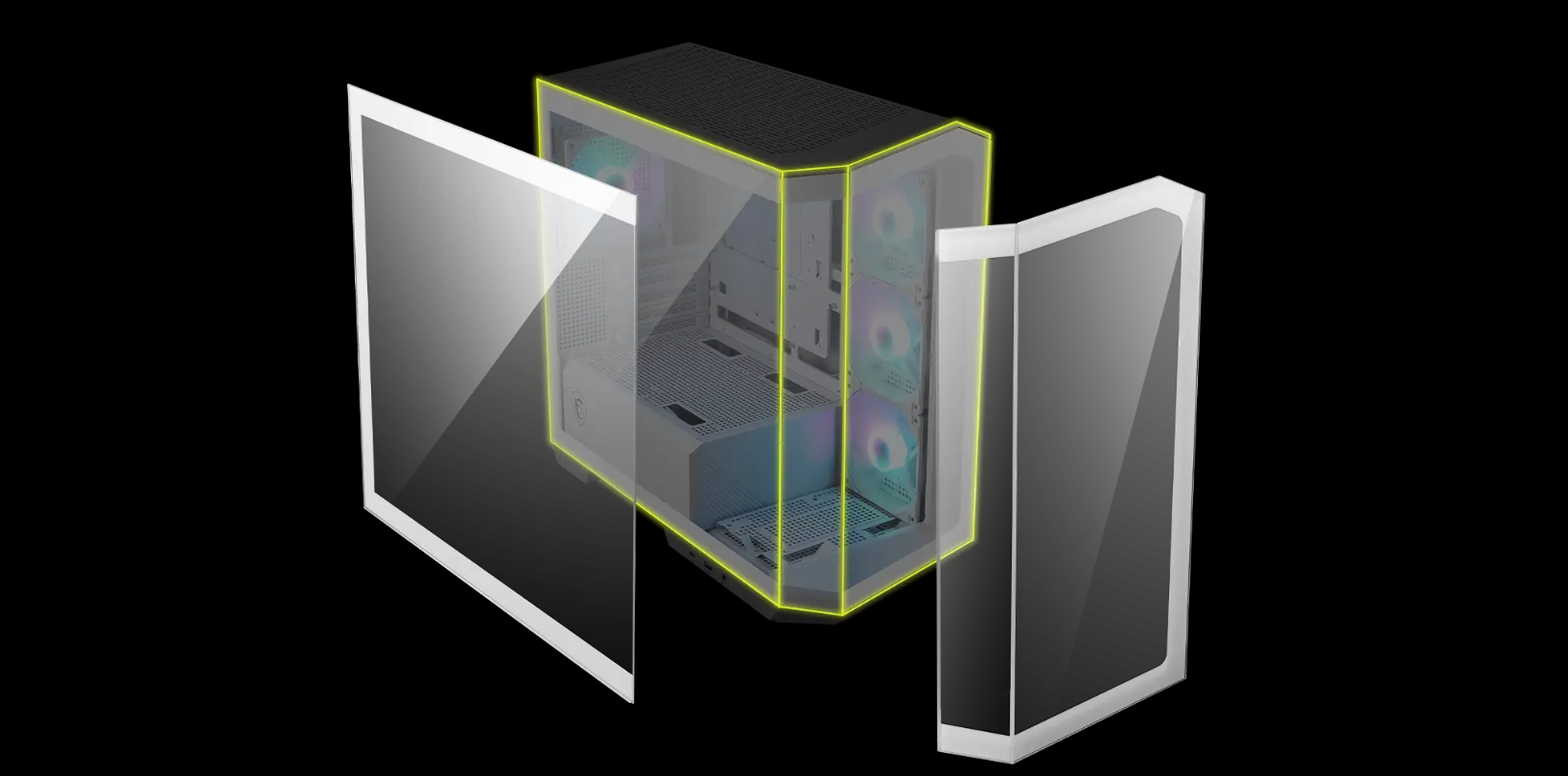

270-degree tempered glass creates a panoramic view.

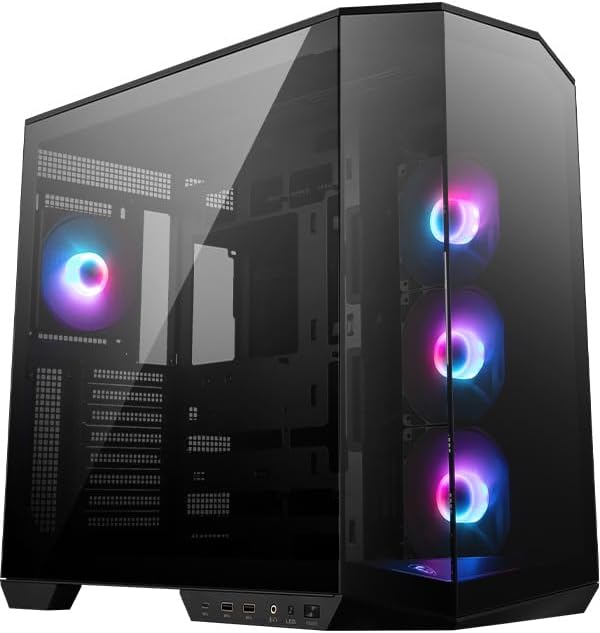

Casing MSI MAG Pano M100R PZ Black Mid Tower Gaming Case
MAG / PANO Series
MSI MAG / Gaming chassis
A newperspective.
MAG PANO M100R PZ
Build beyond the ordinary. Put your hardware, your lighting and your creativity on display.
270° PANORAMIC GLASS
BACK-CONNECT READY
4 ARGB FANS INCLUDED
Series illustration · Colour supplied depends on selected variant.
270°
Panoramic tempered glass
4 ARGB
Pre-installed 120mm fans
360mm
Top radiator support
390mm
Maximum GPU length
Engineered for your vision
Clean lines.
Clean lines.
Bold presence.
Every cable, every component, every angle. Make the entire build feel considered.
Let your
Reverse the blades.
Keep the view.

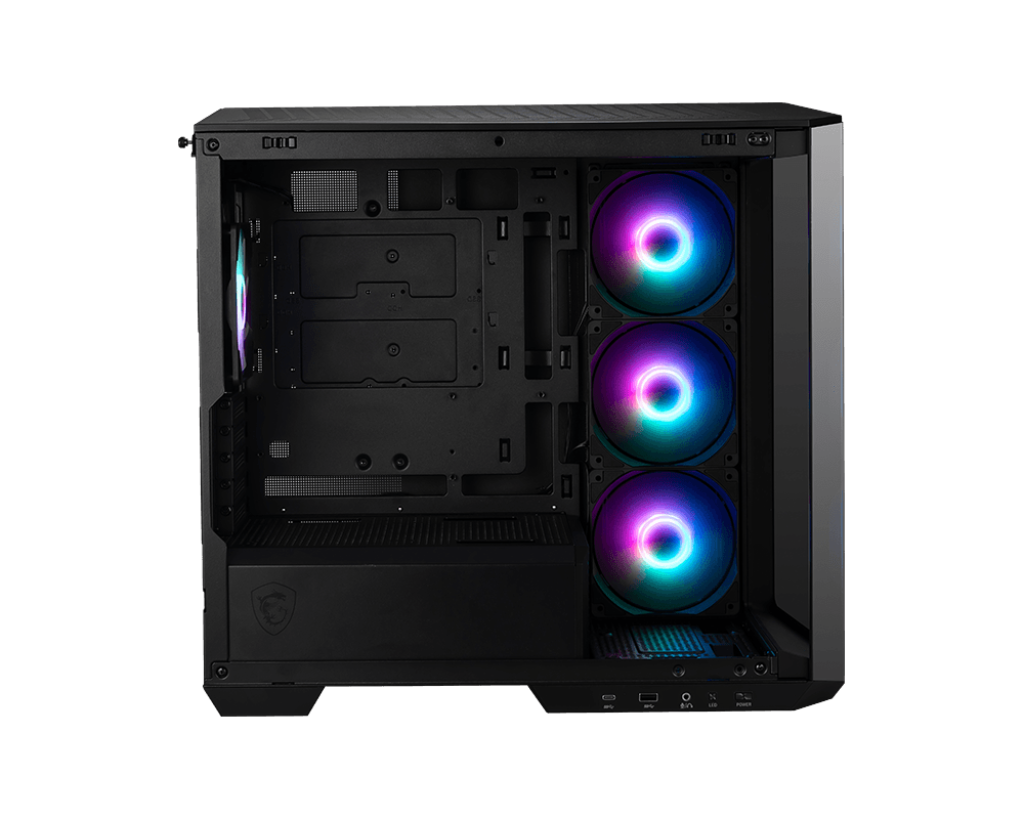

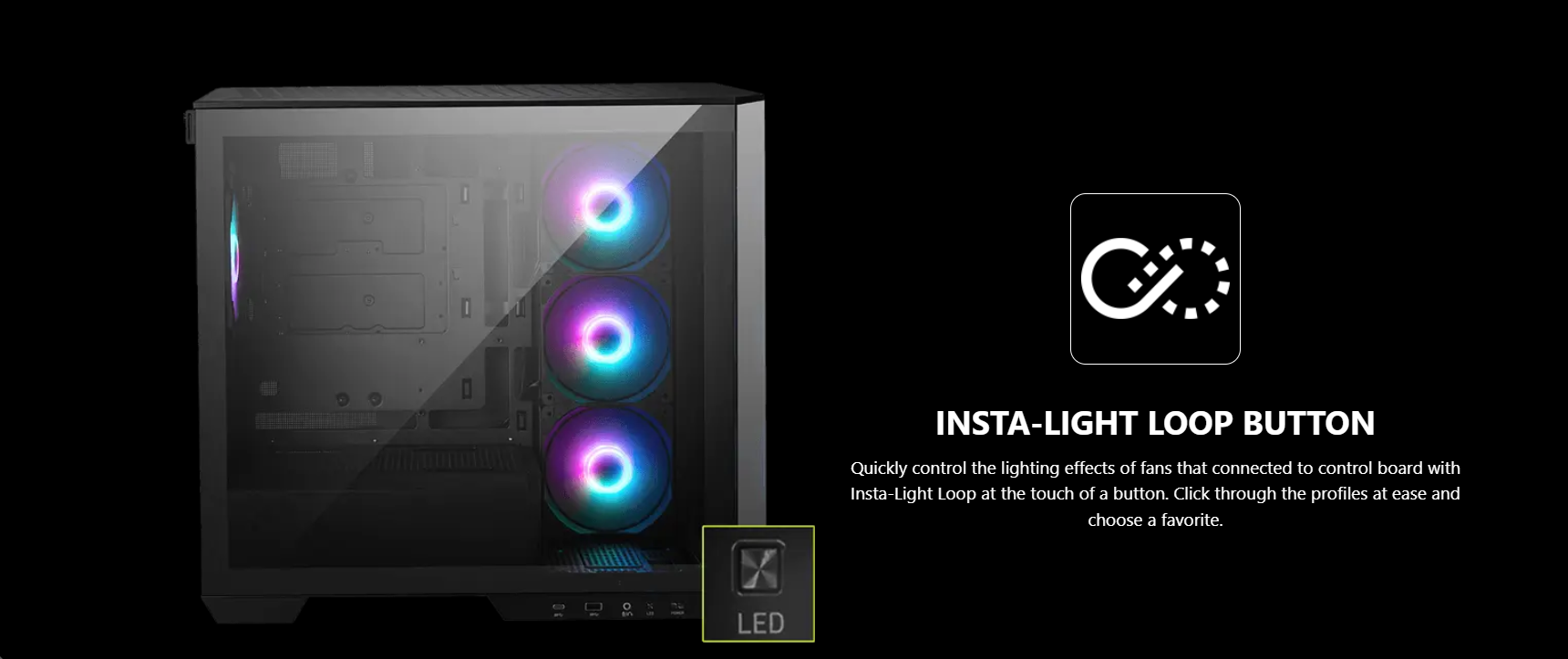

Three reverse-blade side fans and one rear ARGB fan come pre-installed.
Connections.
Behind the scenes.

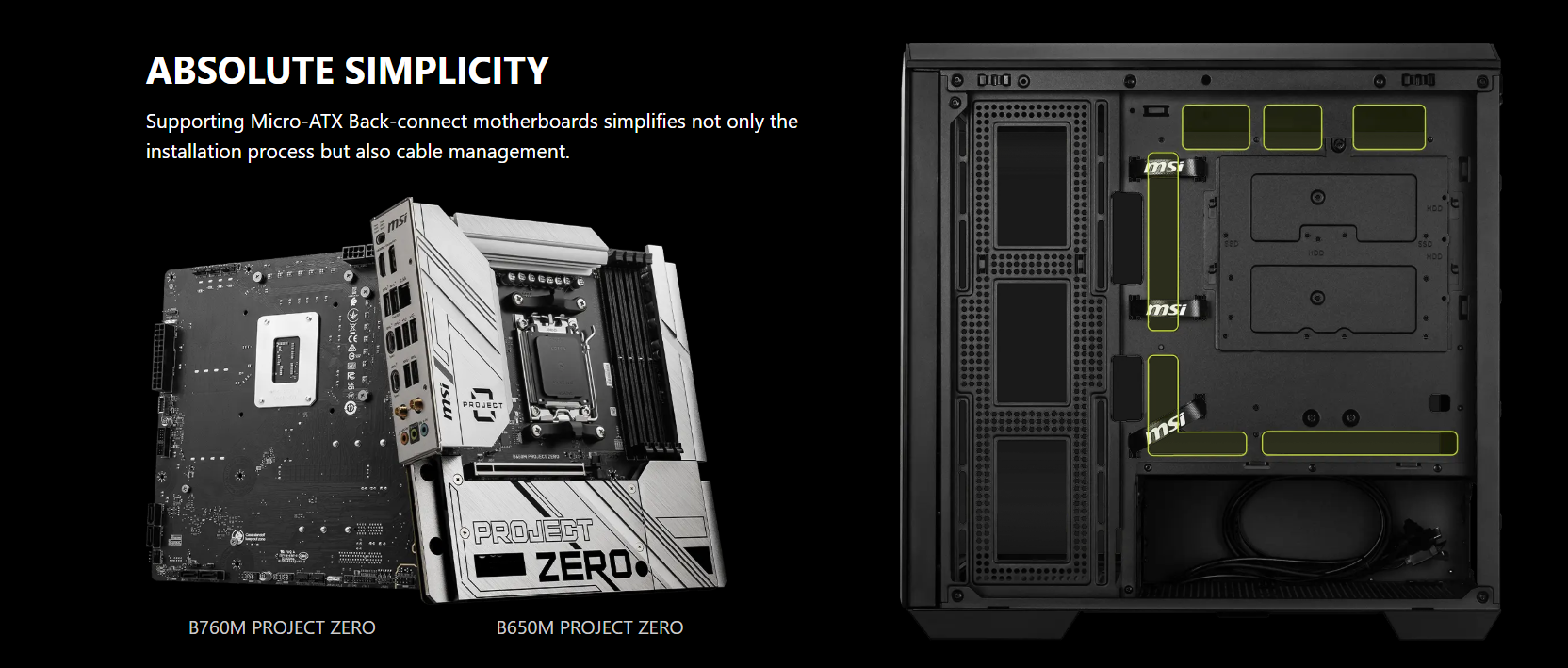

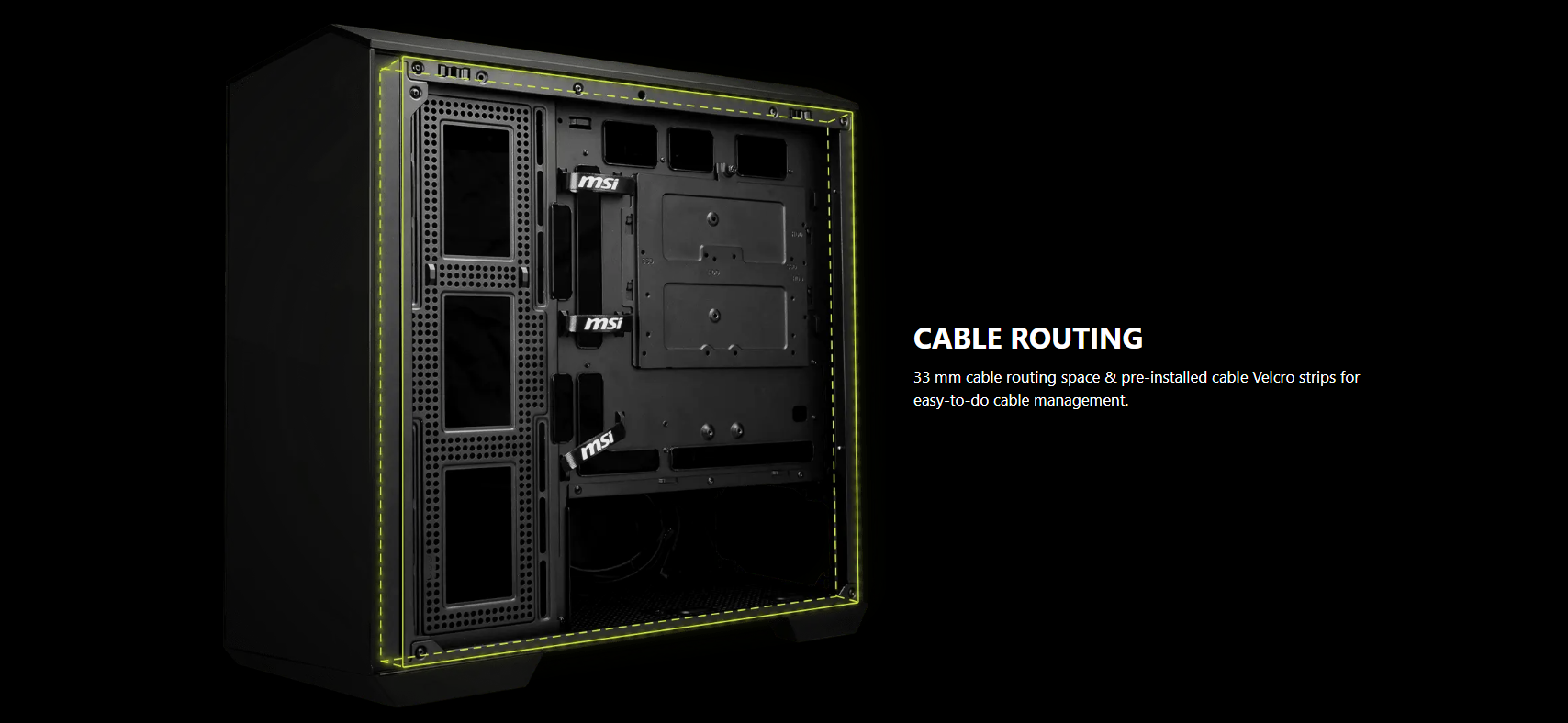

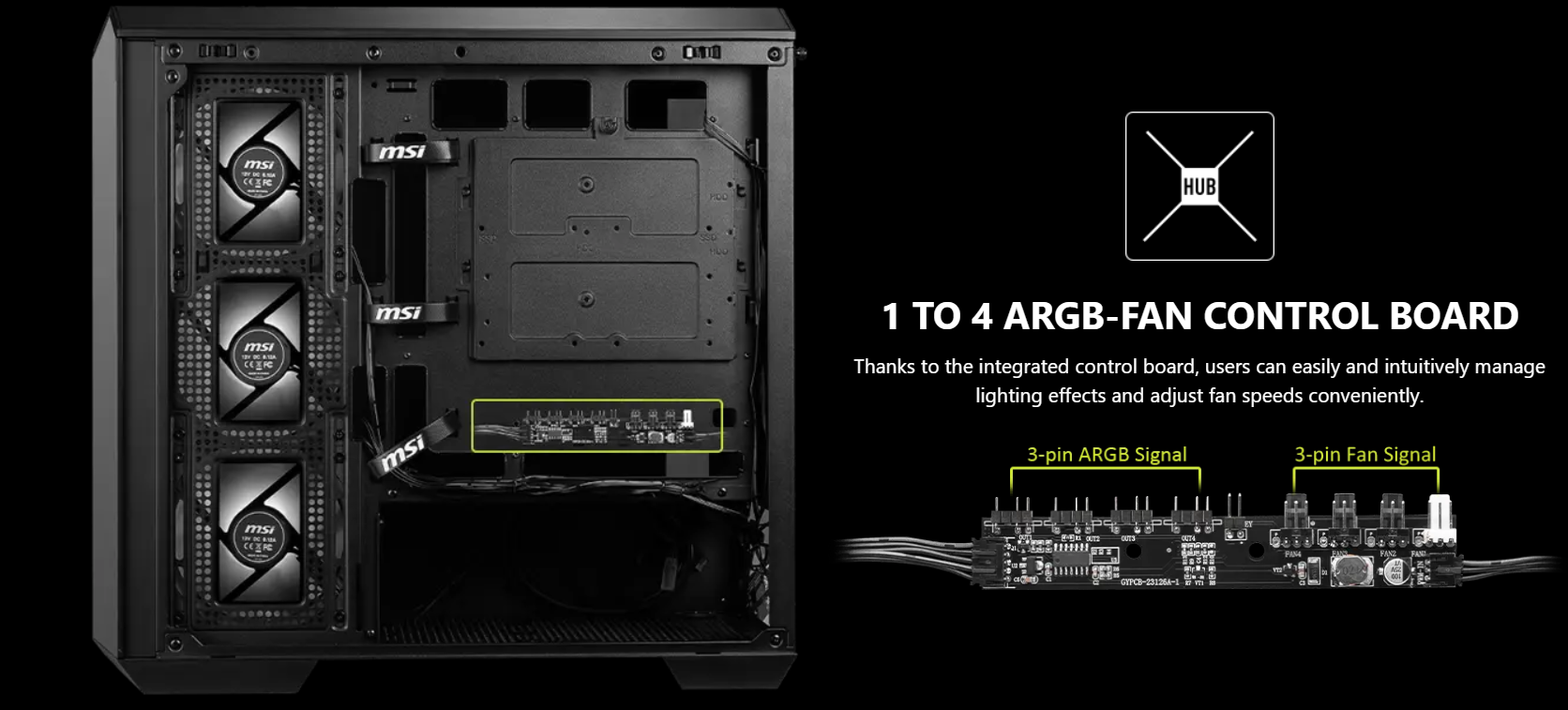

Micro-ATX back-connect support, 33mm cable-routing space and an ARGB-PWM control board.
Explore the design
PANO.
PANO.
From every angle.
Choose a view. Swipe to explore. Open any image for a closer look.
Image unavailable. Try another view.
Plan your build
The details.
The details.
Without the noise.
Chassis & compatibility
- Form factor
- Micro-ATX tower
- Motherboards
- Micro-ATX, including back-connect; Mini-ITX
- GPU clearance
- 390mm, horizontal installation only
- CPU cooler
- Up to 175mm high
- PSU
- ATX; up to 200mm long
- Expansion slots
- 5

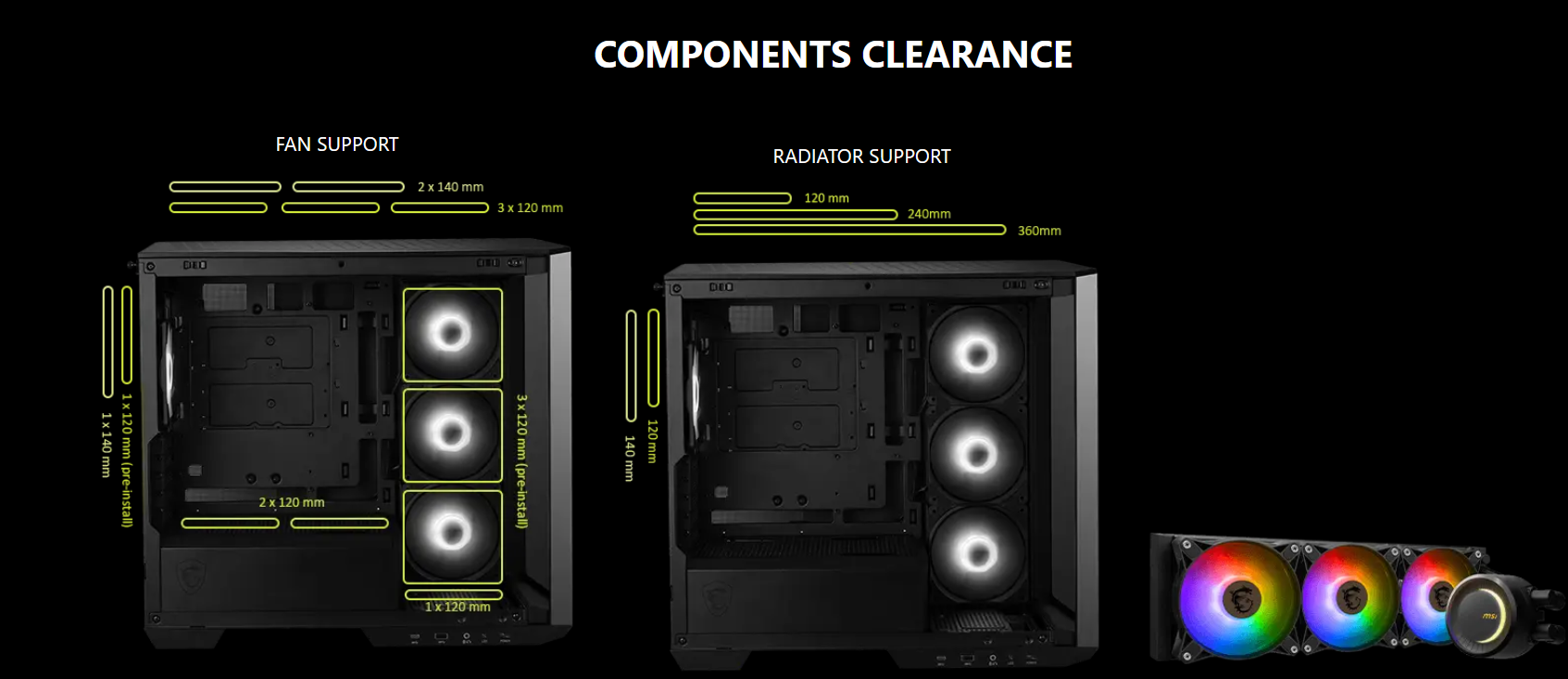

Cooling layout
- Included fans
- Side: 3 × 120mm reverse-blade ARGB
Rear: 1 × 120mm ARGB - Top fans
- 3 × 120mm or 2 × 140mm
- Other fans
-
Side: 3 × 120mm
Rear: 1 × 120/140mm
Bottom: 1 × 120mm
PSU shroud: 2 × 120mm - Radiators
- Top: 120/240/360mm
Rear: 120/140mm
Connections & storage

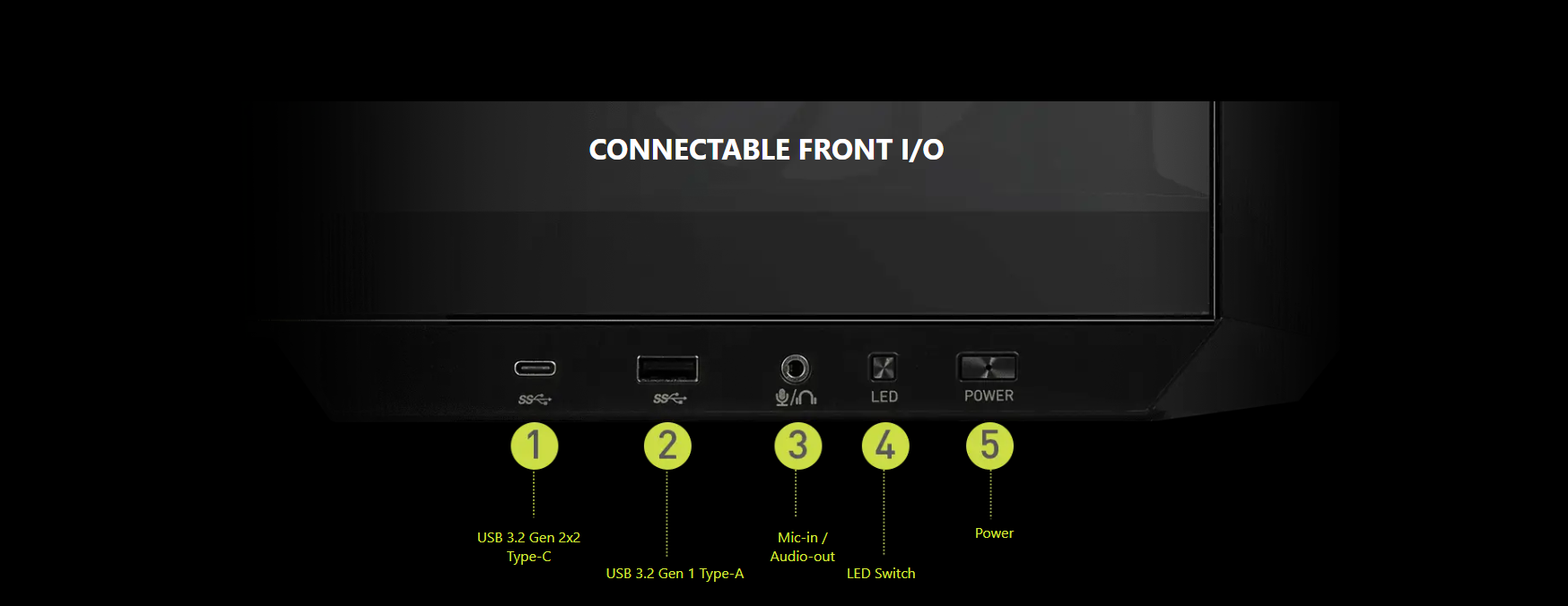

- USB

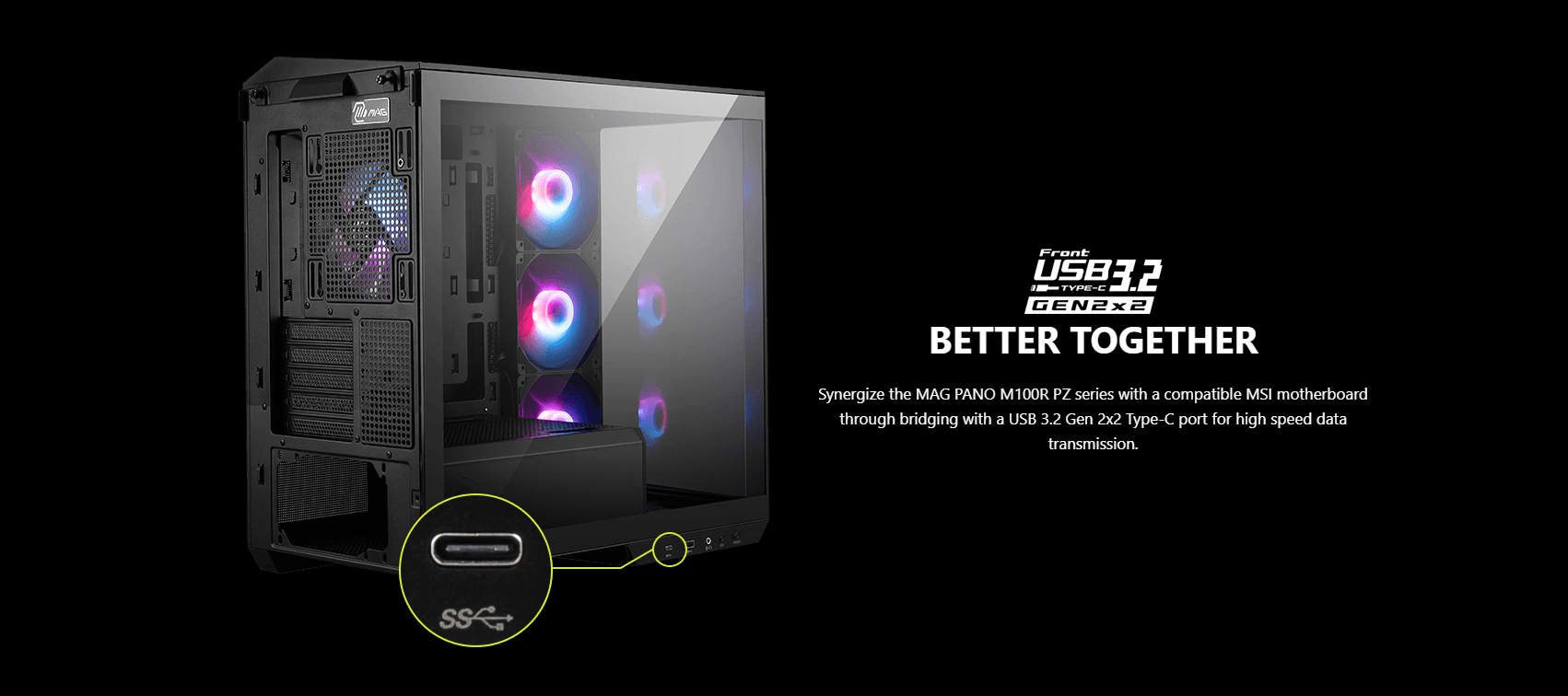

- 1 × USB 3.2 Gen 2x2 Type-C
1 × USB 3.2 Gen 1 Type-A - Audio & controls
- Audio-out/mic-in; LED switch; power

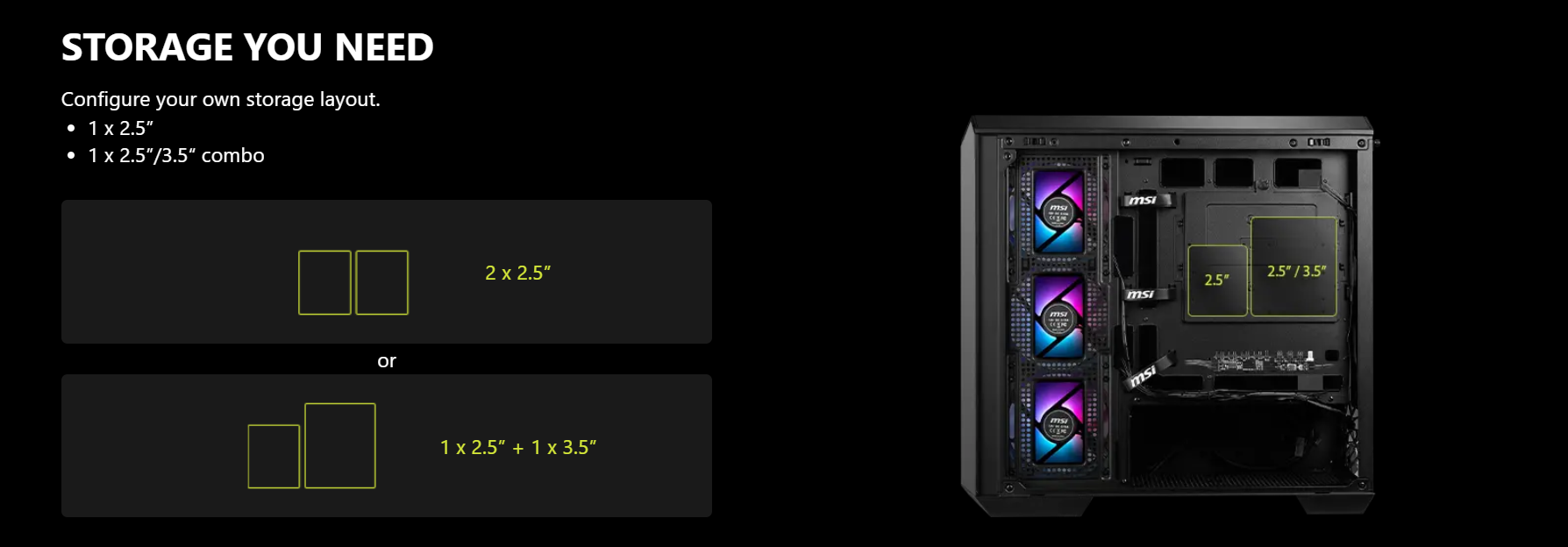

- Drive mounts
- 2 × 2.5″, or 1 × 2.5″ + 1 × 3.5″
Dimensions & finishing
- Dimensions

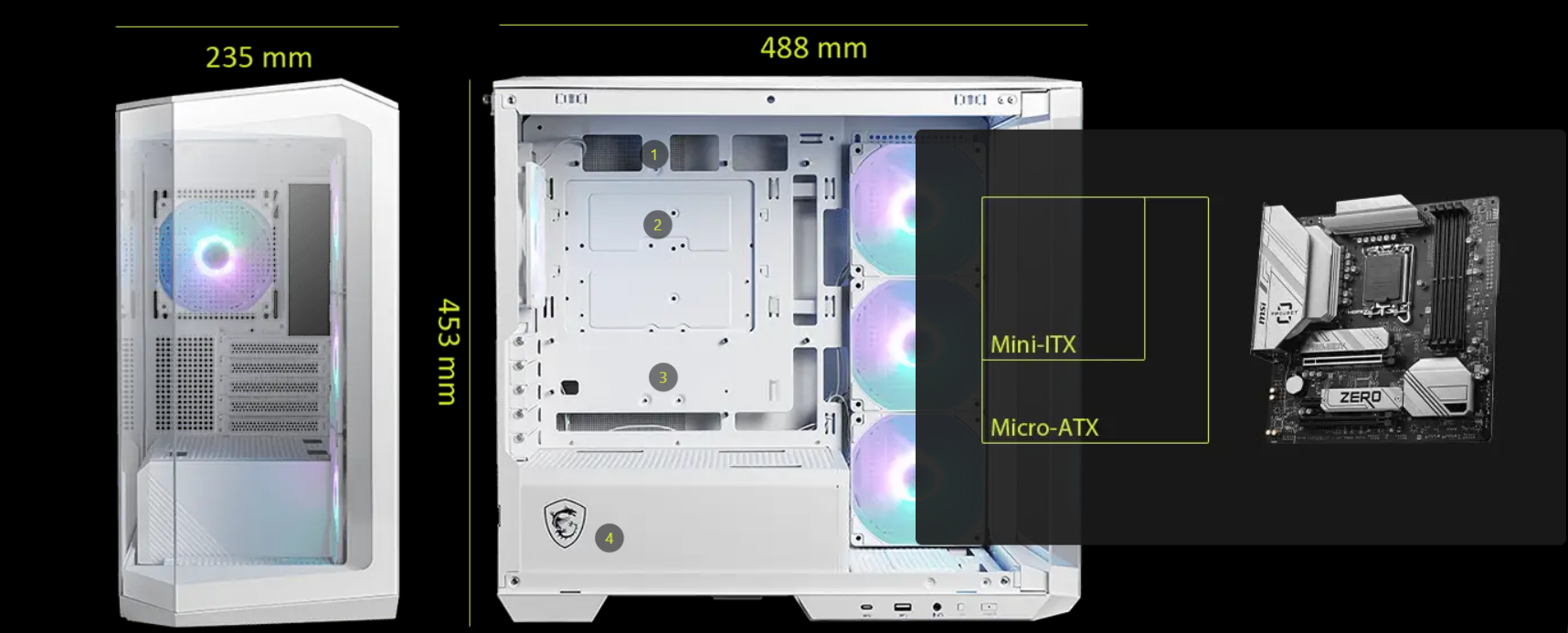

- 488 × 235 × 453mm, D × W × H
- Net weight
- 8.66kg
- Dust filters

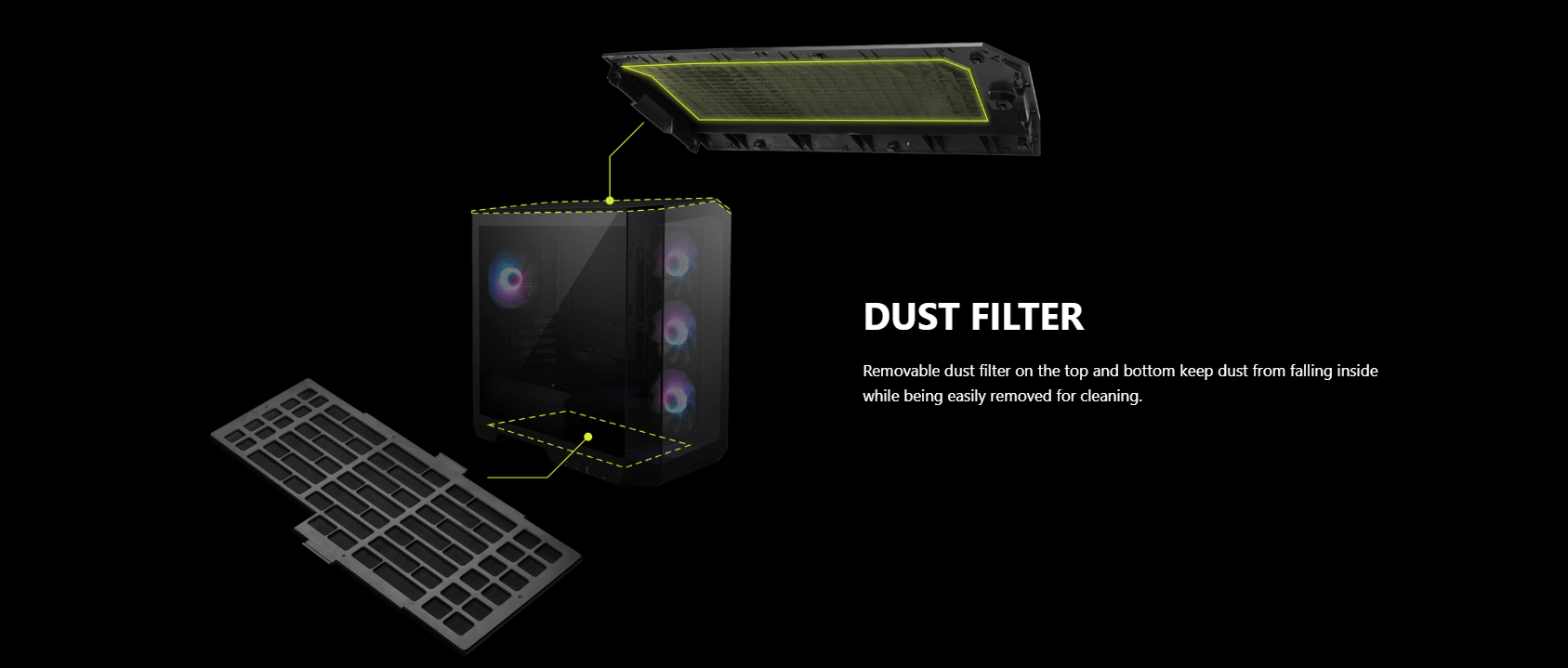

- Removable top and bottom filters
MAG / PANO Series
MSI MAG / Gaming chassis
A newperspective.
MAG PANO M100R PZ
Build beyond the ordinary. Put your hardware, your lighting and your creativity on display.
270° PANORAMIC GLASS
BACK-CONNECT READY
4 ARGB FANS INCLUDED
Series illustration · Colour supplied depends on selected variant.
270°
Panoramic tempered glass
4 ARGB
Pre-installed 120mm fans
360mm
Top radiator support
390mm
Maximum GPU length
Engineered for your vision
Clean lines.
Clean lines.
Bold presence.
Every cable, every component, every angle. Make the entire build feel considered.
Let your
hardware speak.
270-degree tempered glass creates a panoramic view.
Reverse the blades.
Keep the view.
Three reverse-blade side fans and one rear ARGB fan come pre-installed.
Connections.
Behind the scenes.
Micro-ATX back-connect support, 33mm cable-routing space and an ARGB-PWM control board.
Explore the design
PANO.
PANO.
From every angle.
Choose a view. Swipe to explore. Open any image for a closer look.
Image unavailable. Try another view.
Plan your build
The details.
The details.
Without the noise.
Chassis & compatibility
- Form factor
- Micro-ATX tower
- Motherboards
- Micro-ATX, including back-connect; Mini-ITX
- GPU clearance
- 390mm, horizontal installation only
- CPU cooler
- Up to 175mm high
- PSU
- ATX; up to 200mm long
- Expansion slots
- 5
Cooling layout
- Included fans
- Side: 3 × 120mm reverse-blade ARGB
Rear: 1 × 120mm ARGB - Top fans
- 3 × 120mm or 2 × 140mm
- Other fans
-
Side: 3 × 120mm
Rear: 1 × 120/140mm
Bottom: 1 × 120mm
PSU shroud: 2 × 120mm - Radiators
- Top: 120/240/360mm
Rear: 120/140mm
Connections & storage
- USB
- 1 × USB 3.2 Gen 2x2 Type-C
1 × USB 3.2 Gen 1 Type-A - Audio & controls
- Audio-out/mic-in; LED switch; power
- Drive mounts
- 2 × 2.5″, or 1 × 2.5″ + 1 × 3.5″
Dimensions & finishing
- Dimensions
- 488 × 235 × 453mm, D × W × H
- Net weight
- 8.66kg
- Dust filters
- Removable top and bottom filters
