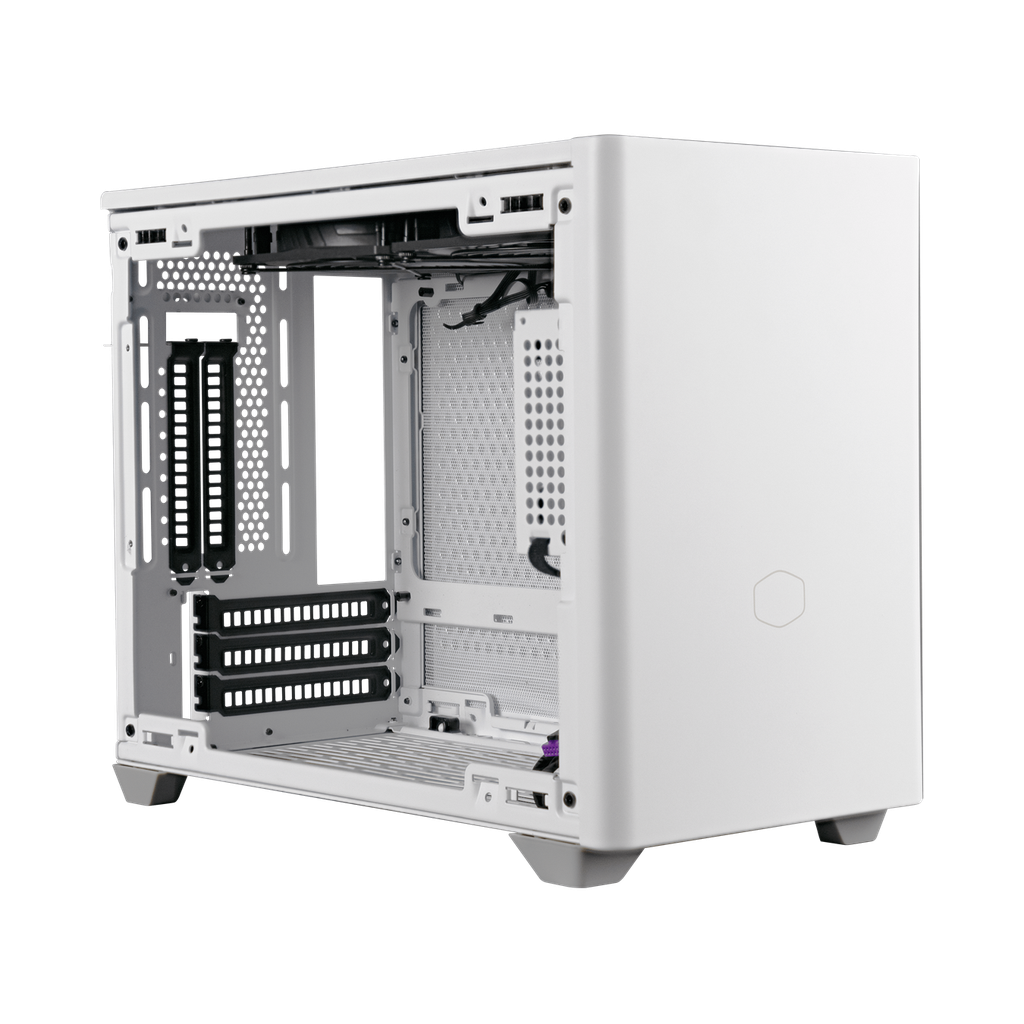

MasterBox NR200P White

Model Number MCB-NR200P-KGNN-S00, MCB-NR200P-WGNN-S00

Series MasterBox Series

Size Mini ITX

Color(s) White

Materials Steel, Plastic, Mesh, Tempered Glass

Dimensions (L x W x H) 376 x 185 x 292mm incl. Protrusions, 360 x 185 x 274mm excl. Protrusions

Volume 18.25L (exlc. Protrusions)

Motherboard Support Mini DTX, Mini ITX, Max MB size: 244 x 226mm (L x H)

Expansion Slots 3

5.25" Drive Bays 0

3.5" Drive Bays 1 (Max. 2)

2.5" / 3.5" Drive Bays (combo) 1

2.5" Drive Bays 2 (Max. 3)

I/O Panel 2x USB 3.2 Gen 1 Type-A, 1x 3.5mm Headset Jack (Audio+Mic)

Pre-installed Fans - Top 2x 120mm 650-1800RPM PWM (SickleFlow)

Pre-installed Fans - Front N/A

Pre-installed Fans - Rear N/A

Pre-installed Fans - Bottom N/A

Fan Support - Top 2x 120mm

Fan Support - Rear 1x 92mm

Fan Support - Bottom 2x 120mm (recommended slim fans for GPUs wider than 2.5 PCI slots)

Fan Support - Side 2x 120/140mm

Radiator Support - Top N/A

Radiator Support - Rear 92mm (Not Compatible with Vertical GPU Installation)

Radiator Support - Bottom 120mm, 240mm, (recommended for custom loops only)

Radiator Support - Side 120mm, 140mm, 240mm, 280mm, (not compatible with vertical GPU installation)

Clearance - CPU Cooler 76mm (GPU in vertical position), 153mm (tempered glass side panel), 155mm (vented steel side panel)

Clearance - PSU 130mm

Clearance - GFX L: 330mm (incl. power connector), H: 156mm (incl. power connector), W: 60mm (triple slot)

Dust Filters Top, Bottom, Left side, Right side

Power Supply Support SFX, SFX-L

Weight 5.93 kg

Accessories 1x PCIe 3.0 x16 riser cable

Note Single slot water-cooler GPUs or vertically mounted GPUs are recommended when using bottom radiator position, This product is only compatible for devices that support the PCI-E 3.0 specification. If you use this product with a motherboard that supports PCI-E 4.0, please enter into BIOS option and select PCI-E 3.0 before installation.

TRIPLE-SLOT GPU SUPPORT AND INCLUDED VERTICAL RISER CABLE

Triple slot GPUs are supported with a maximum length of 330mm and maximum width of 156mm allowing the fitment of large high-end graphics cards. A custom-sized riser cable is included to mount a graphics card vertically to showcase it, or allow radiator mounting at the bottom of the chassis to keep the system running as cool as it looks.

360 DEGREE ACCESSIBILITY

Every panel and frame part of the NR200P can be dismantled. Screws are used to secure the frame parts to allow advanced disassembly and multiple angles to easily work inside of the chassis.

CUSTOMIZATION

3D PRINTABLE ATX PSU BRACKET

	Higher Position:Incompatible with front-most top mounted fan. 140/150mm are recommended for maximum compatibility with GPUs longer than 240mm.
	Lower Position:Fully compatible with 2x 120mm fans in the top panel.Max GPU length supported: 240mm
