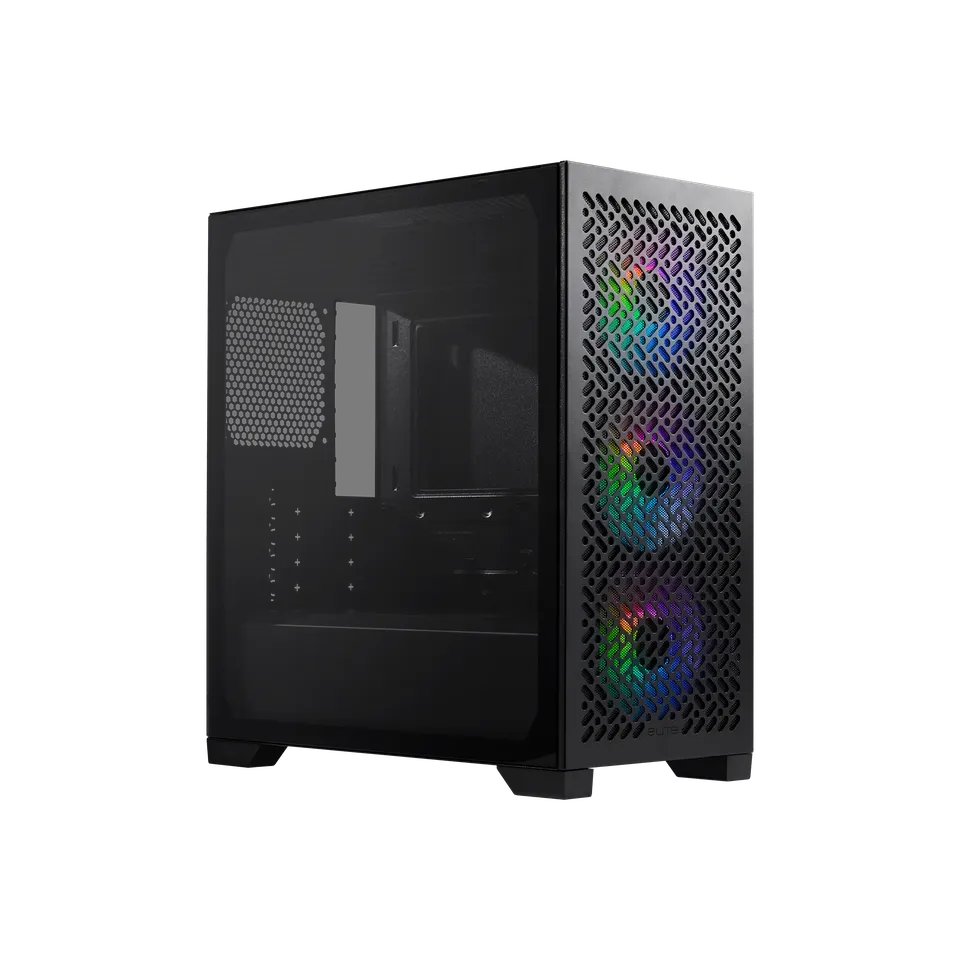

Elite 302
Compact Micro-ATX Case with 3× Pre-Installed ARGB Fans
Build a clean, compact and performance-focused PC with the Cooler Master Elite 302. Its tool-less magnetic mesh front panel and three pre-installed 120 mm ARGB fans provide strong front-to-back airflow while adding customizable lighting. Despite its compact footprint, the chassis supports graphics cards up to 365 mm, CPU coolers up to 163.5 mm, up to six fans and liquid-cooling radiators up to 360 mm at the front. A tempered-glass side panel, ventilated PSU shroud, front USB Type-C connectivity and dust filtration make the Elite 302 a practical foundation for modern Micro-ATX and Mini-ITX systems.
ELITE 302 · TEMPERED GLASS · ARGB
3×120MM ARGB · HIGH-AIRFLOW FRONT
COMPACT CHASSIS · CLEAN EXTERIOR
Built around unrestricted front-to-back airflow.
Three illuminated fans ready out of the box.

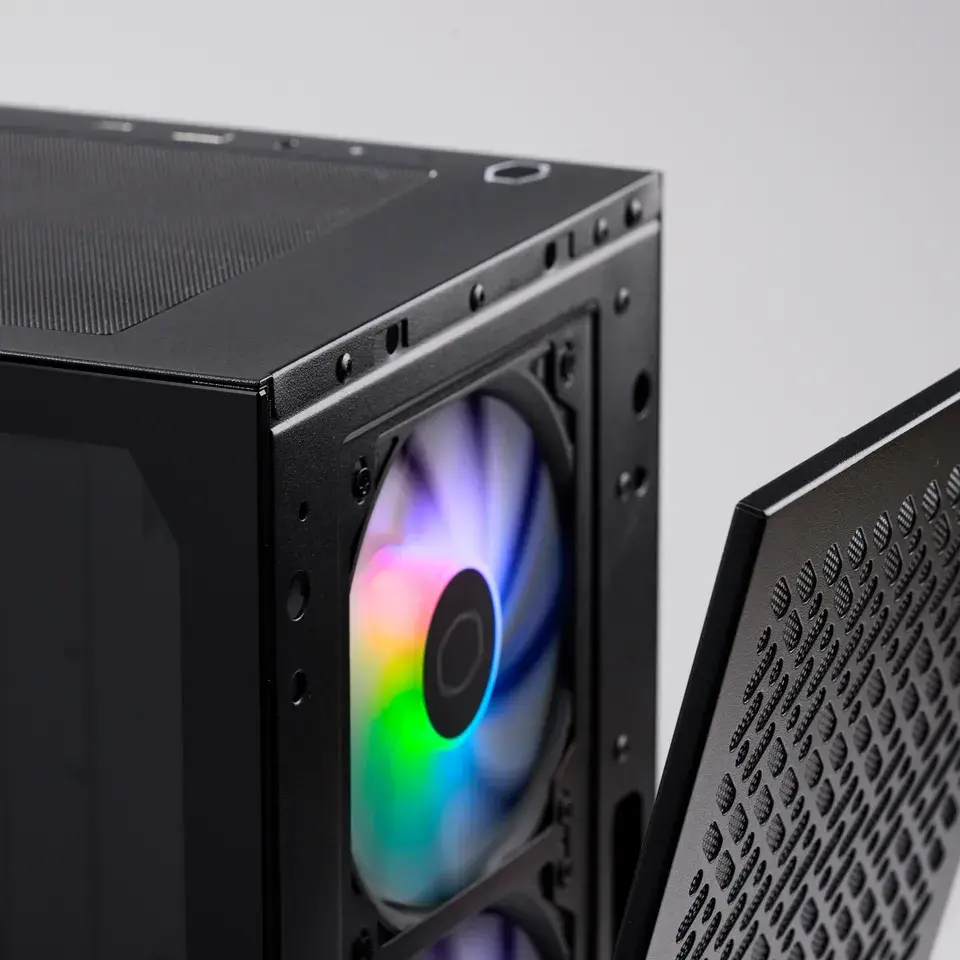

The Elite 302 includes three 120 mm ARGB front fans positioned behind a perforated mesh intake. This configuration supplies fresh air directly to the GPU, CPU and motherboard area while adding customizable lighting.
Quick access for cleaning and maintenance.
Designed for compact Micro-ATX and Mini-ITX builds.
Install GPUs up to 365 mm long.
Large graphics-card support in a compact enclosure.
With no front radiator or fan conflict, the chassis supports graphics cards up to 365 mm long.
Support for CPU coolers up to 163.5 mm.
Flexible airflow across front, top and rear.
Radiator support up to 360 mm.
Up to 280 mm radiator support on top.
Support for a 120 mm rear radiator or fan.
Showcase the system interior and ARGB lighting.
Clear view of your components.
The left side uses tempered glass, while the opposite side remains steel for practical cable-management access.

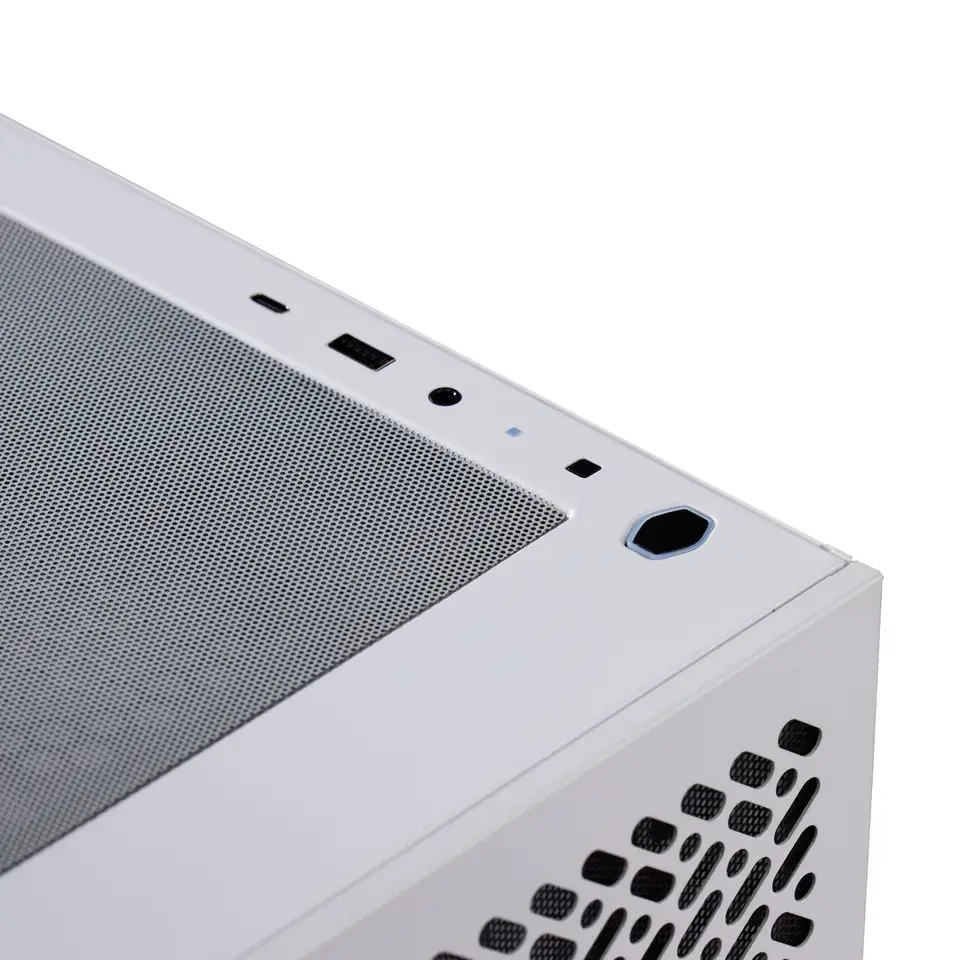

USB Type-A and USB Type-C connectivity.
Compatible with standard ATX PSUs up to 160 mm.
Ventilation supports flexible PSU fan orientation.
Clean appearance without restricting PSU airflow.

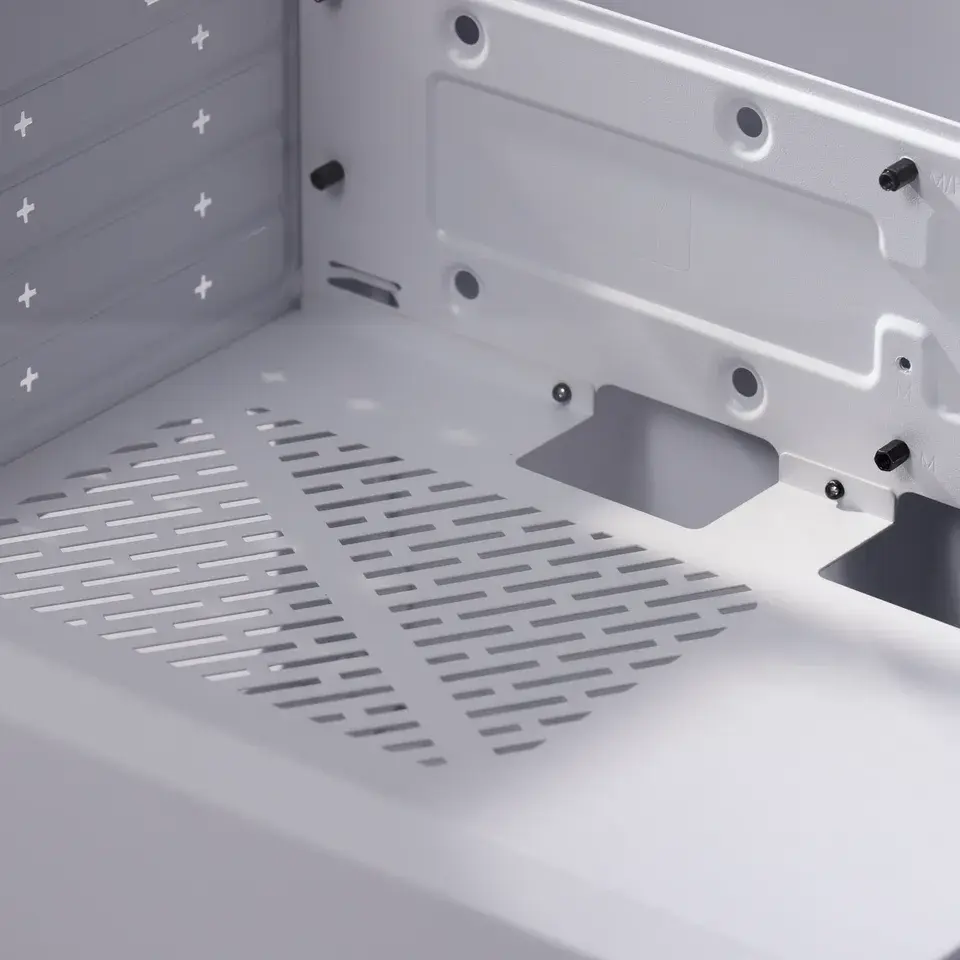

The integrated PSU cover hides cabling while ventilation above the power-supply area helps support both actively and passively cooled units.
Mount both 3.5-inch and 2.5-inch drives.
Four rear expansion positions.
18.5 mm behind the motherboard tray.
Filtering across major intake areas.
34.13-litre mini tower with room for powerful hardware.
Compact dimensions excluding external protrusions.
Covered by Cooler Master's two-year warranty.
Cooler Master Elite 302 detailed specifications.
PRODUCT
- Product Name
- Elite 302
- Black Model
- E302-KGNN-S00

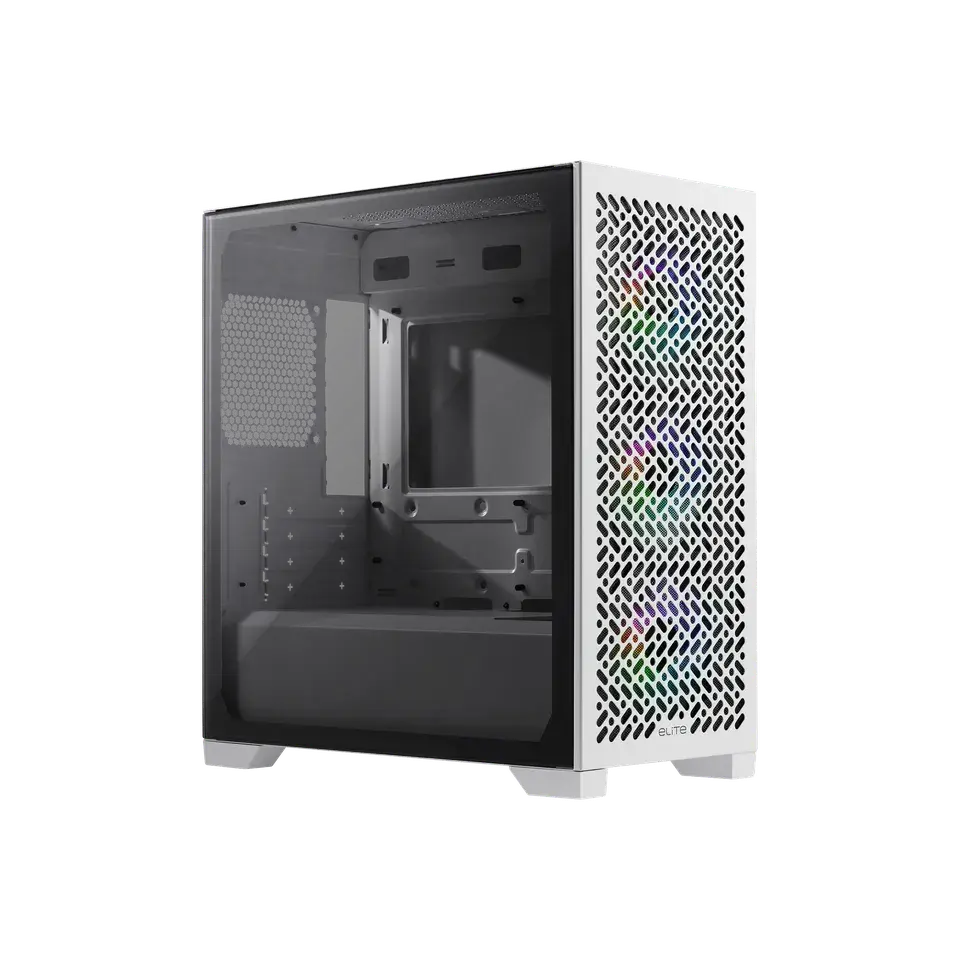

- White Model
- E302-WGNN-S00
- Series
- Elite Series
- Case Size
- Mini Tower
CONSTRUCTION
- Exterior Material
- Steel
- Left Side Panel
- Tempered Glass
- Right Side Panel
- Steel
- Color
- Black / White
MOTHERBOARD
- Micro-ATX
- Supported
- Mini-ITX
- Supported
- ATX Motherboard
- Not Supported
GPU / CPU CLEARANCE
- Maximum GPU Length
- 365 mm*
- Maximum CPU Cooler Height
- 163.5 mm
- Expansion Slots
- 4
PRE-INSTALLED COOLING
- Front Fans
- 3 × 120 mm ARGB
- Top Fans
- None
- Rear Fan
- None
FAN SUPPORT
- Front
- 3 × 120 mm
- Top
- 2 × 120 / 2 × 140 mm
- Rear
- 1 × 120 mm
- Total Fan Positions
- Up to 6
RADIATOR SUPPORT
- Front
- 120 / 240 / 360 mm
- Front 360 mm Limit
- Within 60 mm Thickness*
- Top
- 120 / 140 / 240 / 280 mm
- Rear
- 120 mm
FRONT I/O
- USB Type-A
- 1 × USB 3.2 Gen 1
- USB Type-C
- 1 × USB 3.2 Gen 1
- Audio
- 1 × 3.5 mm Combo
STORAGE
- 3.5-Inch Bays
- 1
- 2.5-Inch Bays
- 1 / Maximum 2
- 5.25-Inch Bays
- None
PSU
- PSU Support
- ATX
- Maximum PSU Length
- 160 mm
- PSU Shroud
- Ventilated
DUST & CABLE MANAGEMENT
- Front Dust Protection
- Yes
- Top Filter
- Yes
- Bottom Filter
- Yes
- Cable Routing Space
- 18.5 mm
DIMENSIONS
- Including Protrusions
- 390 × 203.5 × 430 mm
- Excluding Protrusions
- 377 × 203.5 × 410 mm
- Volume
- 34.13 L
WARRANTY
- Manufacturer Warranty
- 2 Years
