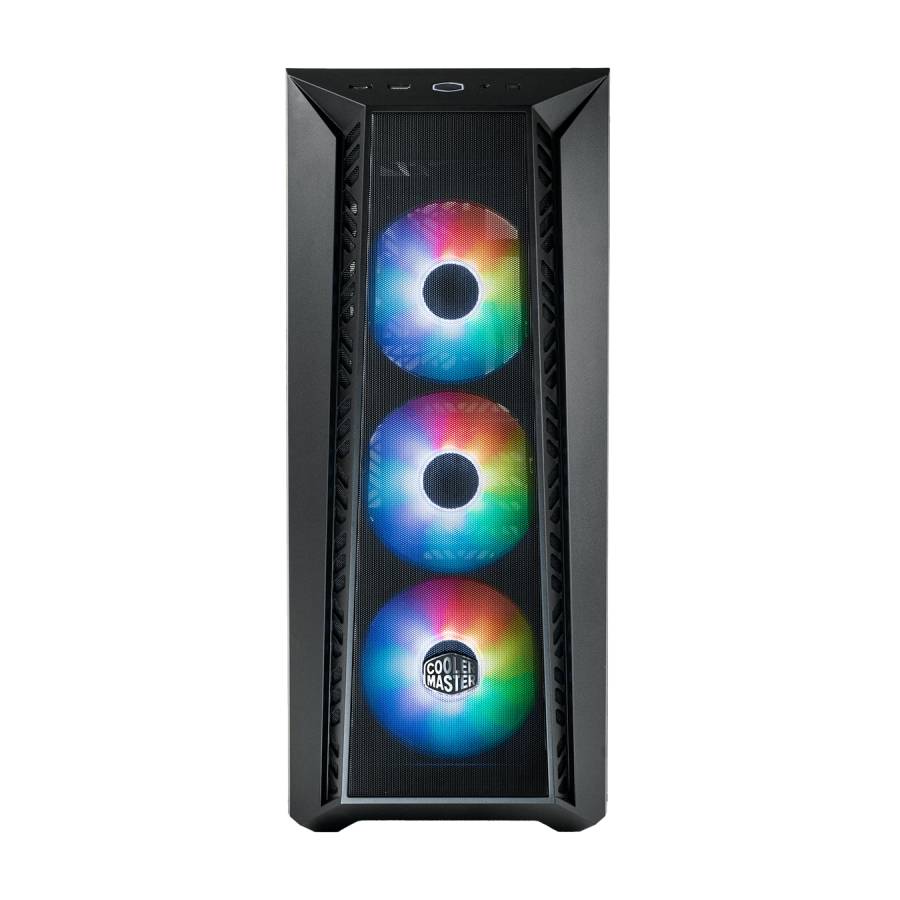

Casing Cooler Master Masterbox MB520 MESH
Cooler Master MasterBox 520 Mesh
Cooler Master MasterBox 520 Mesh is a performance-focused mid-tower chassis built around high airflow, broad cooling support and generous component compatibility. Its mesh front design works with three pre-installed SickleFlow PWM front fans and a rear 120mm fan to provide strong out-of-box ventilation.
Built to breathe
The front mesh design provides direct airflow to the system's primary cooling components.
Three 120mm SickleFlow PWM non-LED fans are pre-installed at the front.
A 120mm MasterFan Lite non-LED fan is pre-installed at the rear.
The tempered-glass side panel provides a clear view of the internal system.
The front supports radiator sizes up to 360mm.
Top radiator support reaches 360mm with a recommended maximum thickness of 55mm.
Supports graphics cards up to 410mm in length.
Supports CPU air coolers up to 165mm in height.
Supports Mini-ITX, Micro-ATX, ATX, SSI-CEB and compatible E-ATX motherboards.
Front connectivity includes USB Type-C, USB Type-A and a headset combo jack.
Supports ATX power supplies up to 200mm with up to 170mm recommended.
Dust filters are positioned at the front, top and bottom.
Mesh airflow, four included fans and room for powerful hardware.
MasterBox 520 Mesh combines an airflow-focused front panel with three pre-installed SickleFlow PWM intake fans, a rear exhaust fan, support for 360mm radiators at both the front and top, and clearance for graphics cards up to 410mm. The result is a flexible platform for gaming systems that require strong cooling and broad hardware compatibility.
Cooler Master MasterBox 520 Mesh
The Cooler Master MasterBox 520 Mesh Blackout Edition (MB520-KGNN-SNO) is a mid-tower chassis designed around unrestricted airflow and broad component compatibility. The case includes three front SickleFlow PWM non-LED 120mm fans and one rear MasterFan Lite 120mm non-LED fan. Motherboard support includes Mini-ITX, Micro-ATX, ATX, SSI-CEB and E-ATX boards up to 12 × 10.7 inches, with larger boards potentially affecting cable management. Graphics cards up to 410mm and CPU coolers up to 165mm are supported. Both the front and top accommodate radiators up to 360mm, while the rear supports a 120mm radiator. Front I/O includes USB 3.2 Gen 1 Type-A, USB 3.2 Gen 2 Type-C, a 3.5mm headset jack and reset control.
Product information
Cooler Master MasterBox 520 Mesh
Cooler Master MasterBox 520 Mesh is a performance-focused mid-tower chassis built around high airflow, broad cooling support and generous component compatibility. Its mesh front design works with three pre-installed SickleFlow PWM front fans and a rear 120mm fan to provide strong out-of-box ventilation.
Built to breathe
The front mesh design provides direct airflow to the system's primary cooling components.
Three 120mm SickleFlow PWM non-LED fans are pre-installed at the front.
A 120mm MasterFan Lite non-LED fan is pre-installed at the rear.
The tempered-glass side panel provides a clear view of the internal system.
The front supports radiator sizes up to 360mm.
Top radiator support reaches 360mm with a recommended maximum thickness of 55mm.
Supports graphics cards up to 410mm in length.
Supports CPU air coolers up to 165mm in height.
Supports Mini-ITX, Micro-ATX, ATX, SSI-CEB and compatible E-ATX motherboards.
Front connectivity includes USB Type-C, USB Type-A and a headset combo jack.
Supports ATX power supplies up to 200mm with up to 170mm recommended.
Dust filters are positioned at the front, top and bottom.
Mesh airflow, four included fans and room for powerful hardware.
MasterBox 520 Mesh combines an airflow-focused front panel with three pre-installed SickleFlow PWM intake fans, a rear exhaust fan, support for 360mm radiators at both the front and top, and clearance for graphics cards up to 410mm. The result is a flexible platform for gaming systems that require strong cooling and broad hardware compatibility.
Cooler Master MasterBox 520 Mesh
The Cooler Master MasterBox 520 Mesh Blackout Edition (MB520-KGNN-SNO) is a mid-tower chassis designed around unrestricted airflow and broad component compatibility. The case includes three front SickleFlow PWM non-LED 120mm fans and one rear MasterFan Lite 120mm non-LED fan. Motherboard support includes Mini-ITX, Micro-ATX, ATX, SSI-CEB and E-ATX boards up to 12 × 10.7 inches, with larger boards potentially affecting cable management. Graphics cards up to 410mm and CPU coolers up to 165mm are supported. Both the front and top accommodate radiators up to 360mm, while the rear supports a 120mm radiator. Front I/O includes USB 3.2 Gen 1 Type-A, USB 3.2 Gen 2 Type-C, a 3.5mm headset jack and reset control.
Product information
| Brand | Cooler Master |
