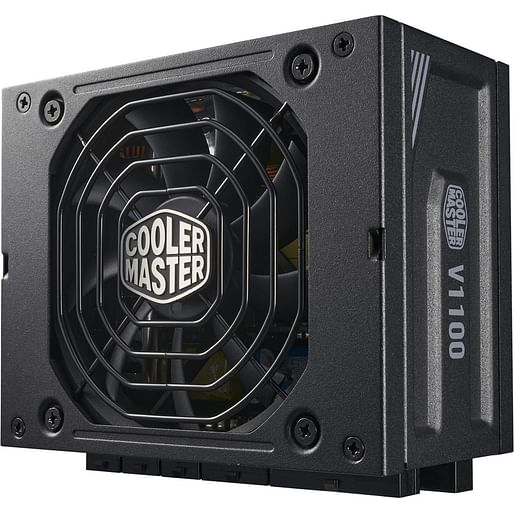

Power Supply Cooler Master V SFX 1100W Platinium (MPZ-D001-SFAP-BK2-GL)
V SFX Platinum 1100
Cooler Master V SFX Platinum 1100 (MPZ-D001-SFAP-BK2-GL) delivers 1100 watts of high-density power from a true SFX enclosure. ATX 3.0 support, a 90-degree 12VHPWR GPU cable, 80 PLUS Platinum efficiency, advanced internal miniaturization and a fully modular cable system make it a high-performance platform for compact gaming and enthusiast systems.
Extreme power density in a true SFX form factor
Delivers 1100 watts of high-density power for demanding compact systems.
Packs enthusiast-level output into a compact 100 × 125 × 63.5mm chassis.
Designed around the ATX 3.0 power standard for modern hardware.
High-efficiency Platinum operation helps reduce wasted energy and heat.
Cooler Master specifies at least 92% efficiency under typical load.
The included PCIe 5.0 12VHPWR cable can deliver up to 600W to the GPU.
A right-angle 12+4-pin connector helps improve routing in compact builds.
Connect only the cables needed by the system to reduce internal clutter.
A compact Fluid Dynamic Bearing fan provides dependable active cooling.
Built for operation across an ambient range reaching up to 50°C.
Integrated thermal structures improve heat transfer within the compact SFX chassis.
Includes OPP, OVP, OTP, OCP, SCP, UVP, surge and inrush protection.
1100 watts of Platinum-rated power in a true SFX enclosure with ATX 3.0 support and a 90-degree 12VHPWR GPU cable.
V SFX Platinum 1100 is engineered around extremely high power density. Cooler Master uses flat copper wiring on the DC-DC choke, flat transformer piling, an aluminum plate dissipation structure around the full-bridge LLC and advanced manufacturing techniques to miniaturize internal components while maintaining thermal performance. ATX 3.0 support and the included 90-degree 12VHPWR cable provide compatibility with modern high-power graphics hardware, while fully modular cabling keeps compact systems cleaner and easier to assemble.
Cooler Master V SFX Platinum 1100
The Cooler Master V SFX Platinum 1100 (MPZ-D001-SFAP-BK2-GL) is an 1100W fully modular SFX power supply designed for high-performance compact systems. The platform supports ATX 3.0 and SFX 12V Version 3.42, uses Active PFC and accepts a full-range 100–240V AC input at 50–60Hz. Efficiency is specified at ≥92% under typical load with an 80 PLUS Platinum rating. Cooling is handled by a 92mm Fluid Dynamic Bearing fan. The enclosure measures only 100 × 125 × 63.5mm, operates across a 0–50°C ambient temperature range and provides a hold-up time of at least 16ms at 70% load. A 90-degree 12+4-pin 12VHPWR cable supports PCIe 5.0 graphics hardware with up to 600W available through the connector.
