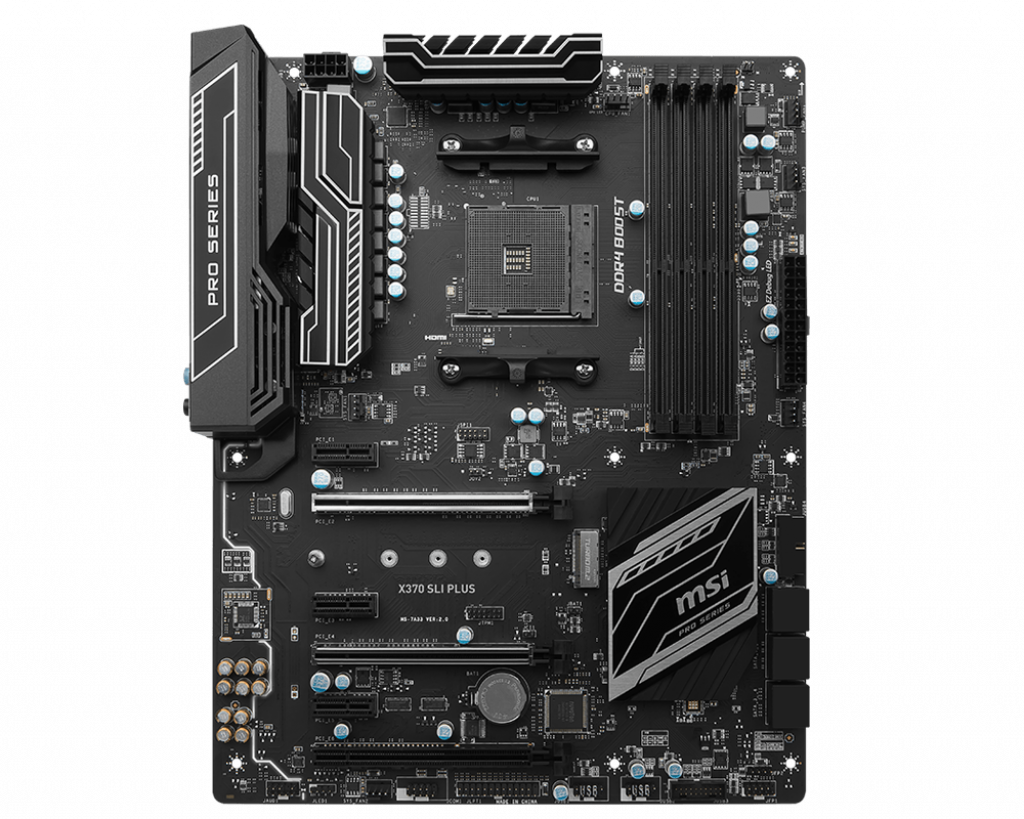

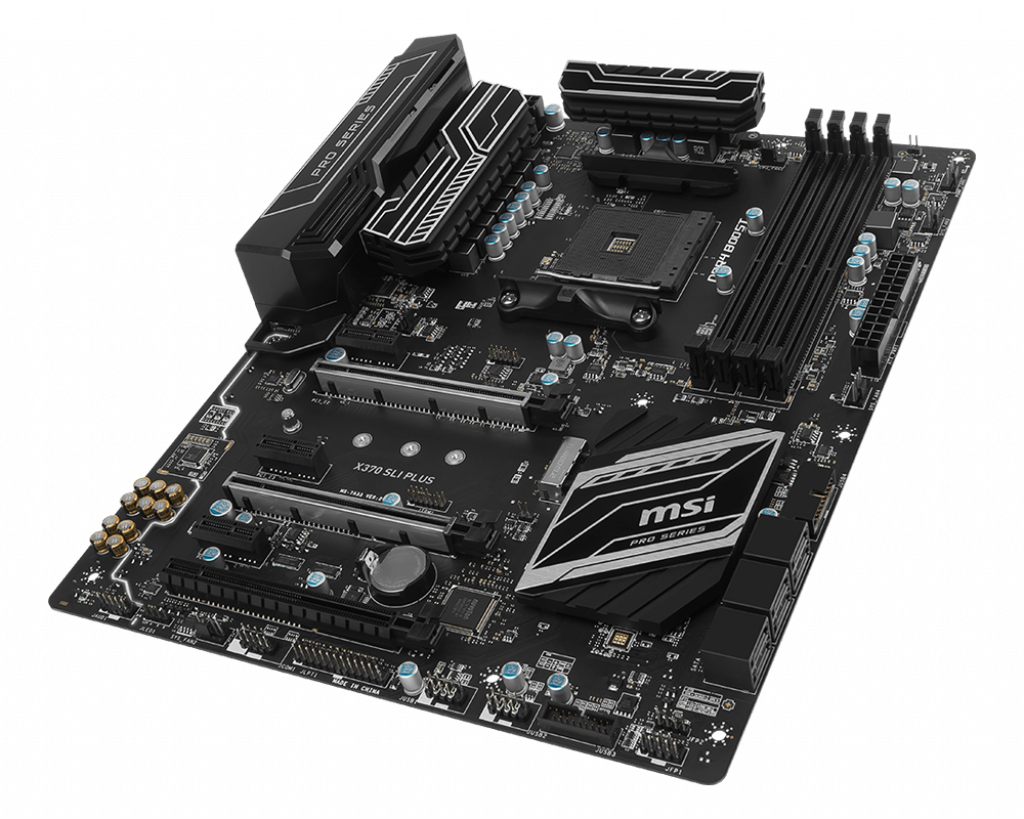

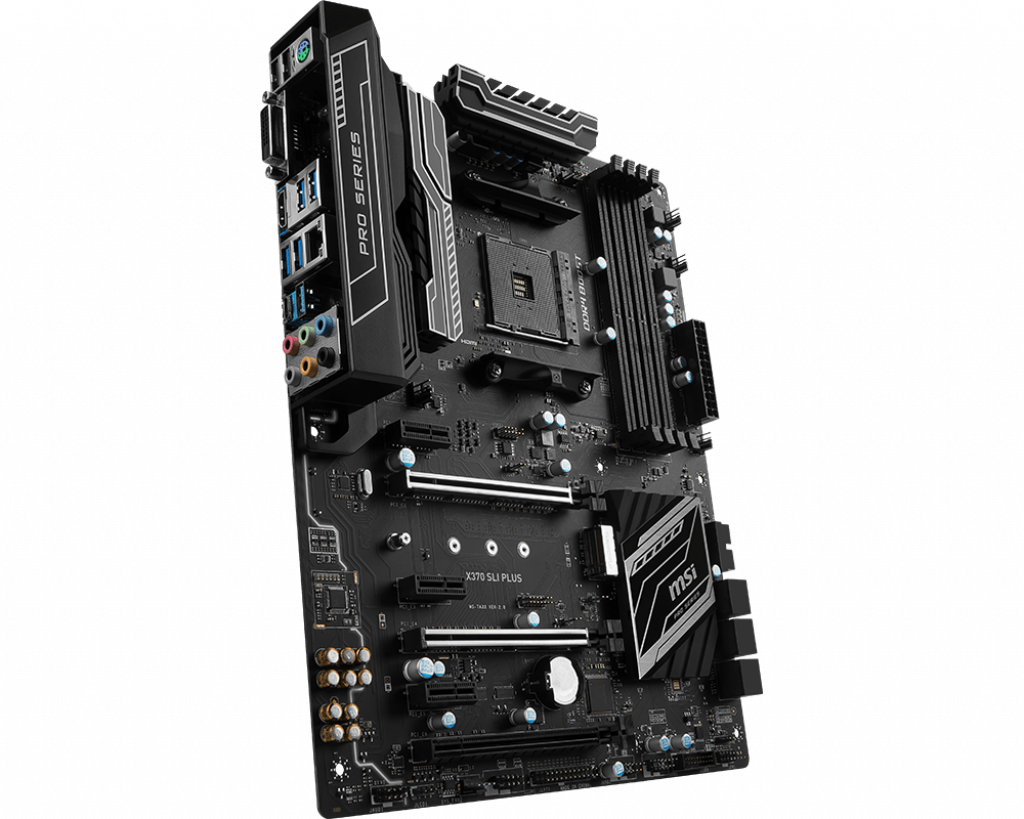

Motherboard AM4/DDR4 MSI (X370 SLI Plus)
/shop/mb-am4-msi-x370-sli-plus-motherboard-am4-ddr4-msi-x370-sli-plus-2969Terms and Conditions
Shipping: 2-6 Business Days
PROCESSOR
Supports AMD® Ryzen 1st and 2nd Generation/ Ryzen™ with Radeon™ Vega Graphics/ Athlon™ with Radeon™ Vega Graphics and A-series / Athlon™ X4 Processors for Socket AM4
CHIPSET
AMD® X370 Chipset
MEMORY
- 4 x DDR4 memory slots, support up to 128GB *ComboPI 1.0.0.3-based and above BIOS are required.
- Supports DDR4 1866/ 2133/ 2400/ 2667(OC)/ 2933(OC)/ 3200(OC)+ Mhz1
- Dual channel memory architecture
- Supports non-ECC, un-buffered memory
- Supports ECC UDIMM memory (non-ECC mode)
- A-series / Athlon™ X4 processors support up to 2400 MHz only. Please refer www.msi.com for more information on compatible memory.
SLOTS
- 2x PCIe 3.0 x16 slots (PCIE_2, PCIE_4)
- RYZEN series processors support x16/x0, x8/x8 mode
- Ryzen™ with Radeon™ Vega Graphics and A-series / Athlon™ X4 processors support x8/x0 mode/li>
- AMD® Athlon™ with Radeon™ Vega Graphics processors support x4/x0 mode
- 1x PCIe 2.0 x16 slot (PCIE_6, supports x4 mode)1
- 3x PCIe 2.0 x1 slots
- PCI_E6 slot will be PCIe 2.0 x1 when installing device in any PCIe x1 slot.
ONBOARD GRAPHICS
- 1 x DVI-D port, supporting a maximum resolution of 1920x1200@60Hz, 1600x1200@60Hz1,3
- 1 x HDMI™ 1.4 port, supports a maximum resolution of 2560x1600@60Hz1,2,3
- Only support when using AMD® Ryzen™ with Radeon™ Vega Graphics/ Athlon™ with Radeon™ Vega Graphics and A-series Processors
- Due to CPU spec limitation, when using AMD Athlon™ with Radeon™ Vega Graphics Processors, it could only support HDMI display output
- Maximum shared memory of 2048 MB
MULTI-GPU
- RYZEN series processor
- Supports 2-Way NVIDIA® SLI™ Technology
- Supports 3-Way AMD® CrossFire™ Technology
- AMD® Athlon™ with Radeon™ Vega Graphics and A-series / Athlon™ X4 Processors
- Supports 2-Way AMD® CrossFire™ Technology
STORAGE
AMD® X370 Chipset
- 6 x SATA 6Gb/s ports
- 1 x M.2 slot (Key M)
- Supports PCIe 3.0 x4 (RYZEN series processor) or PCIe 3.0 x2 (AMD® Athlon™ with Radeon™ Vega Graphics and A-series / Athlon™ X4 Processors) and SATA 6Gb/s 2242/ 2260 /2280/ 22110 storage devices
- Supports RAID 0, RAID 1 and RAID 10
USB
ASMedia® ASM2142 Chipset
- 1 x USB 3.1 Gen2 (SuperSpeed USB 10Gbps) Type-C port on the back panel
- 1 x USB 3.1 Gen2 (SuperSpeed USB 10Gbps) Type-A port on the back panel
AMD® X370 Chipset
- 4x USB 3.1 Gen1 (SuperSpeed USB) ports available through the internal USB connectors
- 6x USB 2.0 (High-speed USB) ports (2 Type-A ports on the back panel, 4 ports available through the internal USB connectors)
AMD® CPU
- 4x USB 3.1 Gen1 (SuperSpeed USB) Type-A ports on the back panel
AUDIO
Realtek® ALC892 Codec
- 7.1-Channel High Definition Audio
LAN
- 1 x Realtek® 8111H Gigabit LAN controller
INTERNAL CONNECTORS
- 1 x 24-pin ATX 12V power connector
- 1 x 8-pin ATX 12V power connector
- 6 x SATA 6Gb/s connectors
- 2 x USB 2.0 connectors (support additional 4 USB 2.0 ports)
- 2 x USB 3.1 Gen1 connectors (support additional 4 USB 3.1 Gen1 ports)
- 1 x 4-pin CPU fan connector
- 1 x 4-pin PUMP fan connector (supports up to 2A)
- 4 x 4-pin system fan connectors
- 1 x RGB LED connector
- 1 x TPM module connector
- 1 x Serial port connector
- 1 x Parallel port connector
- 1 x Front panel audio connector
- 2 x System panel connectors
- 1 x Chassis Intrusion connector
- 1 x Clear CMOS jumper

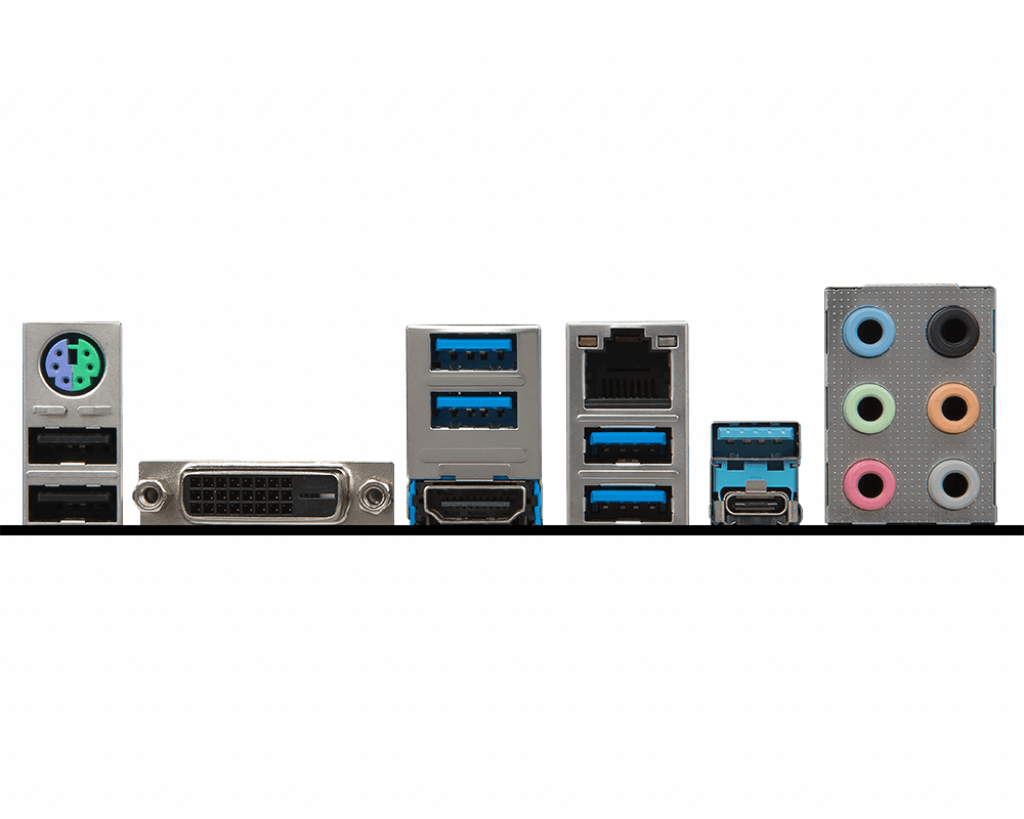

BACK PANEL PORTS
- PS/2 Port
- USB 3.1(Gen 1)
- LAN Port
- HD Audio Connectors
- USB 2.0 Ports
- DVI-D
- HDMI
- USB 3.1(Gen 1)
- USB 3.1(Gen 2)
DIMENSIONS
- 12.0 in. x 9.6 in. (30.4 cm x 24.3 cm)
- ATX Form Factor
MOUNTING
9 mounting holes
OPERATING SYSTEM
- Support for Windows® 10 64-bit
- Support for Windows® 7 64-bit
