- Casing NZXT H510 Elite Tempered Glass White

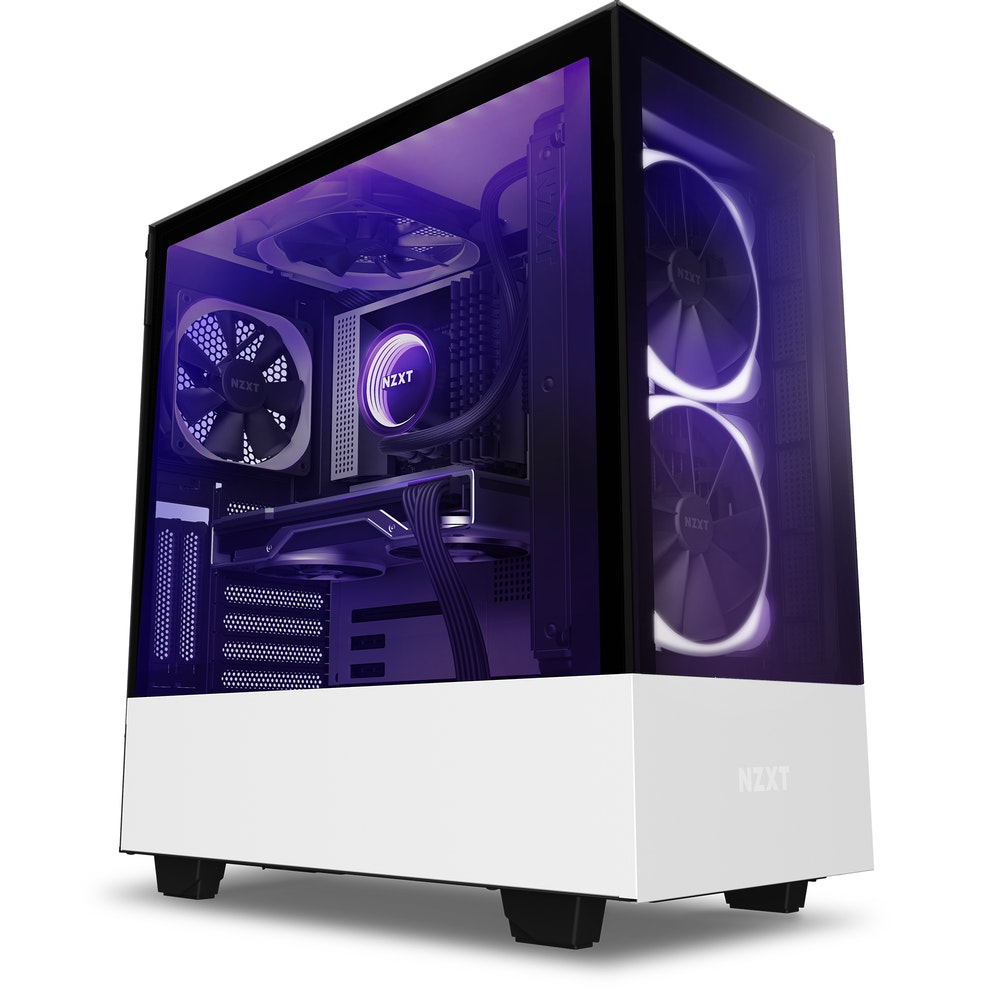

Casing NZXT H510 Elite Tempered Glass White
/shop/ca-nzxt-h510-w-elite-casing-nzxt-h510-elite-tempered-glass-white-2200Terms and Conditions
Shipping: 2-6 Business Days
This compact mid-tower is ideal for highlighting RBG-focused builds with a front tempered glass panel that showcases included Aer 2 RGB fans along with the easy-to-build-in features of the H510.
Two tempered glass panels for showcasing stunning RGB builds.
Two Aer RGB 2 fans and one RGB LED are included
Removable radiator mounting bracket and simple-to-use SSD trays
Patented cable management system
Smart Device 2 with two RGB lighting channels and three fan channels that support 0dB modes for voltage-regulated or PWM fans
USB 3.1 Gen 2-compatible USB-C connector
Iconic cable management bar
KEY SPECS
Motherboard Support:Mini-ITX, MicroATX, ATX
Enclosure Type:Compact Mid-Tower
Case Material:SGCC Steel, Tempered Glass
DIMENSIONS
Height:460mm / 18.11 inches
Width:210mm / 8.27 inches
Depth:428mm / 16.85 inches
Weight:7.5 kg / 16.53 lb
COMPATIBILITY & CLEARANCE
Max CPU Cooler Clearance:165mm
Max GPU Clearance:338 - 368mm
Front Fan & Radiator Clearance:60mm
Vertical GPU Clearance:50.8mm
Cable Management:19 - 23mm
FRONT I/O PORTS
USB 3.2 Gen 2 Type-A:1
USB 3.2 Gen 1 Type-C:1
Headset Audio Jack:1
SMART DEVICE
Fan Channels:3 (10W max per channel)
NZXT RGB Connector:2 (Support up to 40 LEDs)
EXPANSION SLOTS
Standard:7
Vertical:2
DRIVE BAYS
2.5":2 + 1
3.5":2 + 1
FAN SUPPORT
Front:2 x 120mm / 2 x 140mm
Top:1 x 120mm / 1 x 140mm
Rear:1 x 120mm
Filters:All air intakes
RADIATOR SUPPORT
Front:280mm
Top:-
Rear:120mm
FAN SPECS
Model:Aer RGB 2 140mm
Speed:500 - 1,500 ± 300RPM
Airflow:30.39 - 91.19 CFM
Static Pressure:0.17 - 1.52 mm-H₂O
Noise:22 - 33 dBA
Fan Connector:4-pin PWM
FAN SPECS
Model: Aer P 140mm (Case Version)
Speed:1,000 ± 200RPM
Airflow:68.95 CFM
Noise:28 dBA
Fan Connector:3-pin
FAN SPECS
Model:Aer P 120mm (Case Version)
Speed:1,200 ± 200RPM
Airflow:50.42 CFM
Noise:28 dBA
Fan Connector:3-pin
