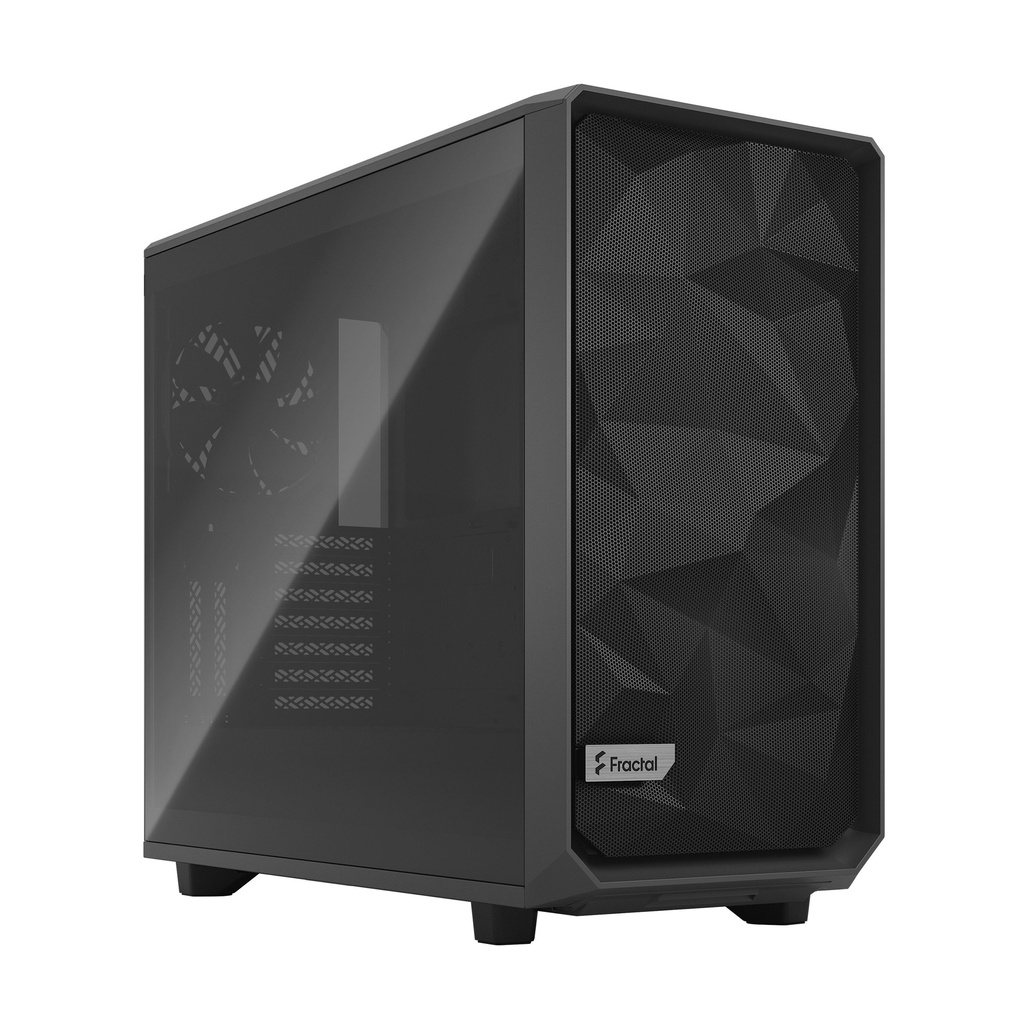

Meshify 2

The new Meshify 2 is a classic evolved with focus on distinctive design, spacious interior and rugged good looks.

• • Iconic angular mesh design provides filtered airflow with a bold, stealth-inspired aesthetic
• • Spacious adaptable interior for motherboards up to (and including) 285 mm E-ATX
• • Support for radiators up to 360 mm (front), 420 mm (top) and 280 mm (base)

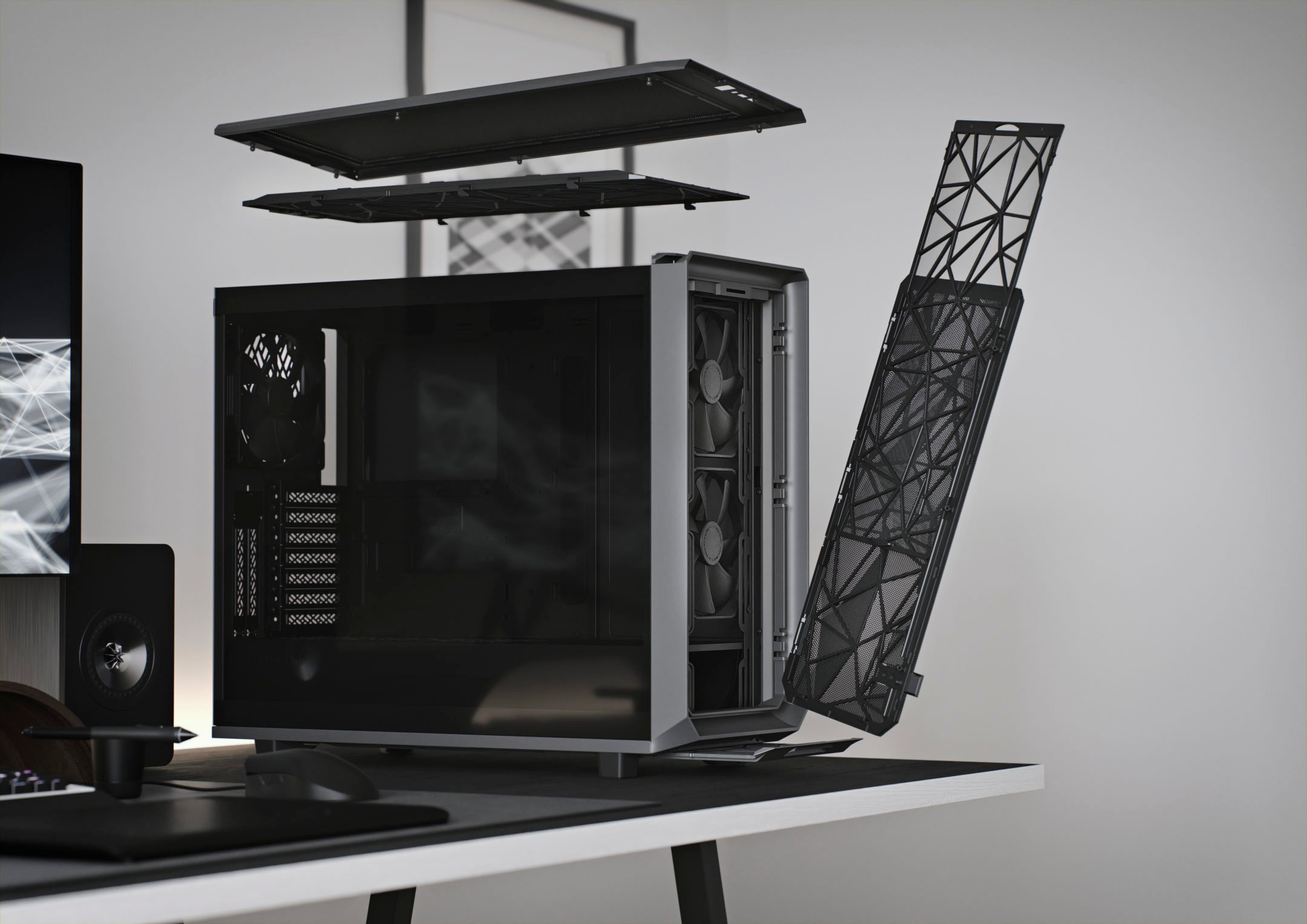

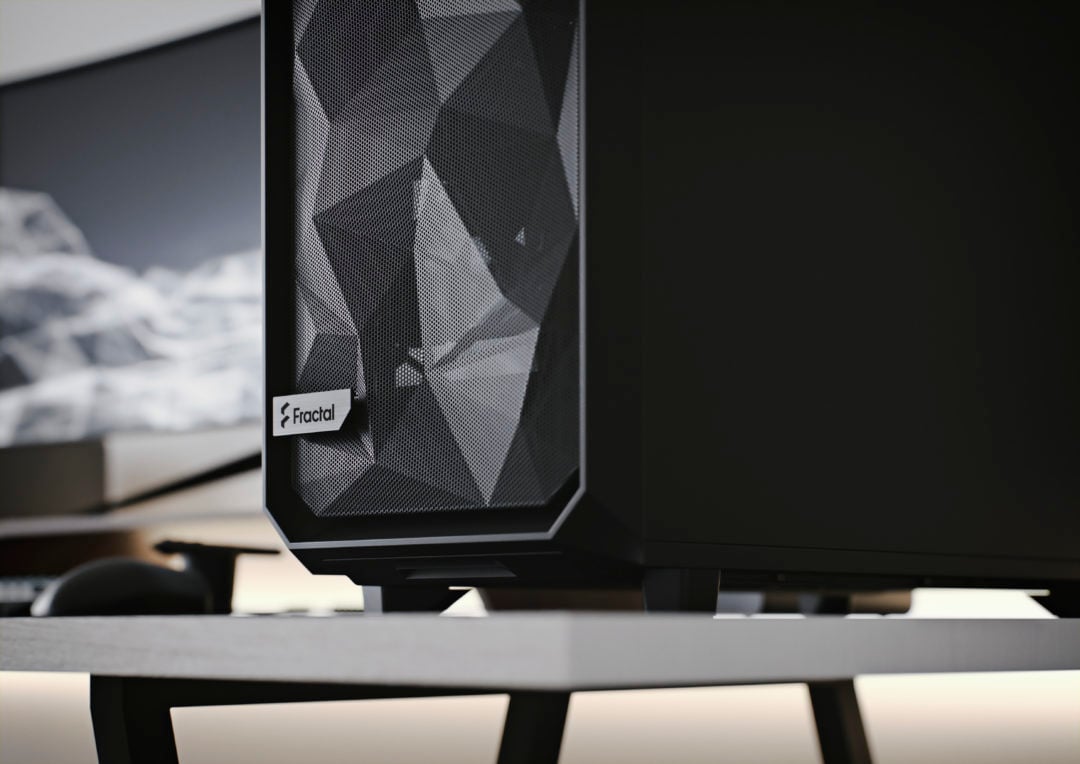

Detachable front filter

• New front nylon filter that can be removed for increased airflow

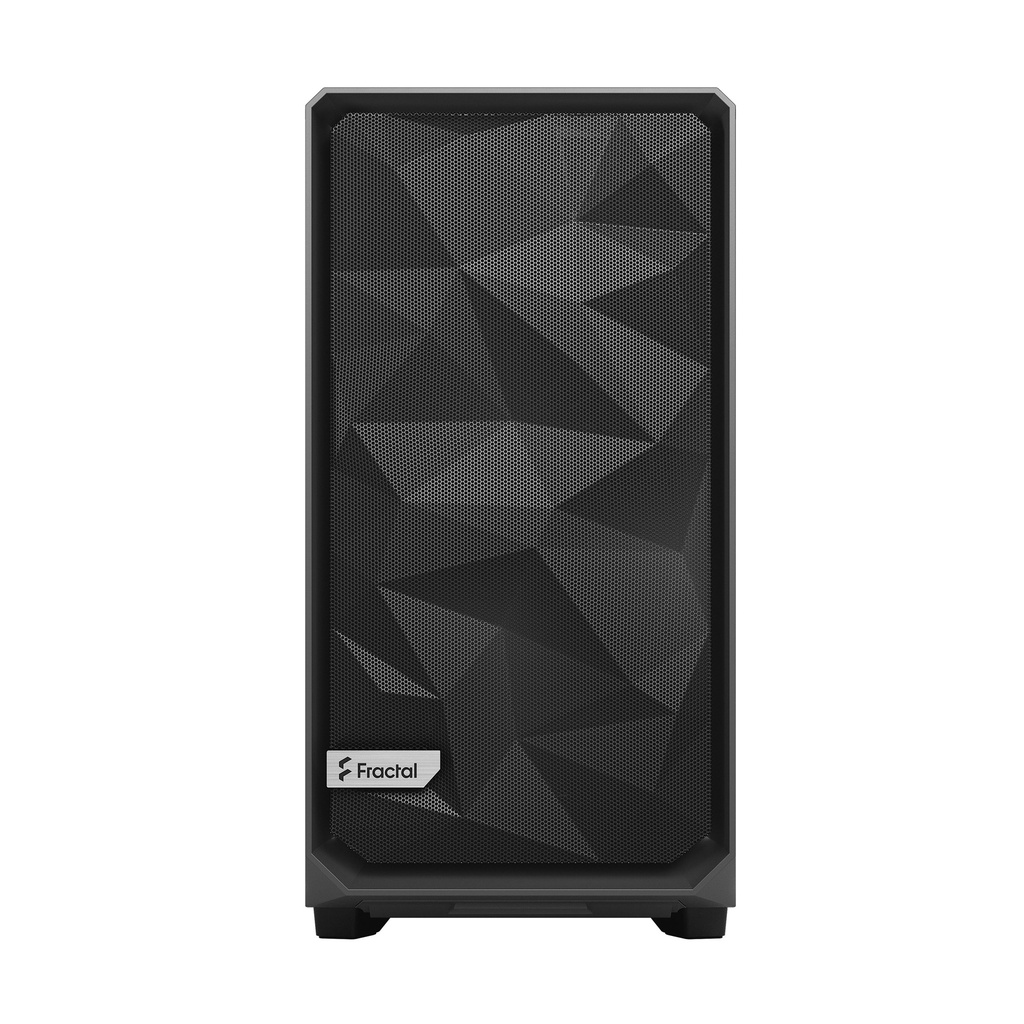

• New front panel design with hinged removable mesh and tether-free bezel for easier access to front fan mounts

• Three Dynamic X2 GP-14 fans come preinstalled with room to expand up to a total of nine fans

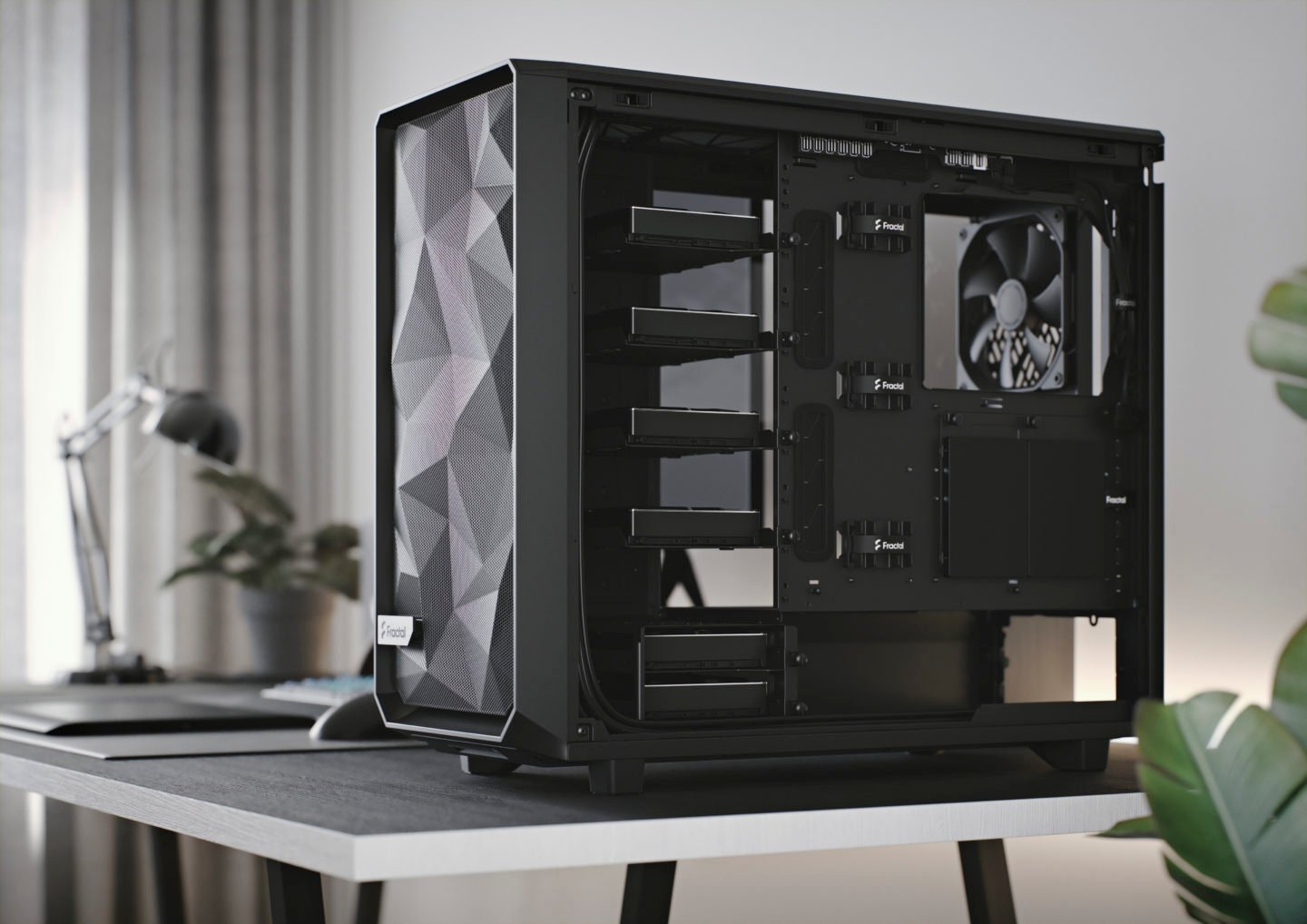

Superlative storage

• Convert to Storage Layout and install up to 11 HDDs alongside four dedicated SSDs mounts (6x SSD/HDD trays, 2x SSD brackets and 1x Multibracket included)

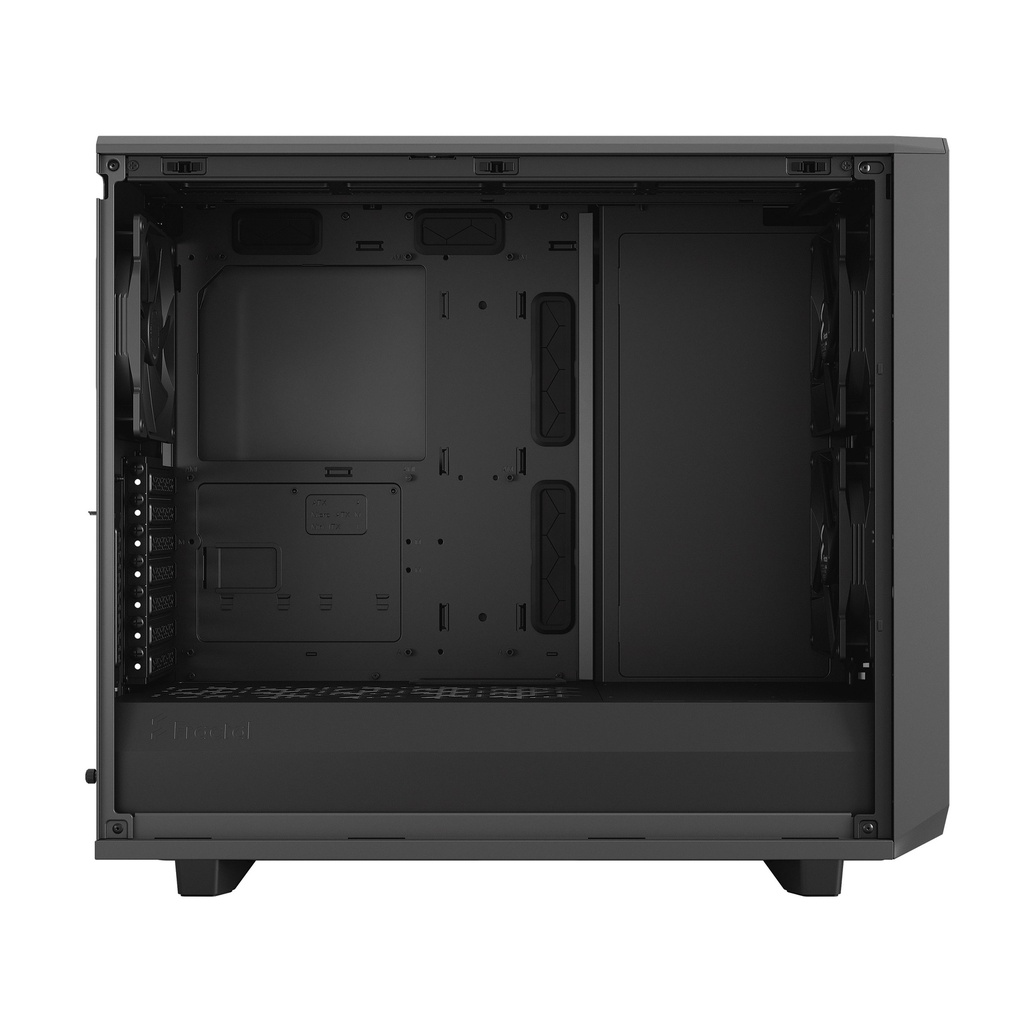

• Transformable interior design utilizing a movable wall for enhancing custom builds

• The included Multibracket lets you convert any unused fan position to an HDD, SSD or pump mount

• Tool-less, top-latching side panels allow quick access while preventing accidental drops

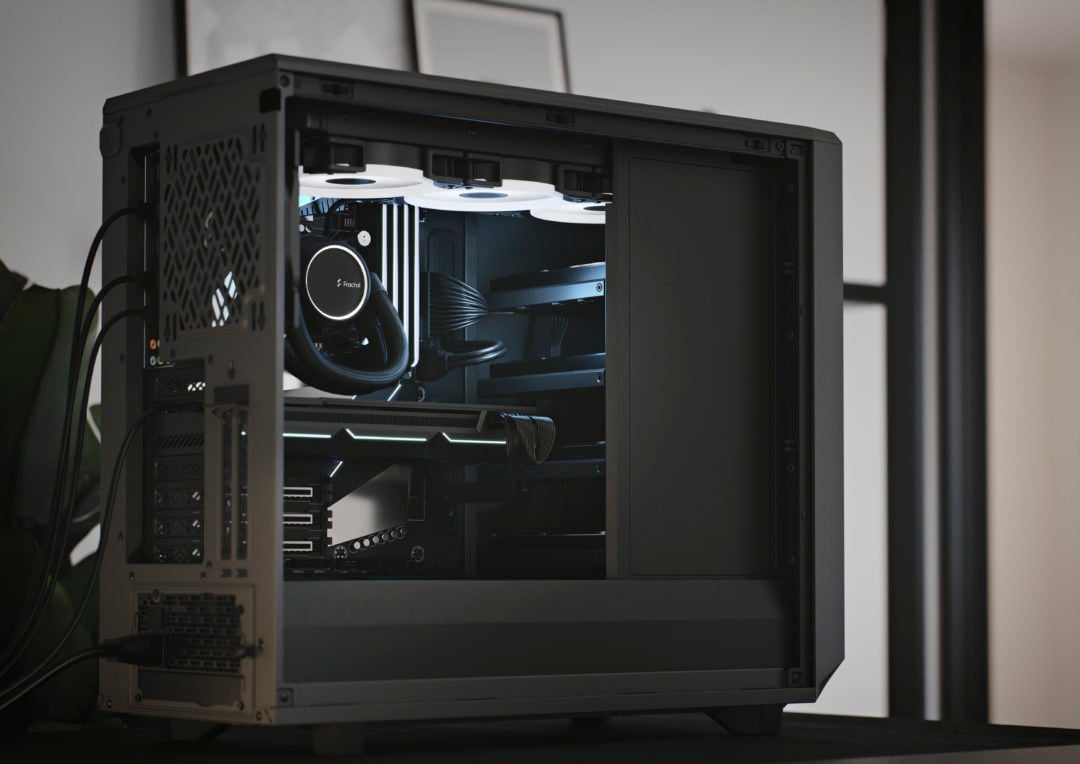

Extremely flexible

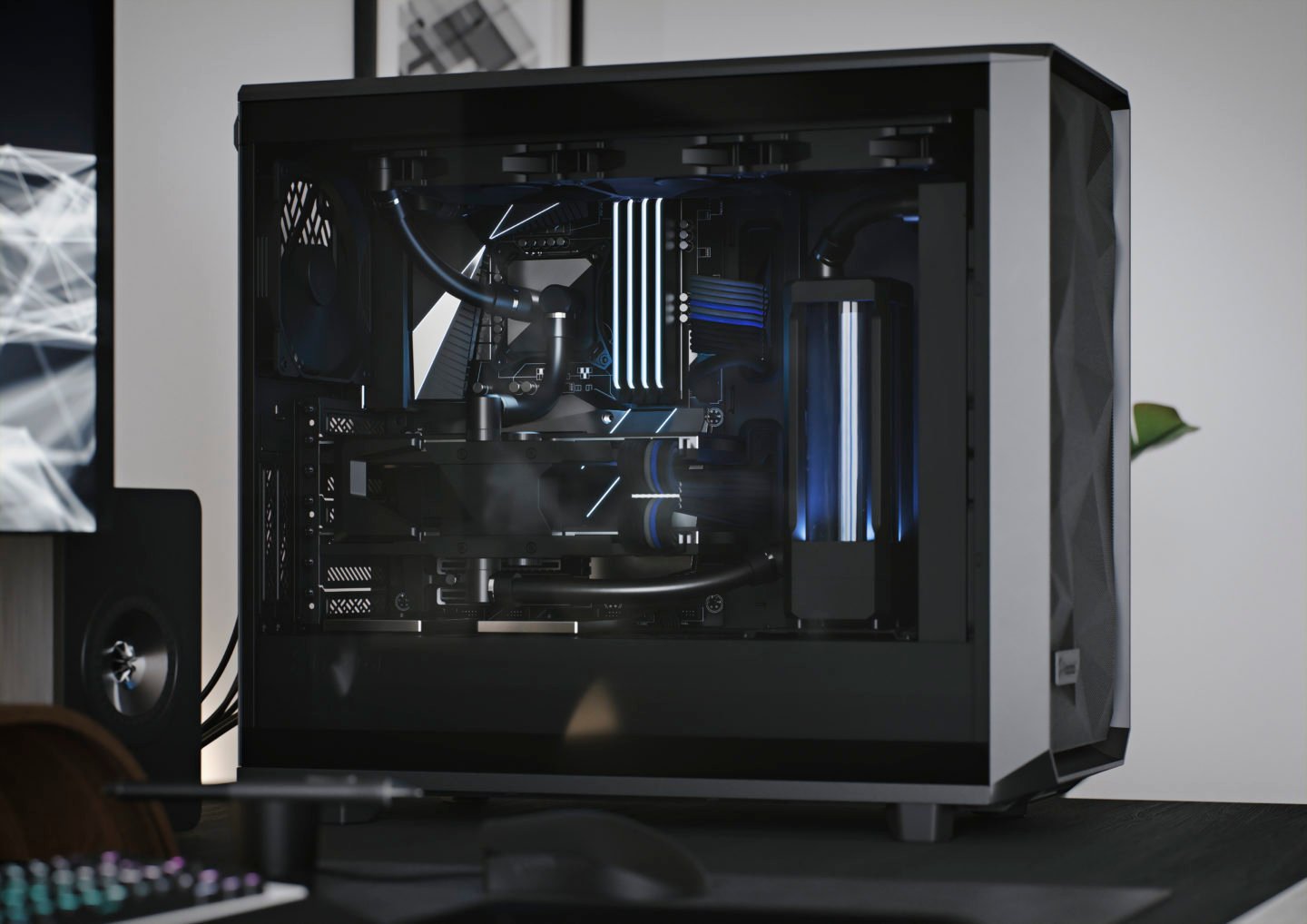

• Fits your custom water loop with large reservoirs and radiators up to 420 mm in the default Open Layout

• Support for radiators up to 360 mm (front), 420 mm (top) and 280 mm (base)

• Easily holds large motherboards up to and including 285 mm E-ATX

• Remove the entire top to build and route with zero hindrance

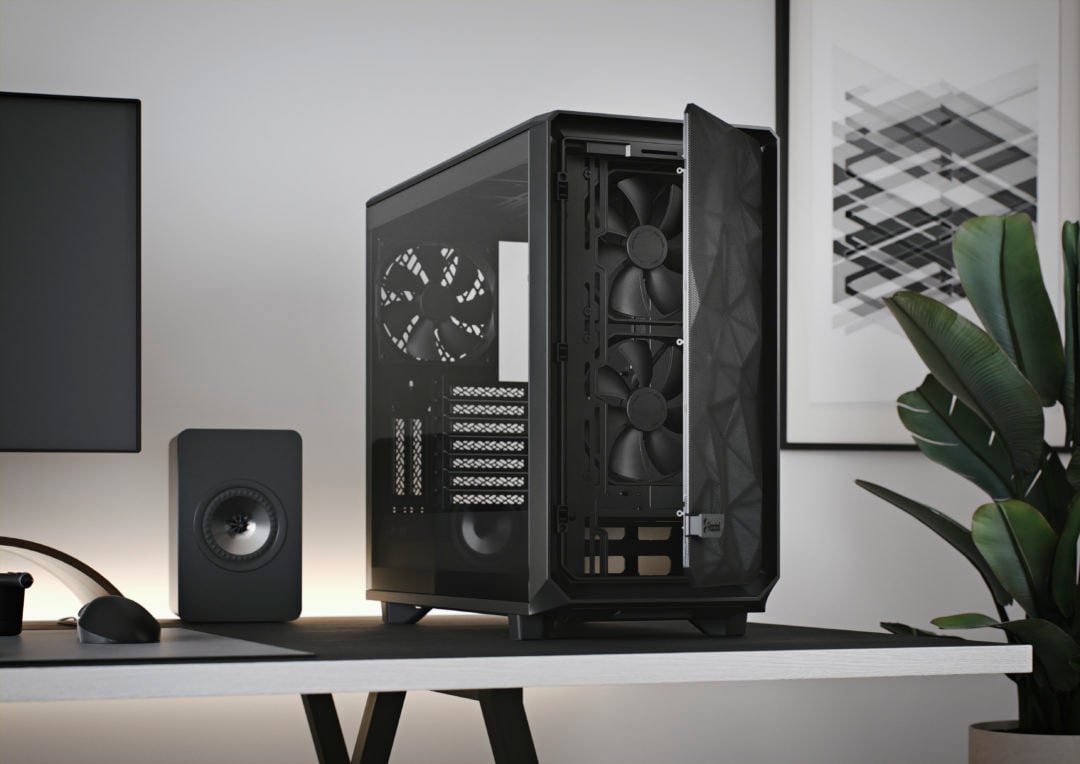

Refined airflow

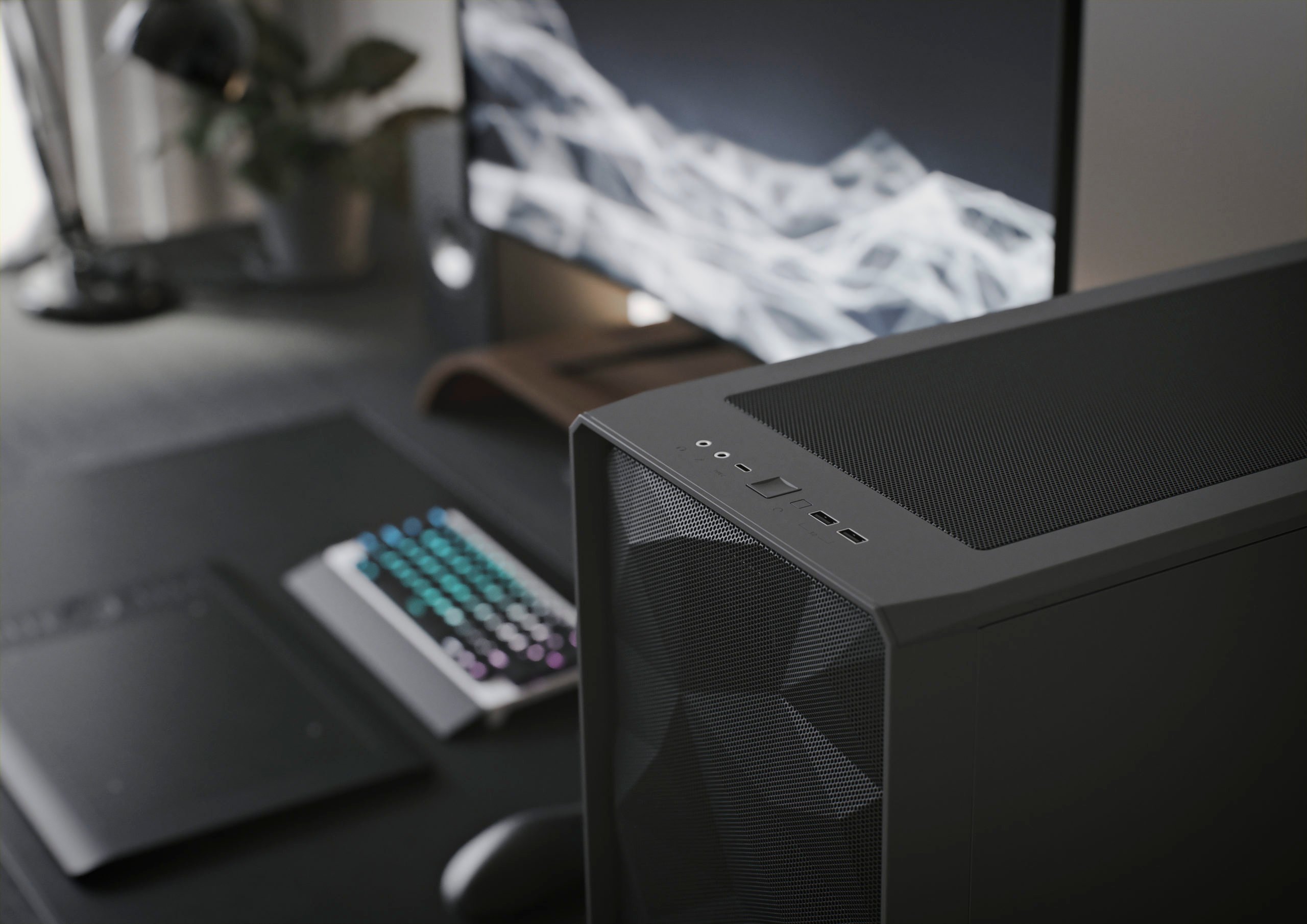

Type-C Interface

USB 3.1 Gen 2 Type-C front I/O offers fast-charging and speeds up to 10 Gbps

Nexus+ 2 fan hub

Ultra-slim Nexus+ 2 fan hub connects up to three PWM fans and six 3-pin fans

Versatile Multibracket

Versatile Multibracket that converts any unused fan position to an HDD, SSD or pump mount

Cable management

Detachable PSU cable shield and integrated cable guides with velcro straps further simplify cable management behind the board

Specifications

• 3.5"/2.5" Universal drive mounts6 included, 14 positions total + 1 Multibracket
• Dedicated 2.5" drive mounts2 included, 4 positions total
• Expansion slots7 + 2

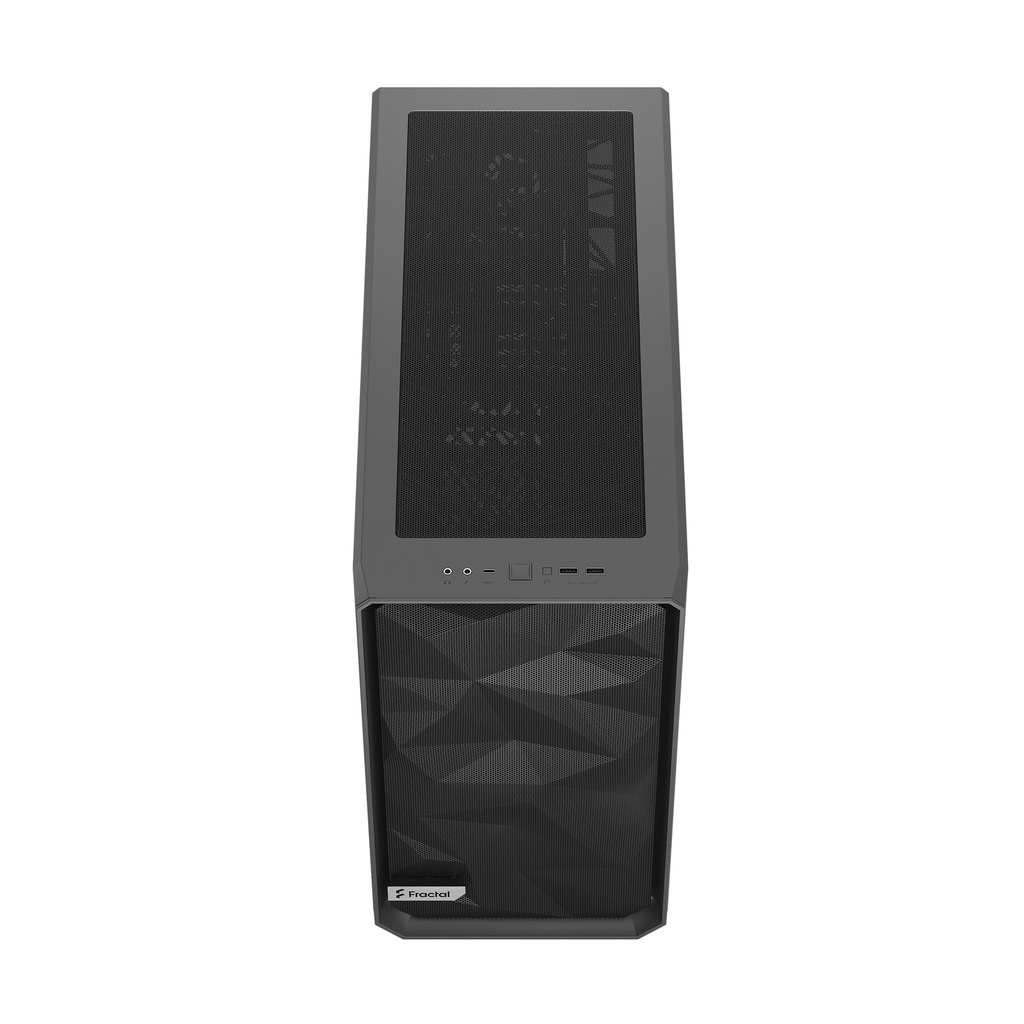

• Front interface1x USB 3.1 Gen 2 Type-C, 2x USB 3.0, Audio I/O, Power button, Reset button
• Total fan mounts9x 120/140 mm
• Front fan3x 120/140 mm (2x Dynamic X2 GP-14 included)
• Top fan3x 120/140 mm
• Rear fan1x 120/140 mm (1x Dynamic X2 GP-14 included)
• Bottom fan2x 120/140 mm
• Dust filtersTop, front and bottom
• Fixed velcro strapsYes
• Cable routing grommetsYes
• Captive thumbscrewsHDD, SSD and PSU brackets
• Left side panelSteel
• Right side panelSteel

Compatibility

• Motherboard compatibilityE-ATX (max 285 mm)/ ATX / mATX / Mini-ITX
• Power supply typeATX
• PSU max length250 mm (with HDD cage installed)
• GPU max lengthOpen layout: 476 mm (451 mm w/ front fan) - Storage layout: 298 mm
• CPU cooler max height185 mm
• Front radiatorUp to 360/280 mm
• Top radiatorUp to 360/420 mm
• Rear radiator120 mm
• Bottom radiatorUp to 240/280 mm
• Cable routing space30 mm

Dimensions

• Case dimensions (LxWxH)542 x 240 x 474 mm
• Case dimensions w/o feet/protrusions/screws541 x 240 x 454 mm
• Package dimensions (LxWxH)634 x 542 x 324 mm
• Net weightSolid: 10.1 kg TG: 10.5 kg
• Gross weightSolid: 12.8 kg TG: 13.2 kg
• Volume58.95 liters
