MASTERBOX MB511 RGB
READY, SET, GAME.
Mesh Front Panel
RGB LED Fans and Lighting Control
Performance Intakes

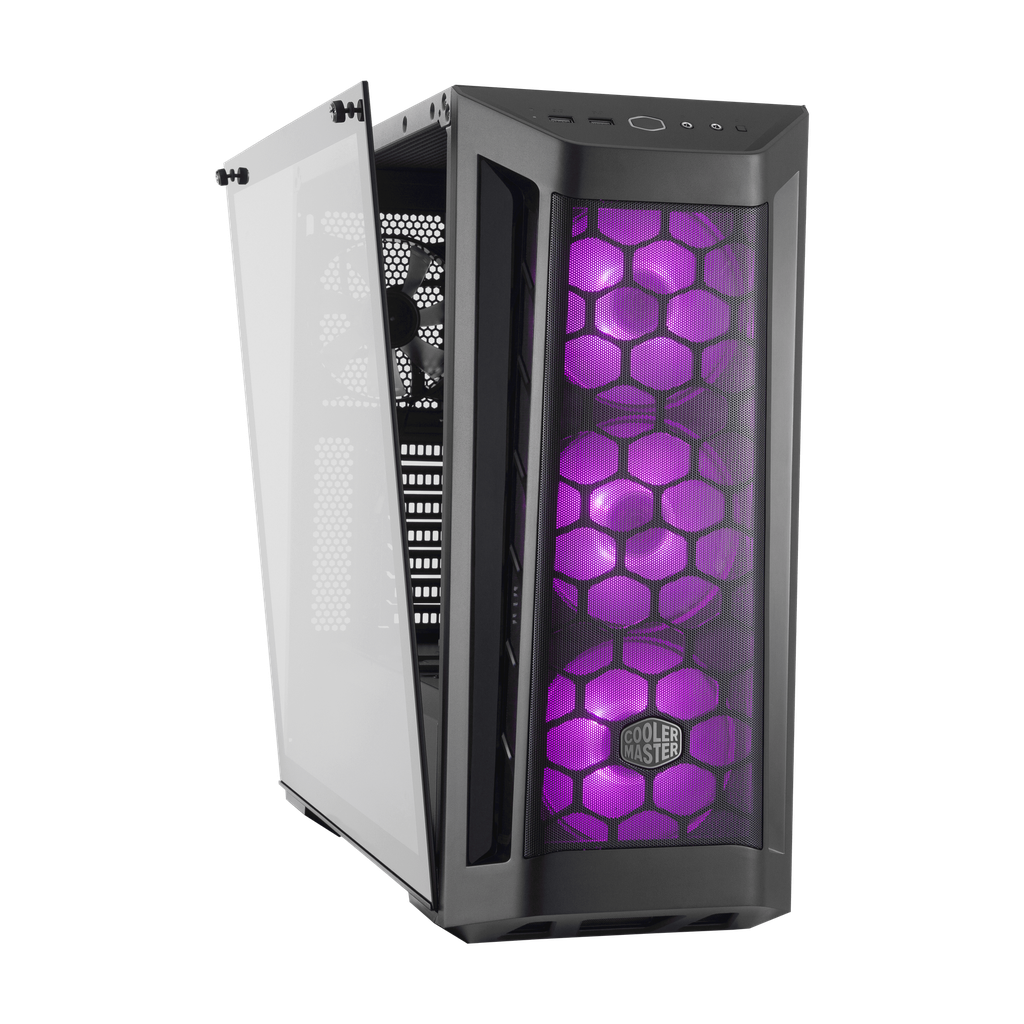

Edge-To-Edge Tempered Glass Side Panel
Support for a Total of 6 Fans and Water Cooling
Graphics Card Support Up to 410mm
MESH FRONT PANEL
The mesh front panel offers efficient airflow for demanding systems.
PERFORMANCE INTAKE
Large intakes on each side of the front panel pay tribute to high performance cars.
RGB LED FANS AND LIGHTING CONTROL
Three 120mm RGB LED fans in front are pre-installed to create an amazing lighting effect.
One RGB controller is included in the accessory pack. If your motherboard does not support the RGB control function, you can connect the RESET button and control the RGB lighting directly from the I/O panel.
EXCELLENT THERMAL PERFORMANCE
Optimized airflow due to the semi-meshed front panel and ventilation holes on top of the case.
FAN AND RADIATOR SUPPORT
Front: Three 120mm or two 140mm* fans and up to a 360mm radiator with a maximum thickness of 50mm without fans.
Top: Two 120mm or two 140mm fans and supports a 120mm or a 240mm radiator.
Rear: One 120mm fan or radiator. All to ensure you don’t have to compromise on performance.
* 2 x 140mm fans in front can only be mounted behind the front plate
EDGE-TO-EDGE TEMPERED GLASS SIDE PANEL
Showcase your build and system lighting effect through the 4mm-thick tempered glass side panel. The side panel bracket hinges on an angle during removal, while two "captive" screws are held in place with rubber so they are not misplaced.
SSD BRACKET
Mount an extra SSD on the PSU shroud for more storage.
EXPANDING THE POSSIBILITIES

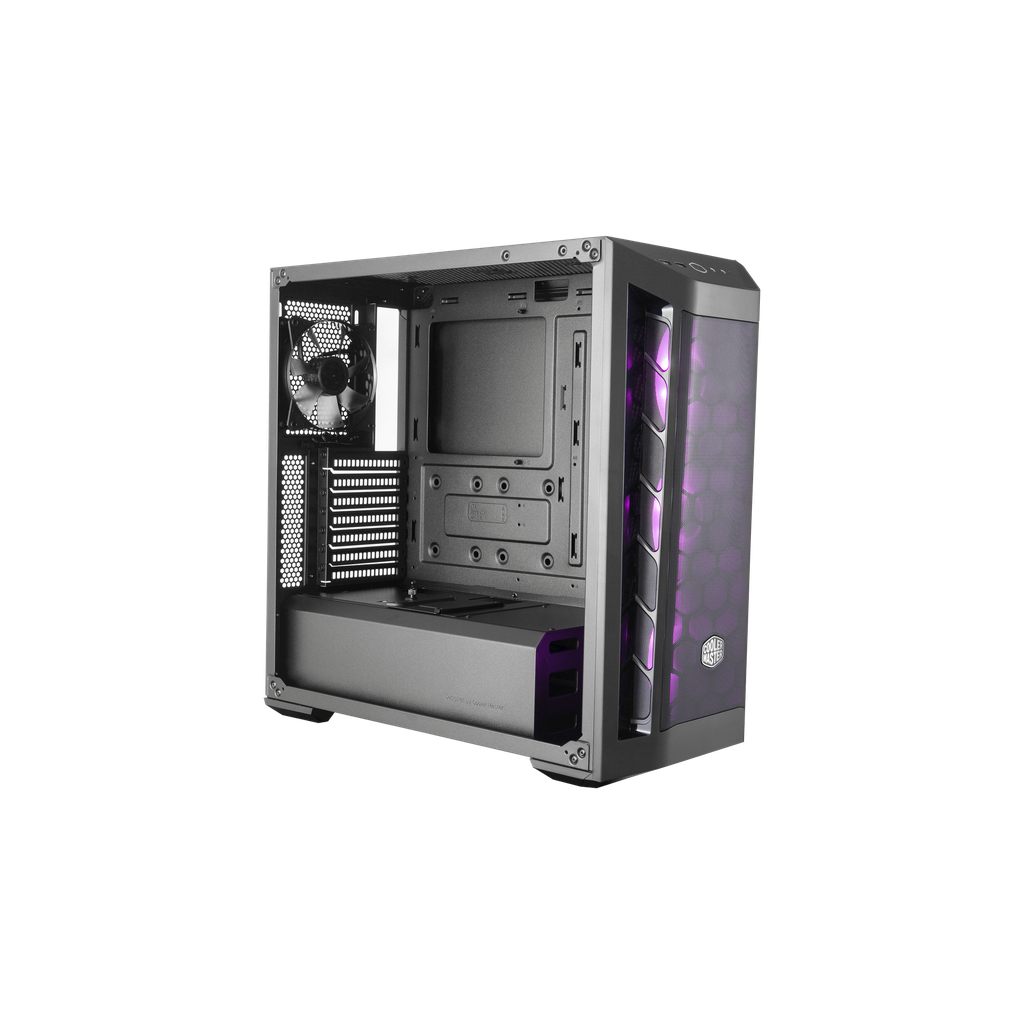

The spacious interior fits all standard motherboards for your gaming needs.
ATX MICRO-ATX MINI-ITX
MAIN COMPONENTS CLEARANCE
The MB511 RGB case supports CPU Coolers up to a height of 165mm, Graphic Cards up to a length of 410mm and Power Supplies up to a length of 180mm.
| Model Number | MCB-B511D-KGNN-RGB |
|
|
| Materials | Steel, Plastic, Tempered Glass |
|
| Dimensions (L x W x H) | 496 x 217 x 469 mm |
|
| Motherboard Support | ATX, Micro ATX, Mini ITX |
|
|
| 2.5" / 3.5" Drive Bays (Combo) | 2 |
|
|
| I/O Panel | 2x USB 3.0, Audio In & Out (Supports HD Audio) |
|
| RGB Control | RGB controller included, 1 to 3 RGB splitter cable included |
|
| Pre-installed Fans - Front | 3x 120mm RGB Fan |
|
| Pre-installed Fans - Rear | 1x 120mm |
|
| Fan Support - Top | 2x 120mm, 2x 140mm |
|
| Fan Support - Front | 3x 120mm, 2x 140mm |
|
| Fan Support - Rear | 1x 120mm |
|
| Radiator Support - Front | 120mm, 140mm, 240mm, 280mm, 360mm |
|
| Radiator Support - Top | 120mm, 240mm |
|
| Radiator Support - Rear | 120mm |
|
| Clearance - CPU Cooler | 165mm / 6.49" |
|
| Clearance - PSU | 180mm/7.1" |
|
| Clearance - GFX | 410mm/16.1" |
|
| Cable Routing - Behind Motherboard Tray | 19mm / 0.74" |
|
| Dust Filters | Front, Top, Bottom |
|
| Power Supply Support | Bottom Mount, ATX |
|
|
|
|
