MASTERBOX TD500 ARGB
SHOW OFF YOUR STYLE
Crystalline Panels
Concealed Ventilation
ARGB Lighting System
Edge to Edge Acrylic Side Panel
COLOR, CUT, & CLARITY
The MasterBox TD500 ARGB approaches PC lighting in a completely new perspective. The front and side panels feature a crystalline structure, designed to uniquely interact with hardware lighting depending on the viewing angle. To make the most of the panels’ structure, three ARGB fans come pre-installed behind the front panel.

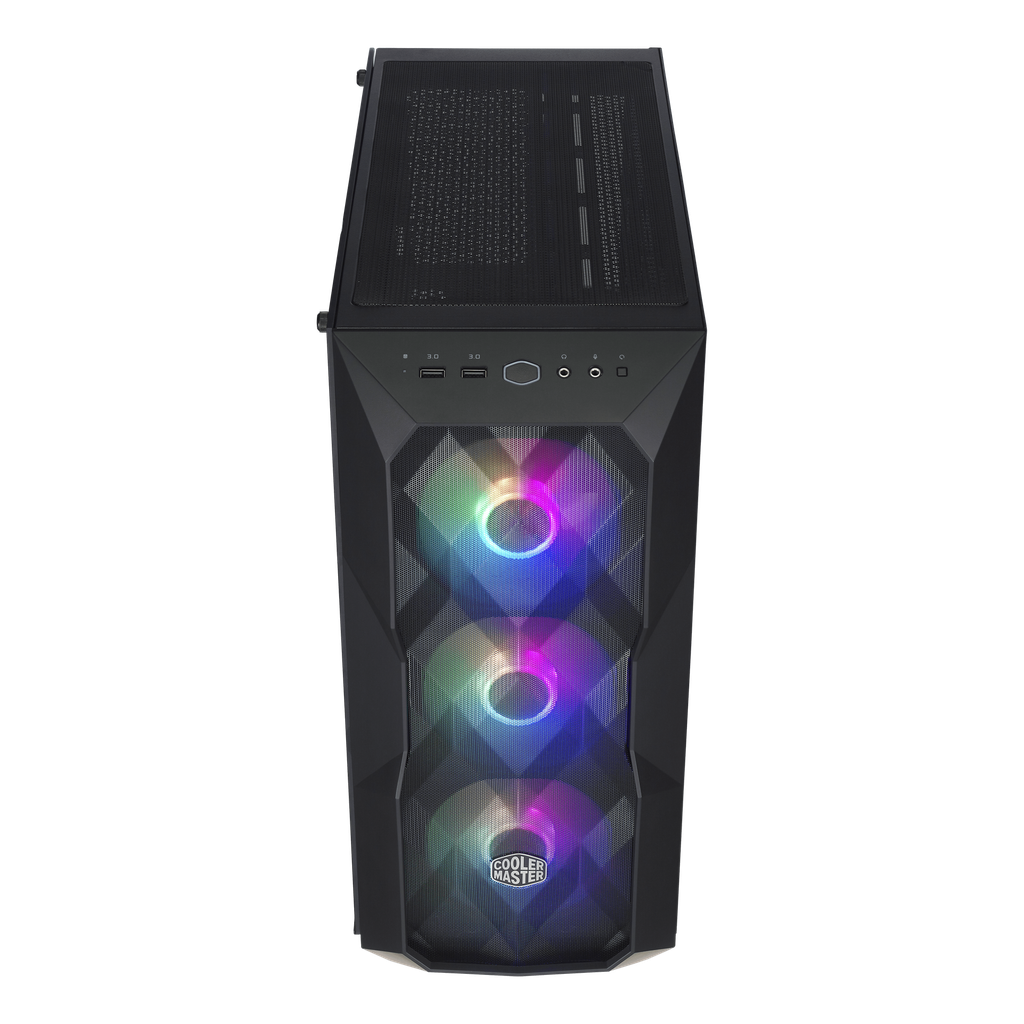

CRYSTALLINE PANELS
The front and side panels feature a three-dimensional, crystalline design that refracts light differently depending on the viewing angle.
CONCEALED VENTILATION
The entire perimeter of the front panel is ventilated with mesh, placed behind the front bezel and hidden out of view.

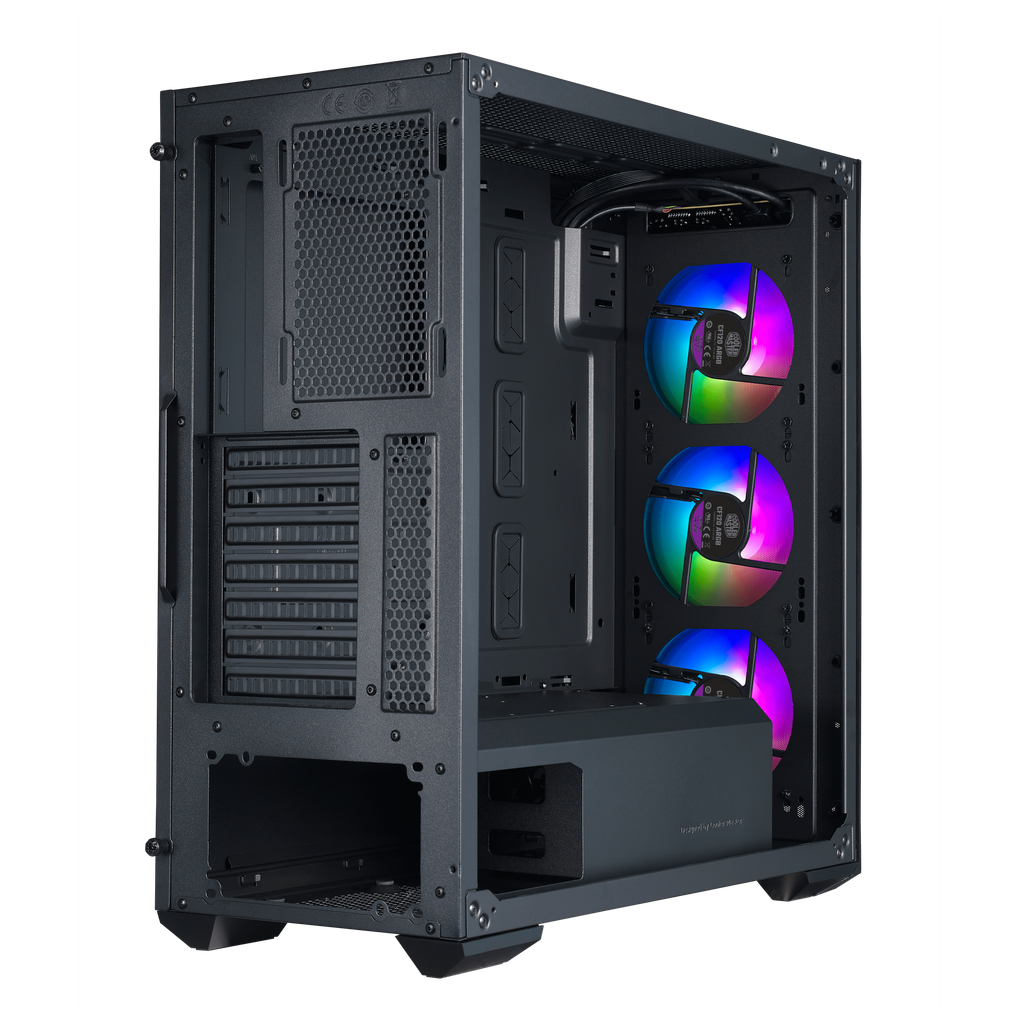

THREE CF120 ARGB FANS INCLUDED
Pre-installed CF120 ARGB fans provide ample airflow, ensuring low temperatures, high performance, and eye-catching aesthetics during even the most intense gaming sessions.

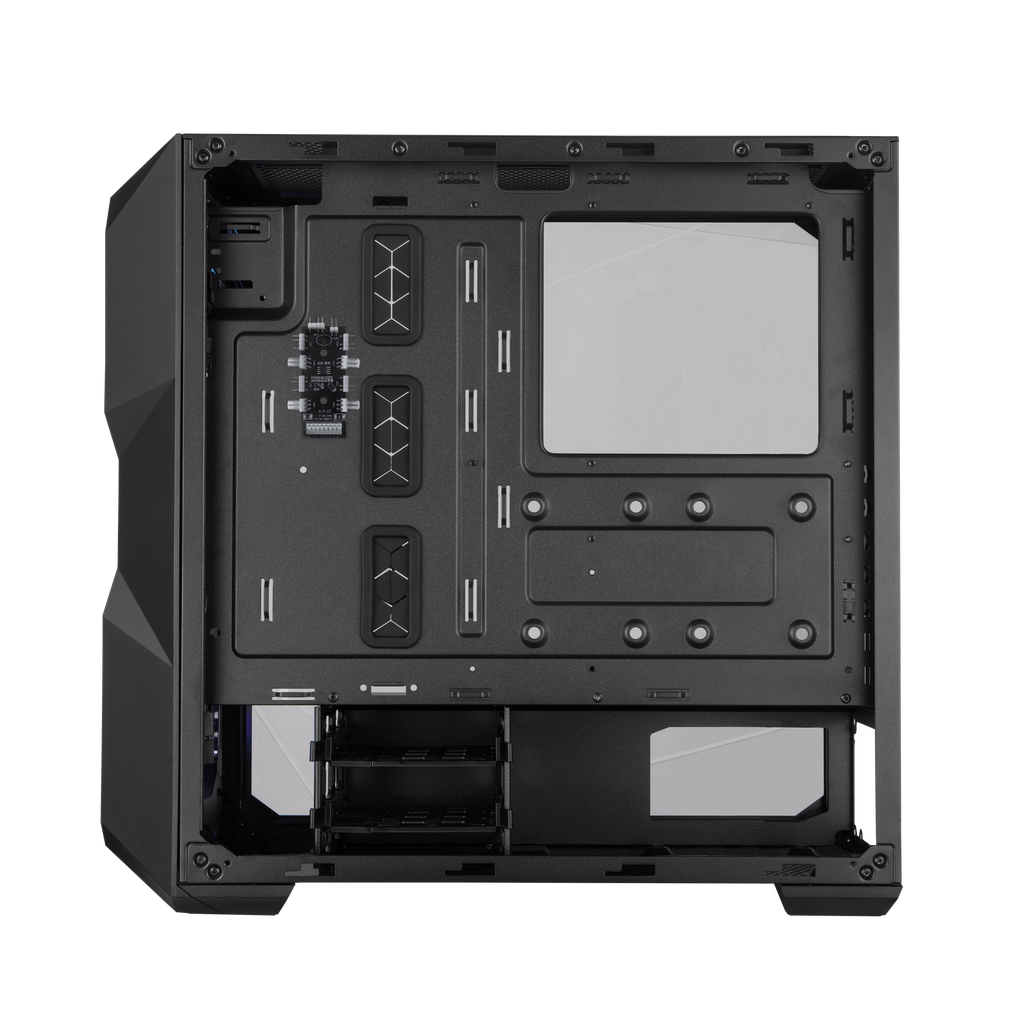

ARGB/FAN HUB INCLUDED
The included controller allows users to manage systems lighting independently from the hardware configuration and provides the user with 4 additional fan headers in case of need.

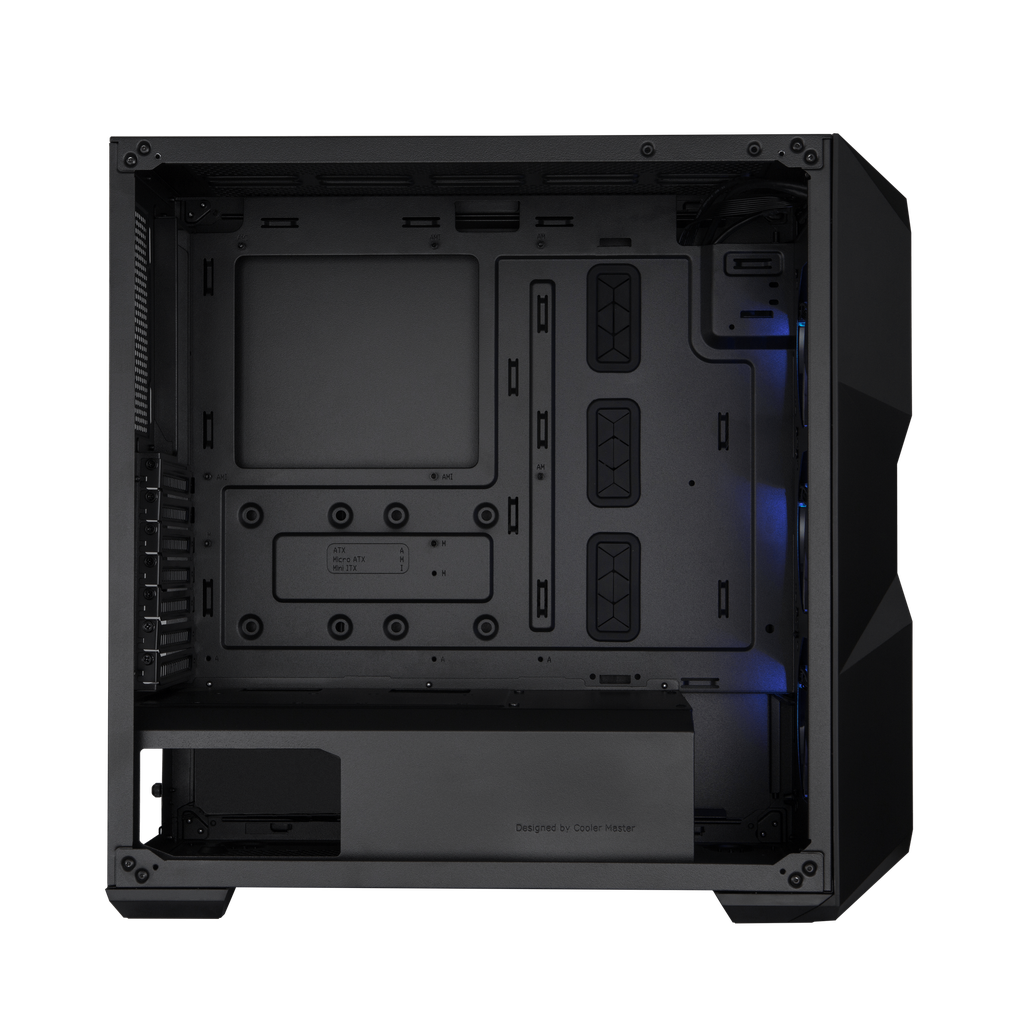

EDGE-TO-EDGE ACRYLIC SIDE PANEL
Gaming hardware, cooling components, and the pure pride of the builder is shown in panoramic view through an edge-to-edge acrylic side panel.
VERSATILE COOLING OPTIONS
Support for up to seven 120mm fans and dual 360mm radiators on the top and front panel ensure that even the most extreme systems stay cool.
| Model Number | MCB-D500D-KANN-S01 |
|
|
|
|
| Materials - Exterior | Steel, Plastic |
|
| Materials - Left Side Panel | Acrylic |
|
| Dimensions (L x W x H) | 493 x 217 x 469mm (incl. Protrusions), 429.5 x 205 x 447mm (excl. Protrusions) |
|
| Motherboard Support | Mini ITX, Micro ATX, ATX, E-ATX*, (*up to 12" x 10.7" motherboards, may impact cable management feature) |
|
|
|
| 2.5" / 3.5" Drive Bays (Combo) | 2 |
|
| 2.5" Drive Bays | 4 (2+2 combo) |
|
| I/O Panel | 2x USB 3.2 Gen 1 (USB 3.0), 1x 3.5mm Audio Jack, 1x 3.5mm Mic Jack, 1x ARGB Hub |
|
| Pre-installed Fans - Front | 3x 120mm CF120 ARGB |
|
| Pre-installed Fans - Rear | 1x 120mm (Black) |
|
| Fan Support - Top | 3x 120mm, 2x 140mm |
|
| Fan Support - Front | 3x 120mm, 2x 140mm |
|
| Fan Support - Rear | 1x 120mm |
|
| Radiator Support - Top | 120mm, 240mm, 360mm, (44mm max motherboard component height) |
|
| Radiator Support - Front | 120mm, 140mm, 240mm, 280mm, 360mm |
|
| Radiator Support - Rear | 120mm |
|
| Clearance - CPU Cooler | 165mm / 6.49" |
|
| Clearance - PSU | 180mm/7.08" |
|
| Clearance - GFX | 410mm/16.1" |
|
|
| Dust Filters | Front, Top, Bottom |
|
| Power Supply Support | Bottom Mount, ATX |
|
